Rackmount chassis Server case 19 inch ATX Micro atx 1.3U

Drives1 * 5.25" + 1 * 3.5"(Ext.) + 3 * 3.5" (Int.)

Motherboard Size12 * 9.6 (ATX, microATX)

Dimension19.00 * 21.25 * 2.30 * inches / 482.6 * 540 * 58.4 mm

Inquiry

DESCRIPTION

VIDEO

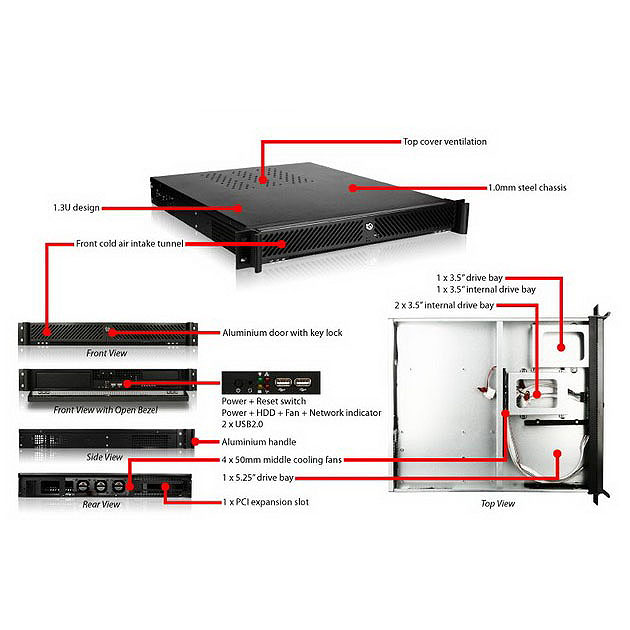

1.3U Leading Rackmount ATX Chassis support 1U single Power Supply

Better cooling with 4 x 50mm fan wall
1 x 5.25" + 1 x 3.5" (ext.) + 3 x 3.5(int.) drive bays
2 x front access USB 2.0

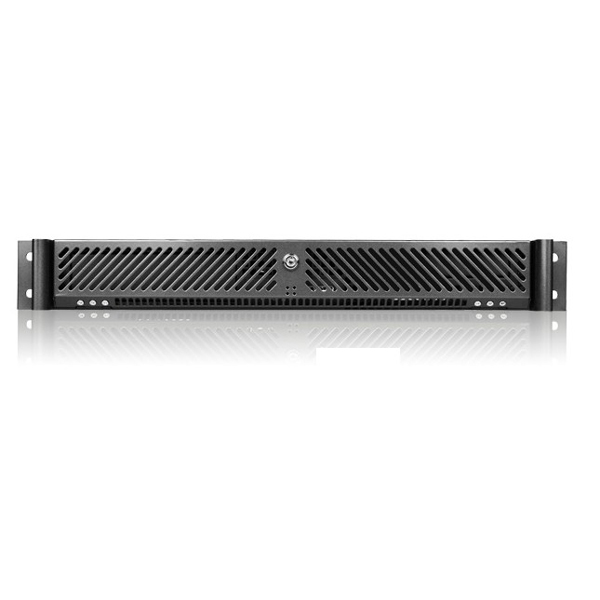

Unique stylish aluminum front door with keylock for security
Datasheet&drawing

Introduction

This 1.3U rackmount chassis Its unique thermal cooling solution including the front air intake tunnel and 4x50mm cooling fan can cool the system down while it runs at optimal level. The 1.3U form factor enables standard I/O backplane for all ATX motherboards. 1x 5.25" and 1 x3.5" front bay drives, 3 x internal 3.5" provide the server or cluster system supreme flexibility and performance

Model Number	KI-N1350
Dimension (WHD)	19" x 2.3" x 21.25"/ 482 x 58.4 x 540 (mm)
Motherboard Size	12" x 9.6" (ATX,Micro ATX or Mini ITX)
Drive Bays	1 x 5.25" + 1 x 3.5"(ext.) + 3 x 3.5" (int.)
Indicators	LEDs for Power & HDD
Switches	1 x Power +1 x Reset
PSU Type	1U single PSU
Expansion Slots	1slot full height riser card
Material of Front Bezel	Heavy-duty & Rugged SGCC steel 1.0mm
Material of Handle	Aluminum
Material Construction	Heavy-duty & Rugged SGCC steel 1.0mm
Sliding rail	26" ball bearing sliding rail (option)
Color of Main Chassis	Black
Front Connector	2 x 2.0 USB
Fan:	4 x 5cm fan (option)
Packing size CBF / CBM	2.5 / 0.07
Packing N.W / G.W	5KGS / 6.5KGS
Notes
