Eesktop case eight hotswap 6Gbs micorATX mini-itx DN8
KI-DN8 datasheet&drawing

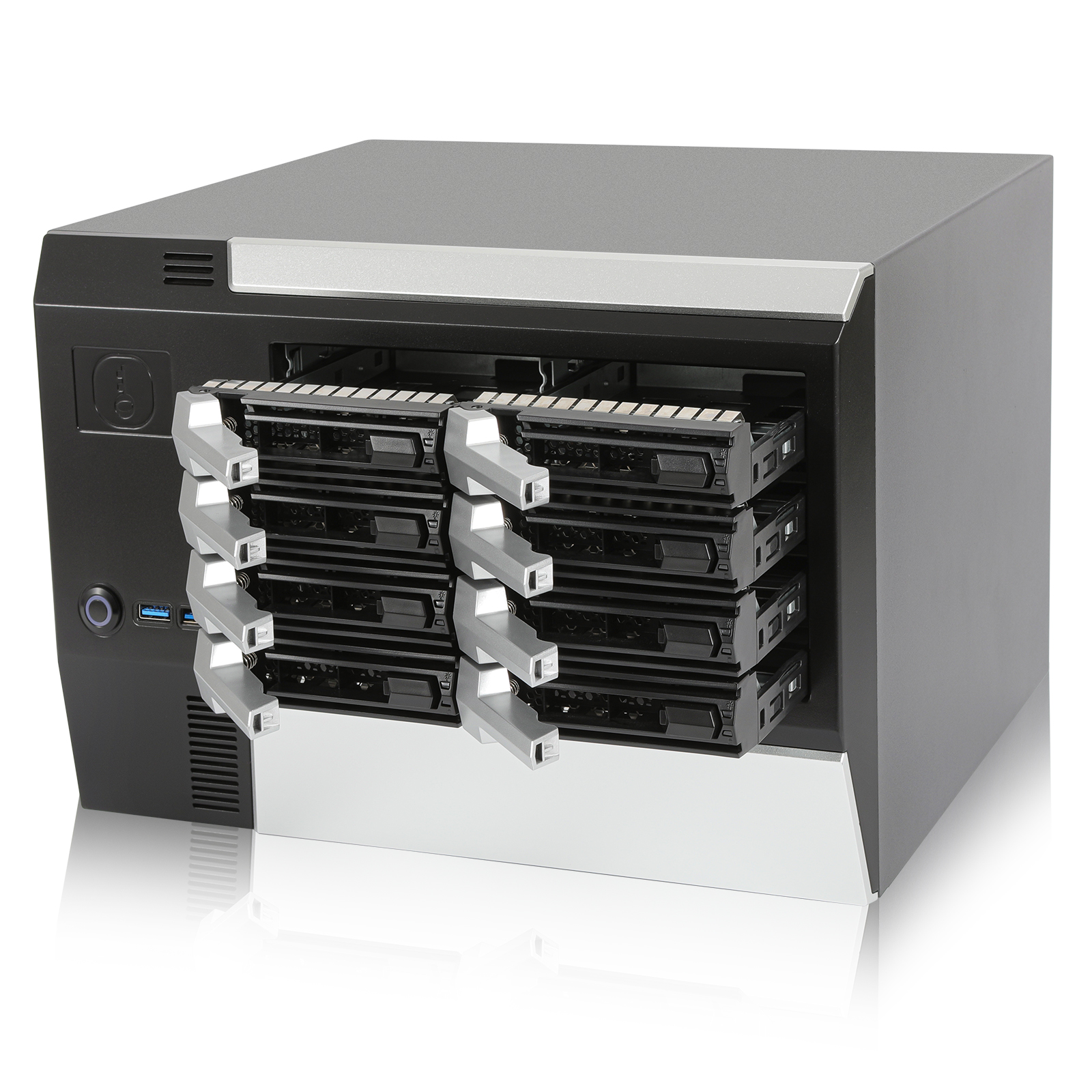

Compact 8x3.5" Bay Tooless Hotswap micro ATX external USB3.0 Desktop enclosure
Compact 8x3.5" Bay Tooless Hotswap micro ATX external USB3.0 Desktop enclosure

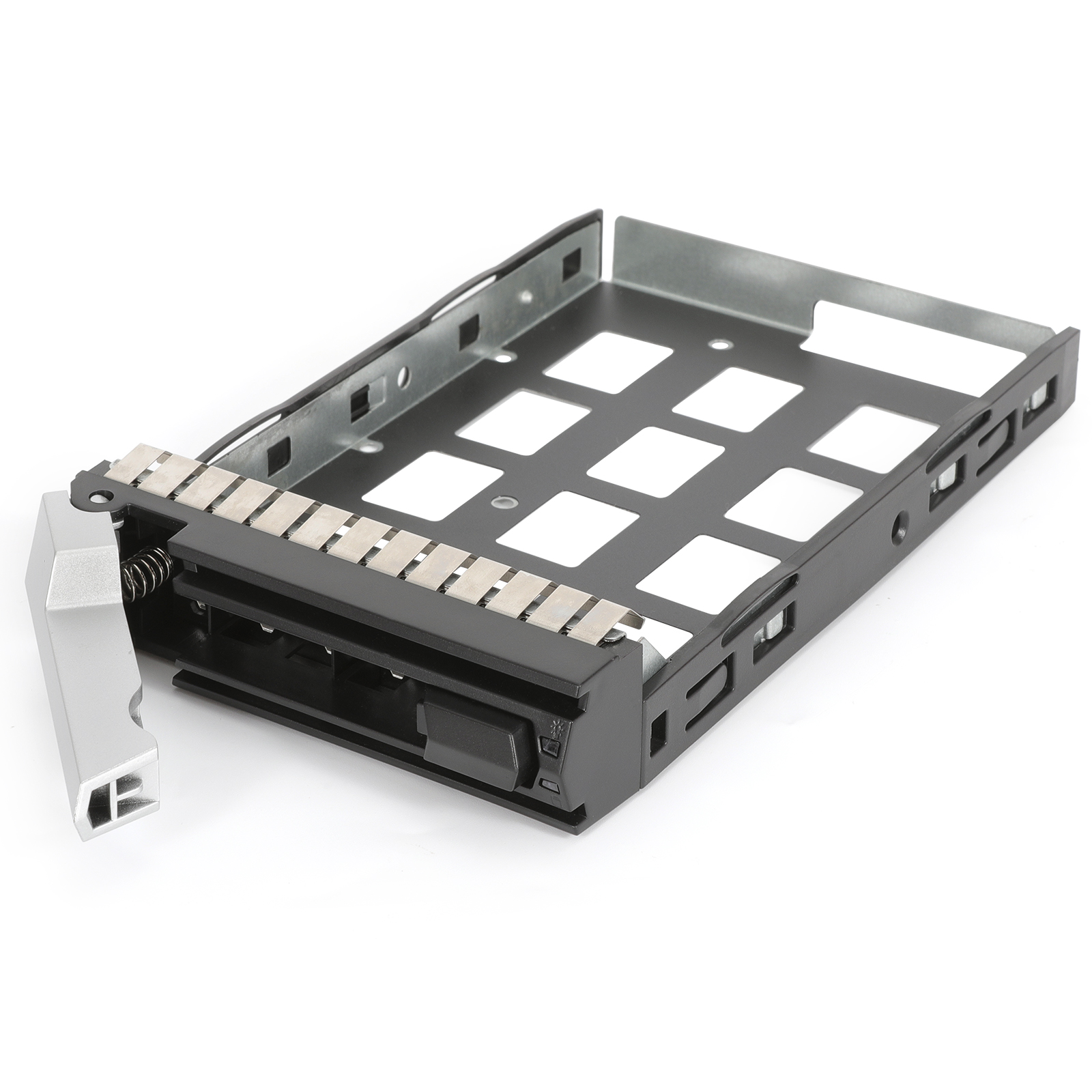

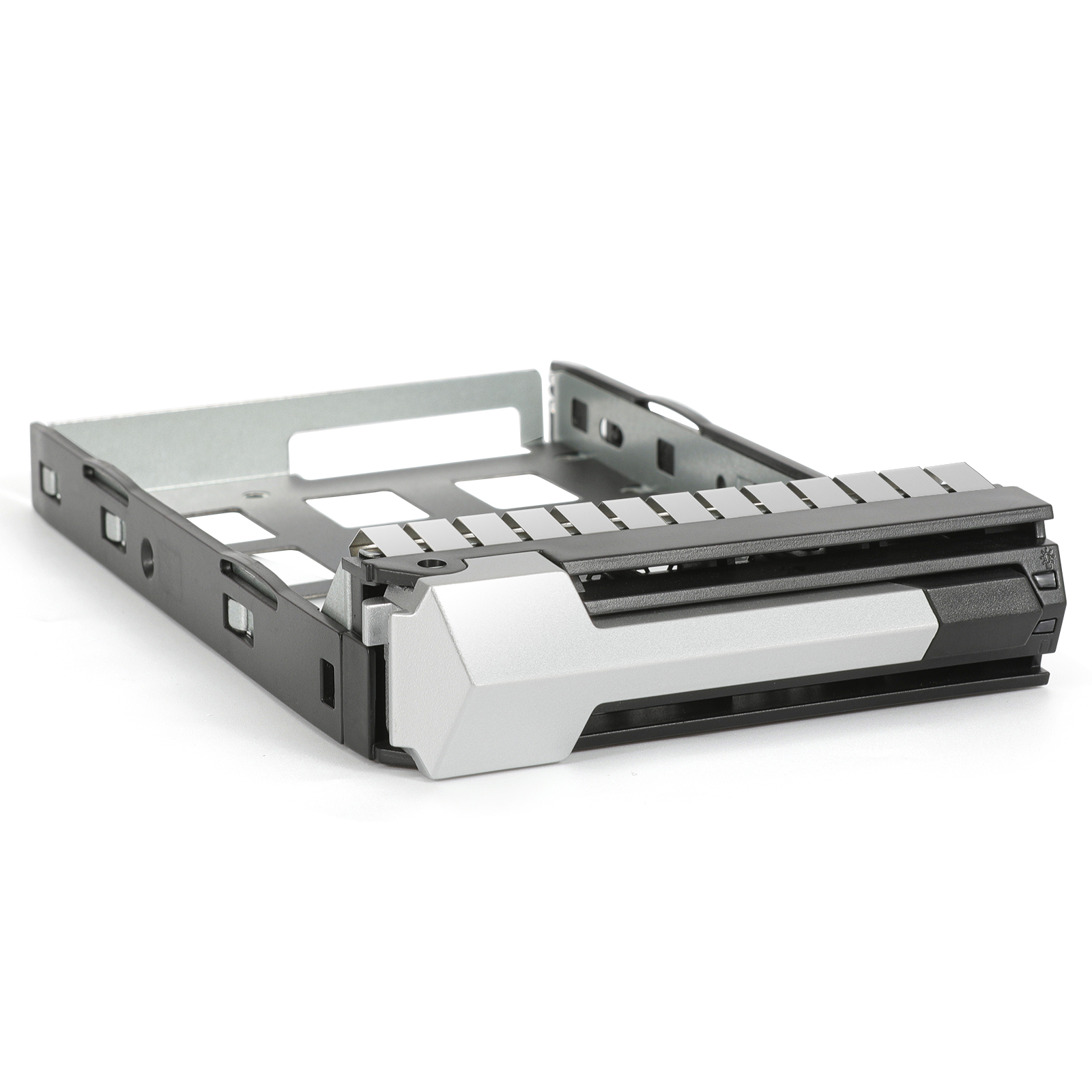

- 8 hotswappable 3.5" or 2.5" bays + 1 x SSD
- 1U Flex PSU
- 2 x USB 3.0 in front
- High end aluminum bezel+1.2mm steel for chassis
- Horizontal or Vertical desktop convertible
- Supports 6.0 Gb/s hard drives
The DN8 designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server for home, With storage capacity up to 8 TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.
| Model Number | KI-DN8 |
| RoHS Compliance | Yes |
| Form factor | Horizontal or Vertical |
| Standard Drive Bays | Hot swap 8 * 3.5" or 2.5 (can mix) +1 x SSD |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power |
| Expansion Slots | 4 x full height + 2 x com |
| Material of Front Bezel | Aluminum 1.2mm |
| Support Video card | Full height L=220mm (max) |
| Material of Main Chassis | SGCC 1.2mm |
| Color of Main Chassis | Black |
| Front Connector | 2 x USB 3.0 |
| Motherboard Size | 9.6 x 9.6 ( microATX, mini-itx) |
| Cooling Fan | 2 x 80mm |
| N.W / G.W | 8.1 / 9.7KGS |
| Dimension | 13.38 * 12.00 * 8.66 inches / 340*305*220mm |
