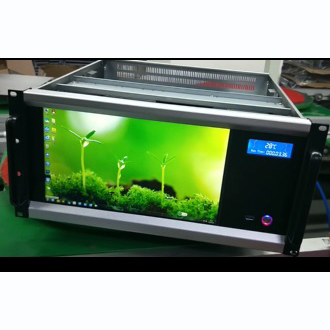

Server case rackmount chassis 19 inch EATX 5U touch LCD
5U Compact Rackmount touch LCD chassis support ATX Power Supply
Introduction KI-N548LT is a reliable and stable 5U-high industrial computer chassis use by 1.2mm high end SGG steel The full size I/O supports all motherboard 12" x 13" and the backplane supports 7 full-height add-on cards. This chassis has two 120mm cooling fans two 60mm fans at rear for air ventilation. In addition, It support standard ATX power supply to meet regular server system applications. |
| Model Number | KI-N548LT |
| Dimension (W*H*D) | 19" x 18.75" x 18.89" / 482 x 222 x 480 (mm) |
| Motherboard Size | 12" x 13" (or smaller as EATX, microATX) |
| Drive Bays | 2 x 3.5" (int.) |
| Indicators | LEDs for Power |
| Switches | 1 x Powerswitch with LED |
| PSU Type | PS-2 ATX PSU or mini-Redundant PSU |
| Expansion Slots | 7 (full height) + 6 x com + 1 x HDMI |
| Material of Front Bezel | Aluminum 4mm |
| Material of Handle | Aluminum |
| Material Construction | Heavy-duty & Rugged steel SGCC 1.2mm |
| Sliding rail | 26" ball bearing sliding rail (option) |
| Color of Main Chassis | Black |
| Front Connector | 1 x 3.0 USB |
| Fan: | 2 x 12cm + 2 x 6cm fan |
| Packing size CBF / CBM | 2.9 / 0.089 |
| Packing N.W / G.W | 14.5 KGS / 17.5KGS |
| Notes |
