Rackmount chassis Server case 19 inch ATX microATX 4U two door N4058

Drives3 * 5.25 + 8 * 3.5(int.)

Motherboard Size12 * 9.6 (ATX, microATX)

Dimension19.00 * 7 * 18.9 inches / 482 * 177 * 480 (mm)

Inquiry

DESCRIPTION

VIDEO

4U Compact Rackmount two door ATX Chassis support ATX Power Supply

Front access two USB2.0
Supports standard ATX PSU
Fits ATX, Micro ATX or Mini-ITX motherboards

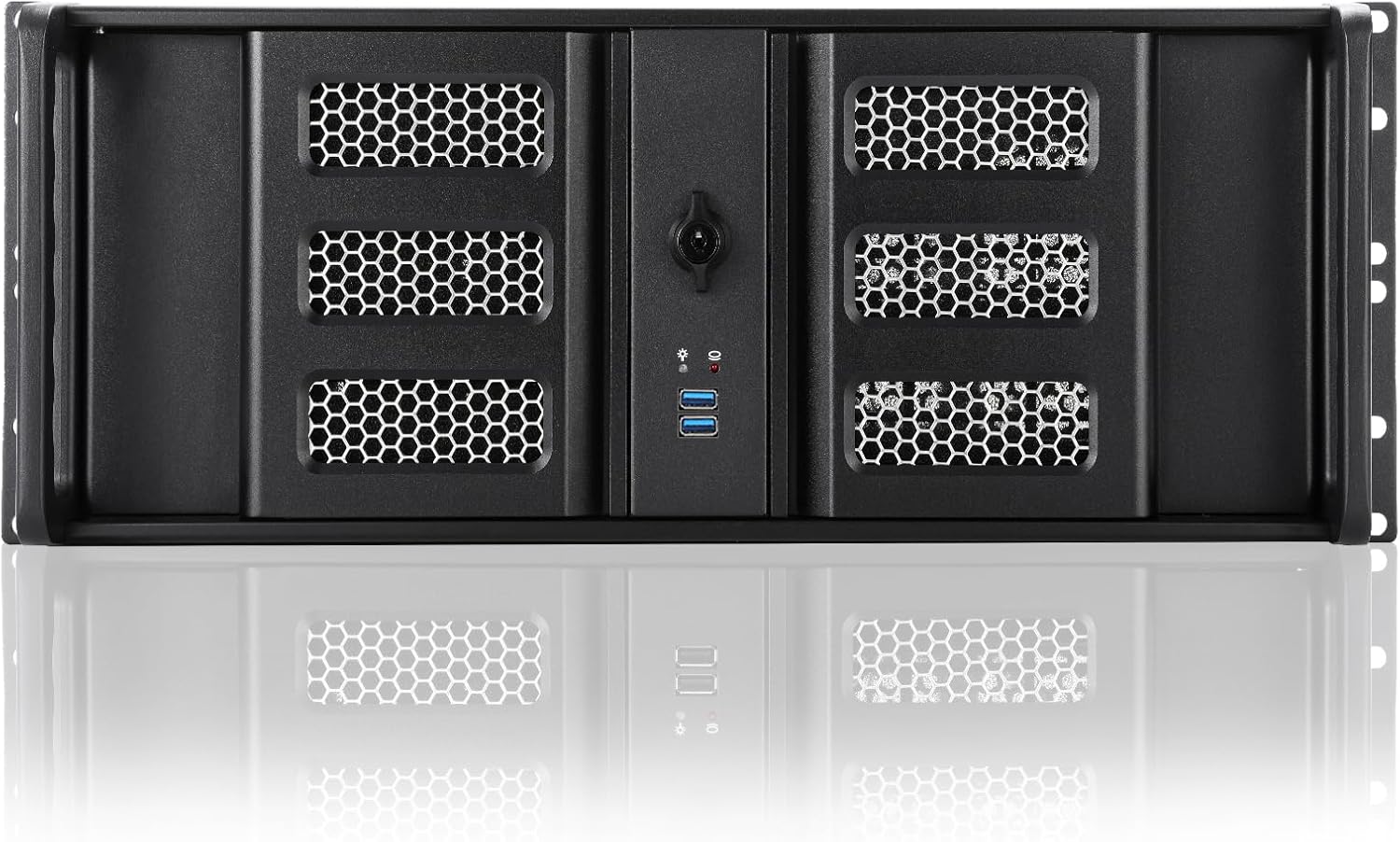

Aluminum front two door and handles
Washable bezel filter + key lock front bezel to prevent unauthorized access Datasheet&Drawing

Introduction

KI-N4058 is a reliable and stable 4U-high server chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. It support 3 * 5.25 + 8 * 3.5(int.) drive bay, and supports standard ATX PS2 power supply to meet regular server system applications.

Model Number	KI-N4058
Dimension (WHD)	19" x 7" x 18.9" / 482 x 177 x 480 (mm)
Motherboard Size	12" x 9.6" (ATX, Micro ATX or Mini ITX)

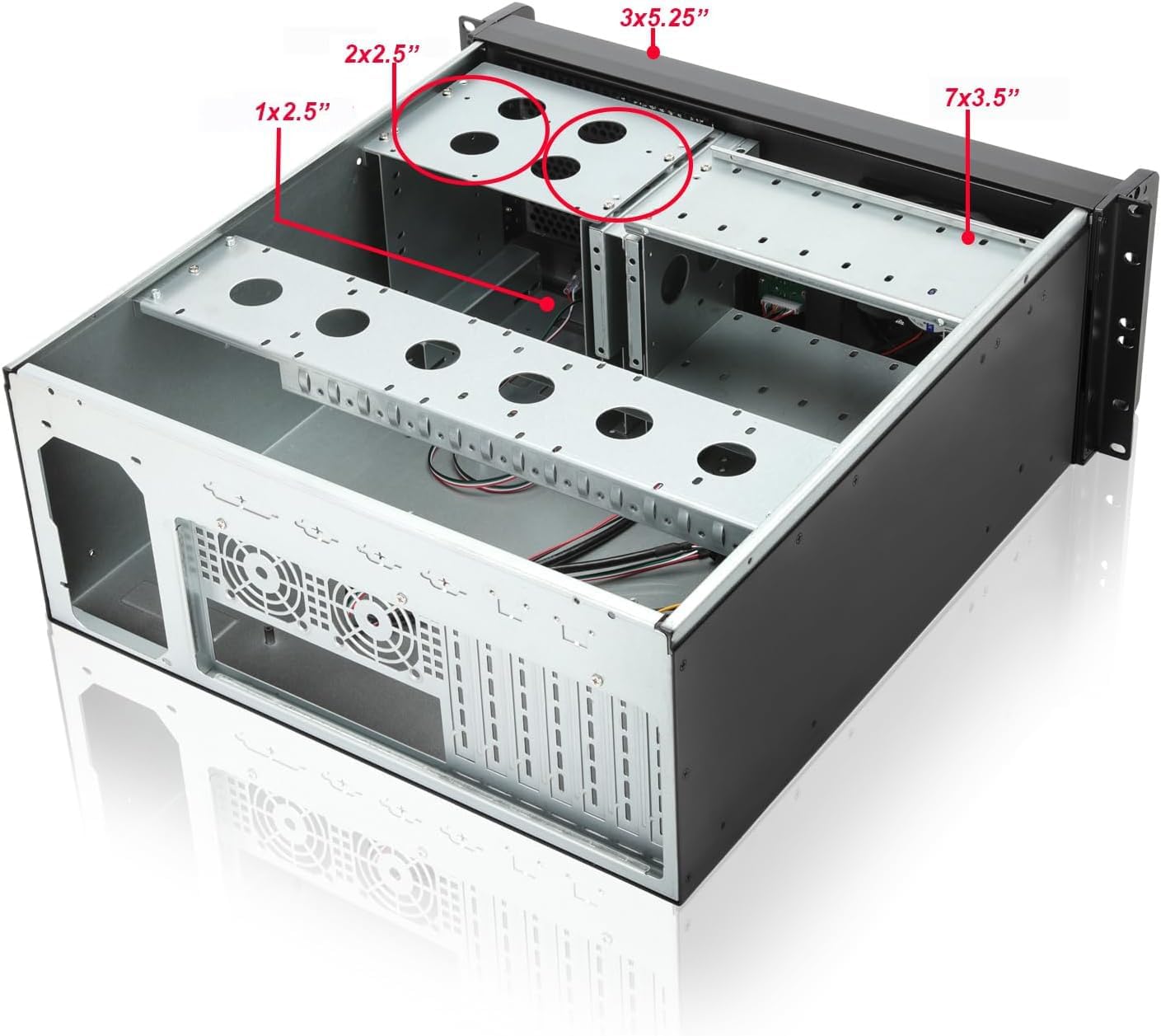

Drive Bays	3 x 5.25" + 8 x 3.5" (int.)
Indicators	LEDs for Power & HDD
Switches	1 x Power +1 x Reset
PSU Type	PS-2 ATX PSU

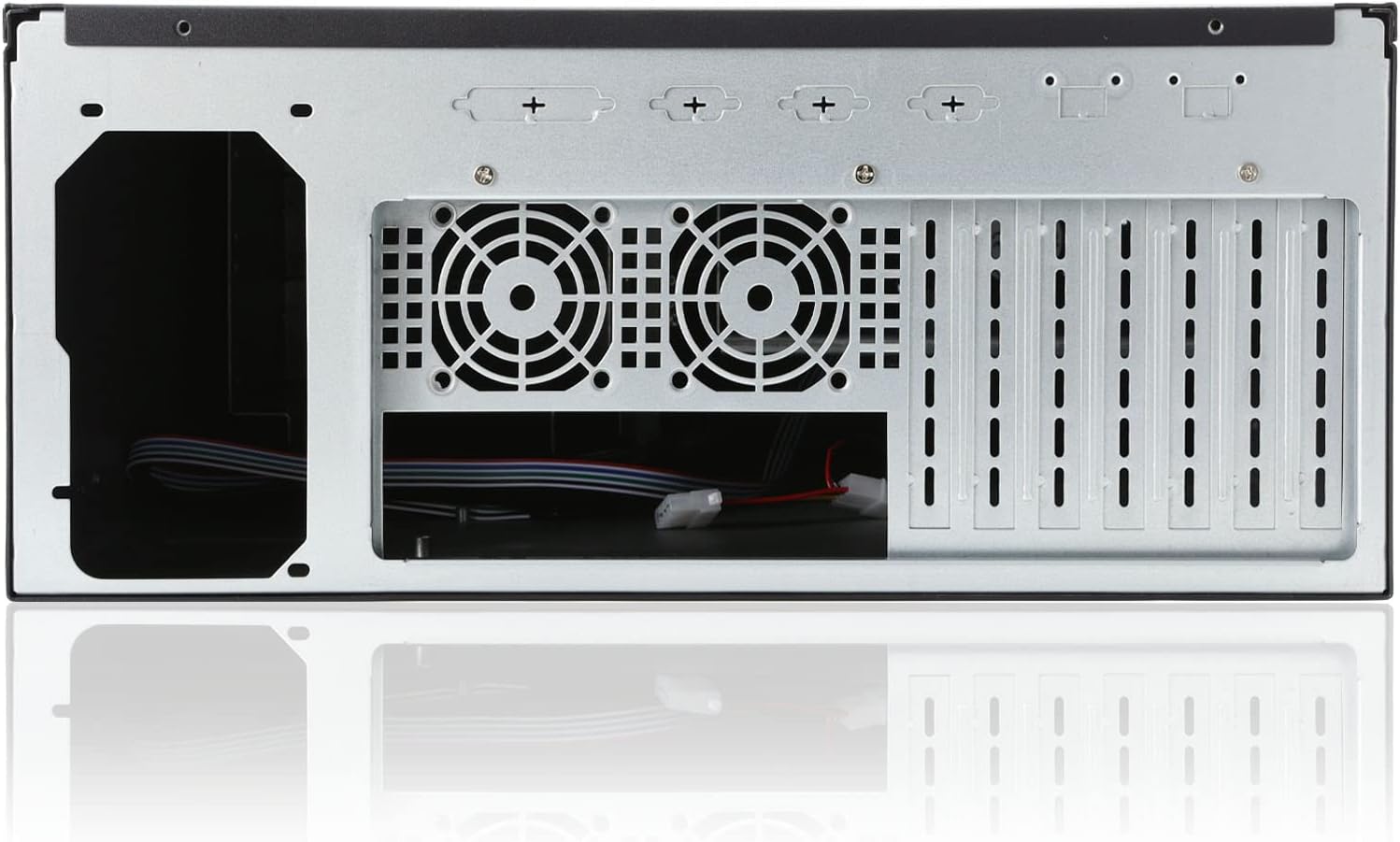

Expansion Slots	7 (full height)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material Construction	Heavy-duty & Rugged steel SGCC 1.2mm
Sliding rail	26" ball bearing sliding rail (option)
Color of Main Chassis	Black
Front Connector	2 x 2.0 USB (option USB3.0)
Fan:	1 x 12cm + 2 x 6cm fan (option)
Packing size CBF / CBM	3.5 / 0.1
Packing N.W / G.W	12.5 KGS / 14.5KGS
