Rackmount chassis Server case 19 inch ATX 4U N406C

Drives3 x 5.25" + 8 x 3.5" (int.)

Motherboard Size 12" x 9.6" (ATX, Micro ATX or Mini ITX)

Dimension19" x 7" x 17.72" / 482 x 177 x 450 (mm)

Inquiry

DESCRIPTION

VIDEO

4U Compact Rackmount low cost ATX Chassis support ATX Power Supply

Front access two USB2.0 or 3.0 ports
Supports standard ATX PSU
Fits ATX, Micro ATX or Mini-ITX motherboards
The most ecnomic solution for 4U chassis with 3 x 5.25“+ 8 x 3.5“(int.)

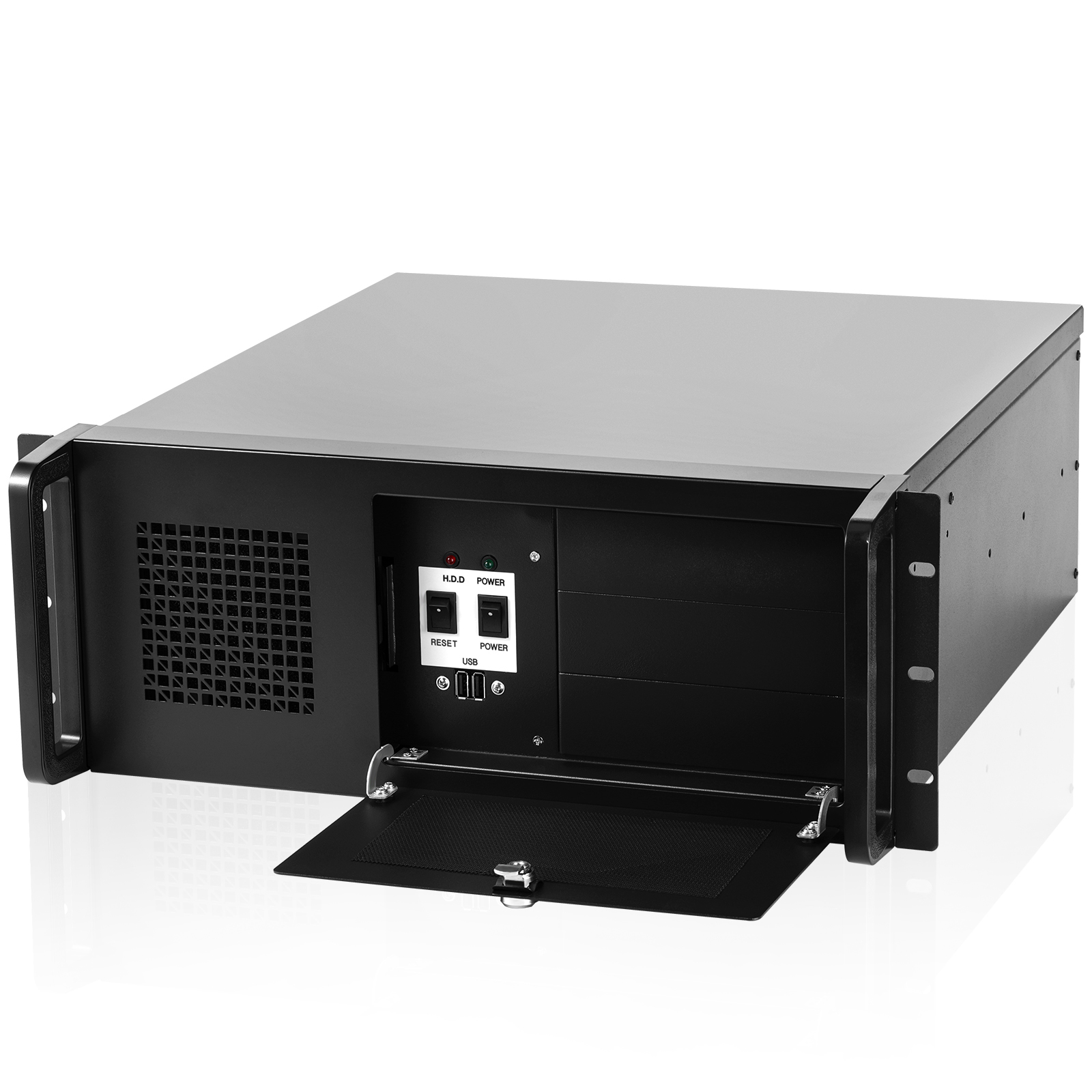

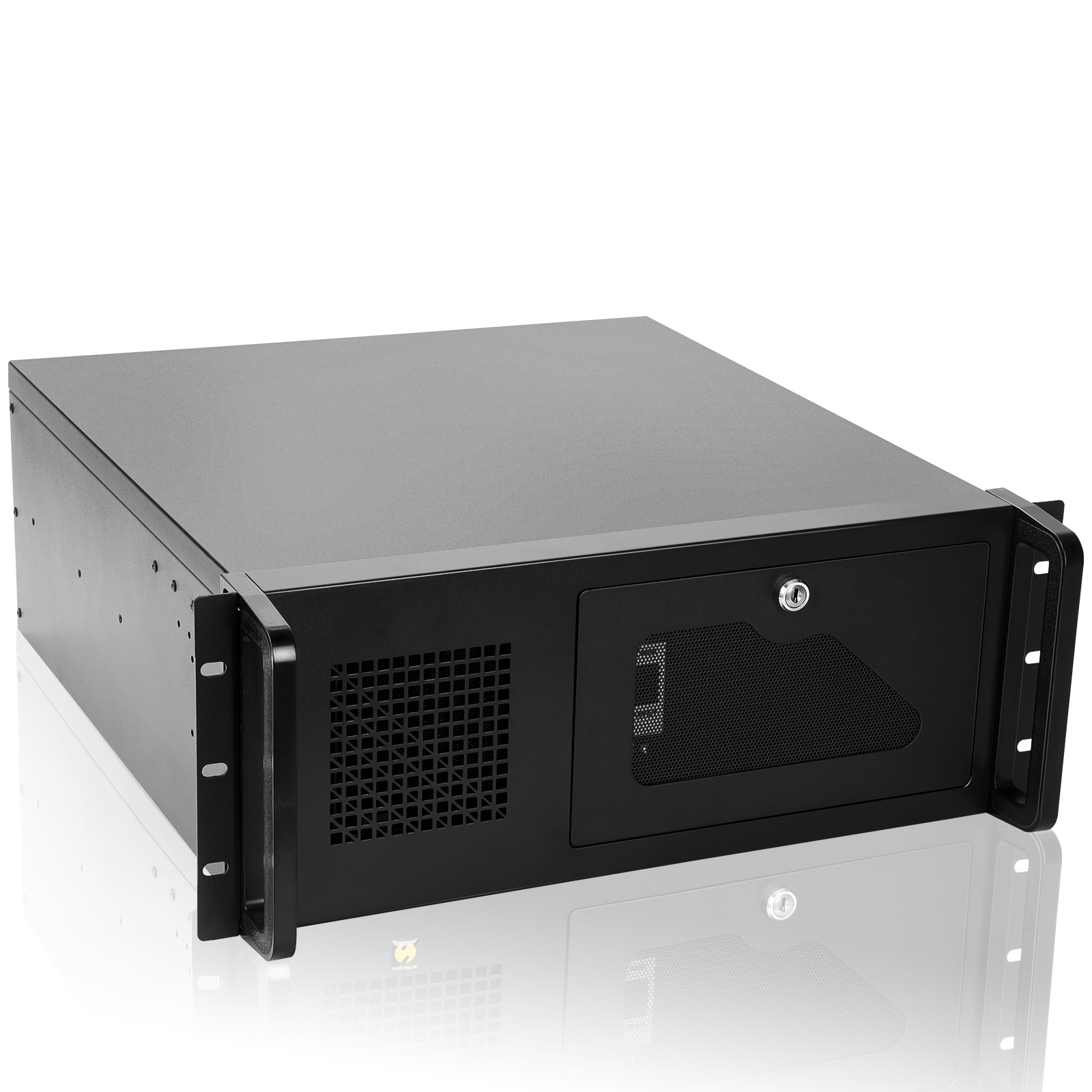

Key lock front bezel to prevent unauthorized access Drawing

Introduction

KI-N406C is a reliable and stable 4U-high industrial computer chassis use by 1.2mm high end SGG steel The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is only 15.35" deep and has 120mm cooling fans at front and two 80mm fans at rear for air ventilation. support standard ATX power supply to meet regular server system applications.

Model Number	KI-N406C
Dimension (WHD)	19" x 7" x 17.72" / 482 x 177 x 450 (mm)
Motherboard Size	12" x 9.6" (ATX, Micro ATX or Mini ITX)
Drive Bays	3 x 5.25" + 8 x 3.5" (int.)
Indicators	LEDs for Power & HDD
Switches	1 x Power +1 x Reset
PSU Type	PS-2 ATX PSU
Expansion Slots	7 (full height)
Material of Main base	Heavy-duty & Rugged steel SPCC 1.0mm
Material of Handle	Plastic
Material inside parts	Heavy-duty & Rugged steel SPCC 0.8mm
Sliding rail	18" ball bearing sliding rail (option)
Color of Main Chassis	Black
Front Connector	2 x 2.0 USB (option USB3.0)
Fan:	1 x 12cm + 2 x 6cm fan (option)
Packing size CBF / CBM	2.6 / 0.07
Packing N.W / G.W	8KGS / 10KGS
