Rackmount chassis Server case 19 inch ATX EATX 2U 12bay hotswap 12Gbs N212RM-L-HD

Drives12 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible)

Motherboard Size12" x 13"(EATX,ATX,micro ATX,Mini ITX)

Dimension19" x 3.5" x 26.77"/ 482 x 89 x 680 (mm)



2U high density storage Trayless hotswap rackmount EATX Chassis

  • 2U single or 2U redundant PSU
  • 12 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible)
  • 12Gb/s HDD SFF-8643

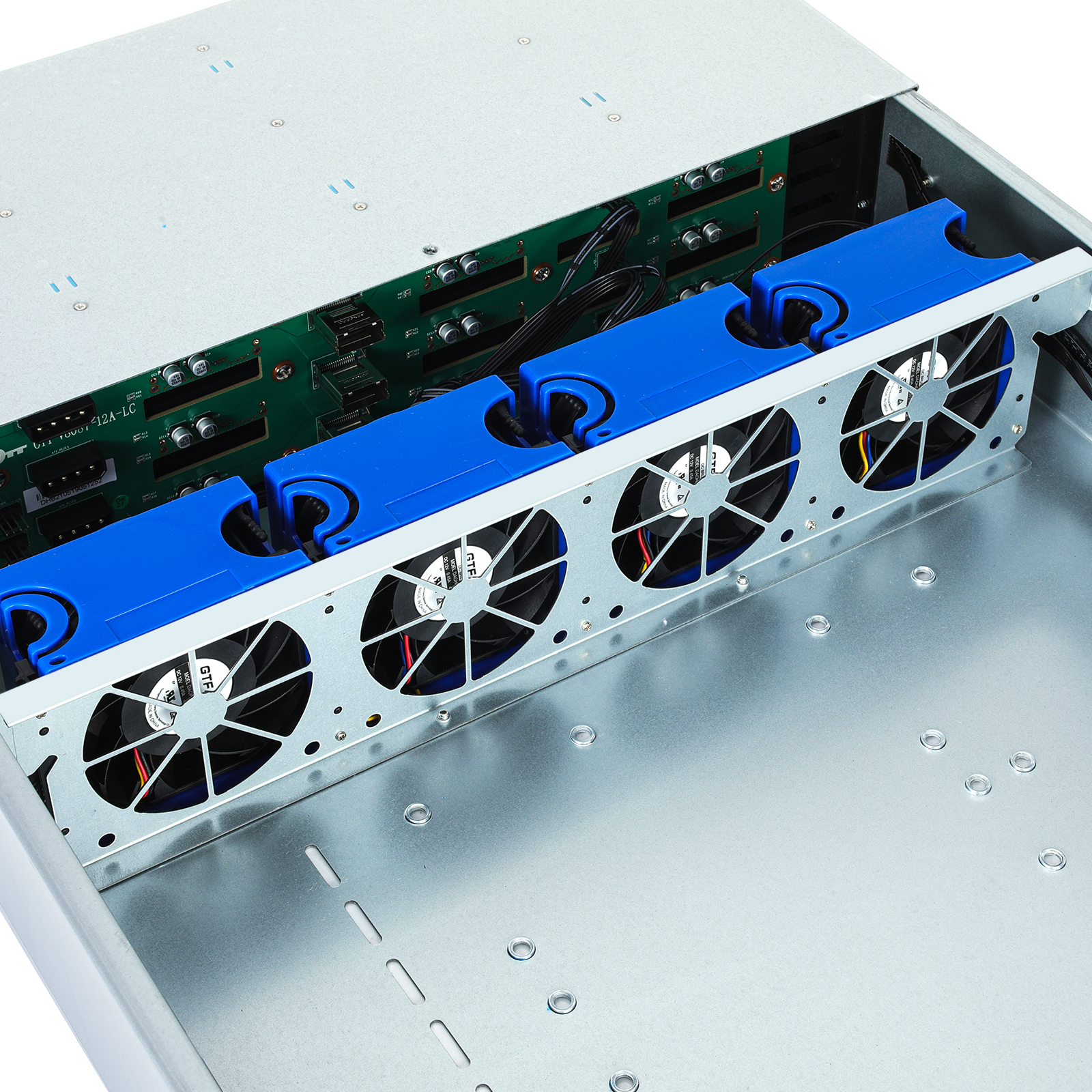

  • 4 x 80mm *38mm Hot-Swappable PWM fan


KI-N212RM-L-HD has the stylish appearance, the functionality and flexibility make storage server. As SAS / SATA / Mini-SAS technology has become a more cost effective solution, we provide SATA / SAS /mini SAS backplane to support both latest SAS and SATA hard drives, and also provide 2U single or 2U redundant power supply to ensure the server applications.

Model Number           KI-N212RM-L-HD
Dimension (W*H*D) 19" x 3.5" x 26.77"/ 482 x 89 x 680 (mm)
Motherboard Size 12" x 13"(EATX,micro ATX,Mini ITX)
Drive Bays 12 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 2U single or 2U redundant PSU

Expansion Slots 7 x low profile
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.2mm
Backplane 12Gb/s HDD SFF-8643
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm
Sliding rail 20" ball bearing sliding rail (option)
Material of handle Aluminum
Front Connector 1 x USB2.0
Fan: 4 x 80*38mm Swappable PWM fan
Packing size CBF / CBM 2.26 / 0.065
Packing N.W / G.W  11KGS / 13KGS
NotesReverse 8643 Mini-SAS cable to 4 sata cables are optional (3pcs) not include with chassis
