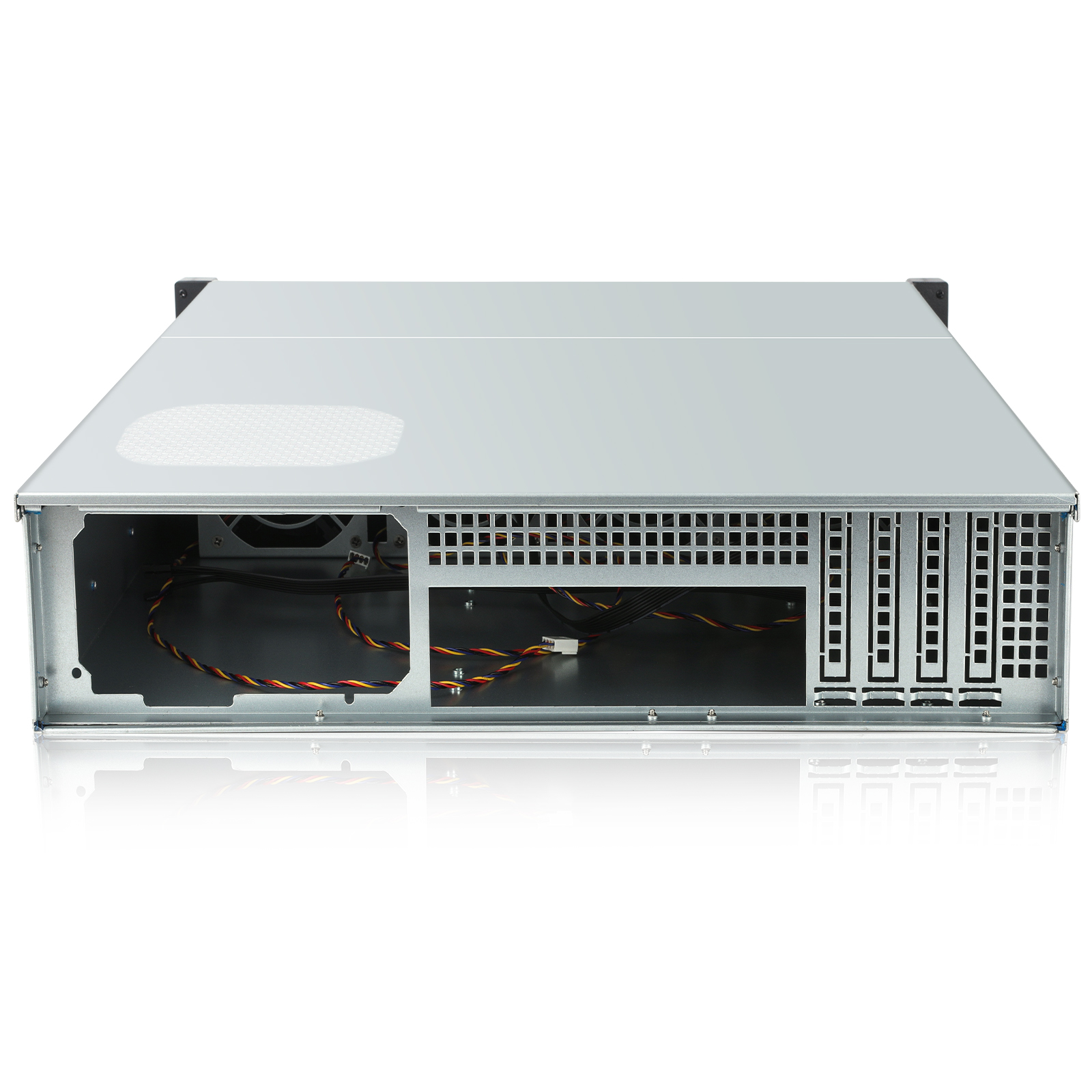

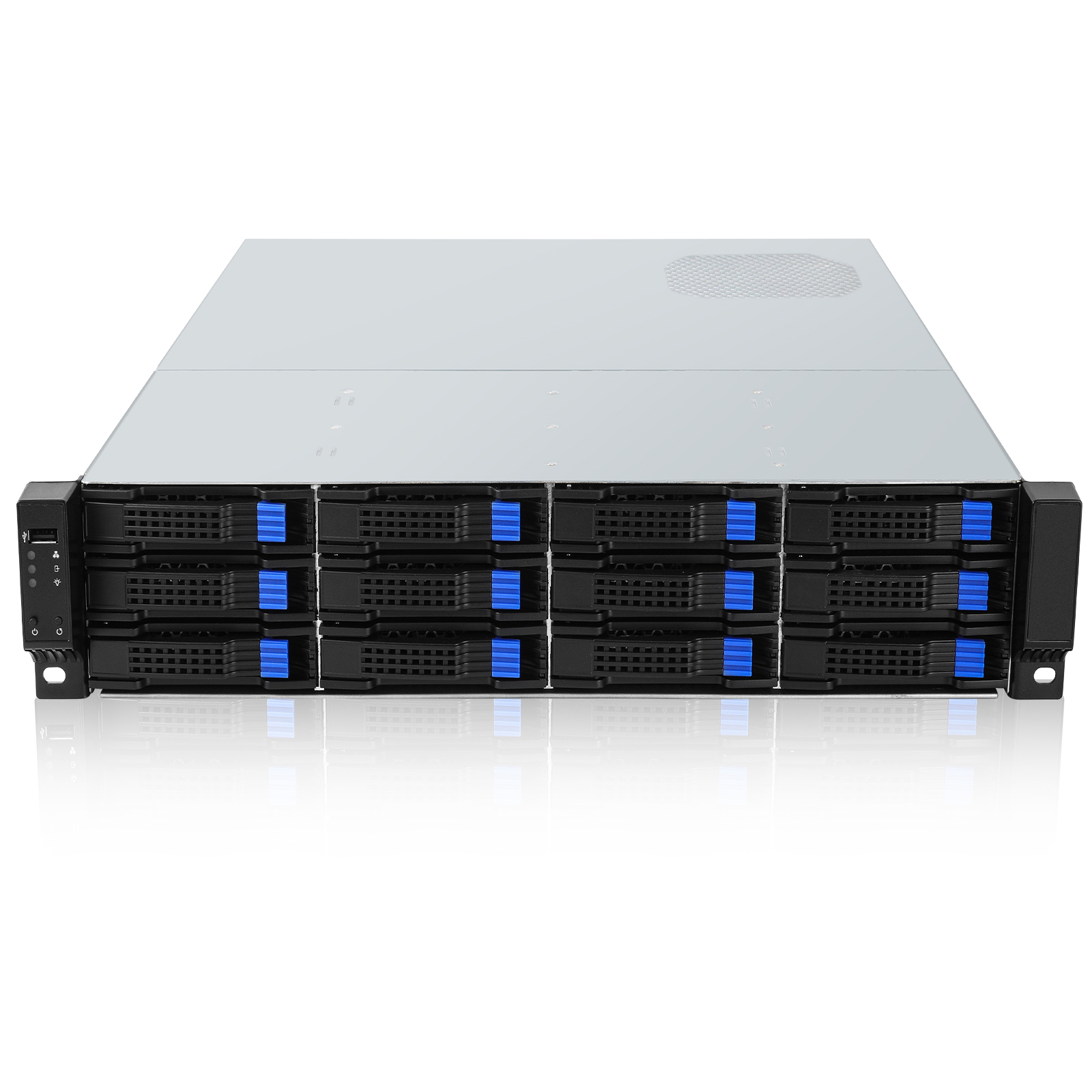

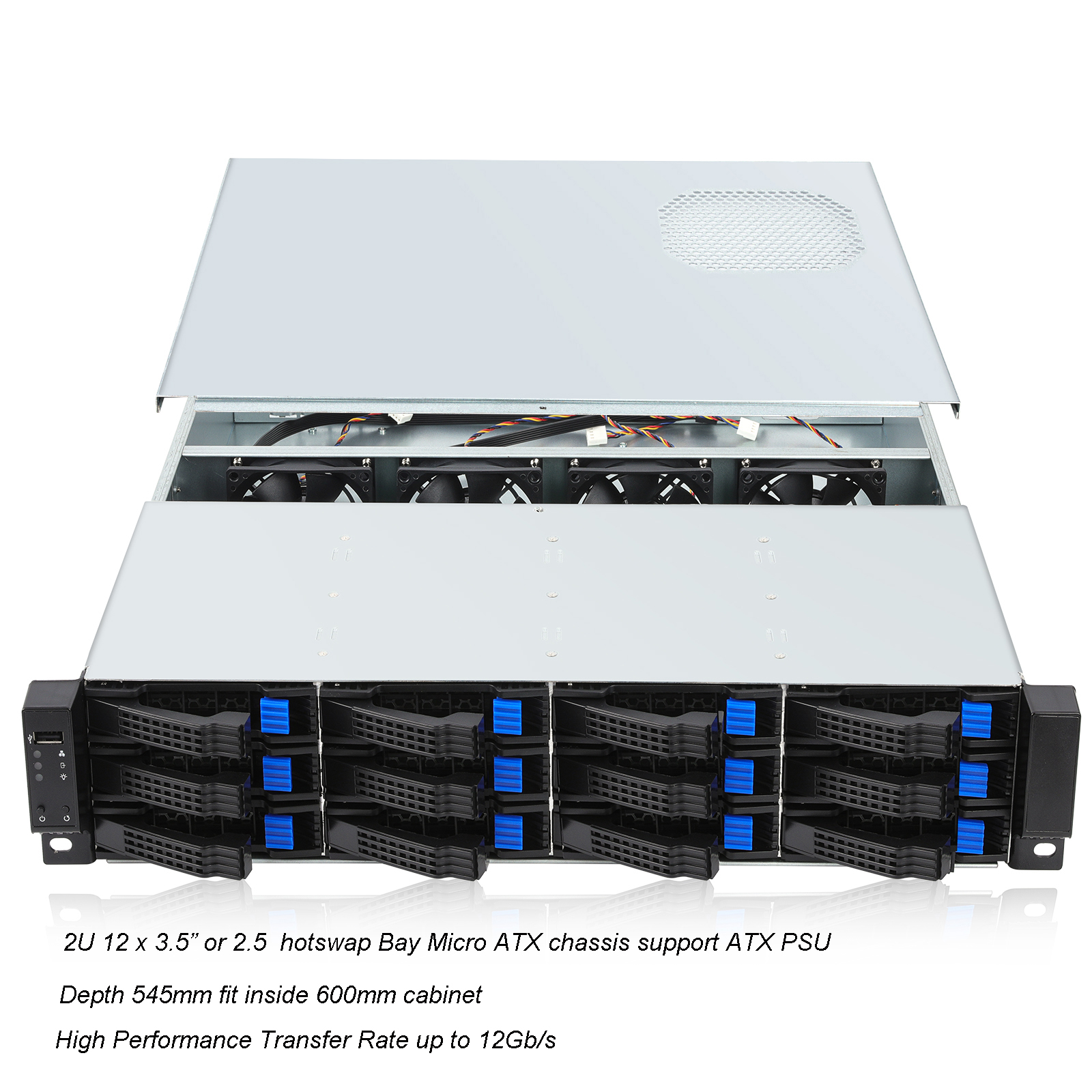

Rackmount chassis Server case 19 inch Micro atx mini-itx 2U 12bay hotswap 12Gbs N212RM-HD
2U high density storage Trayless hotswap rackmount micro-ATX Chassis
Introduction KI-N212RM-HD has the stylish appearance, the functionality and flexibility make storage server. As SAS / SATA / Mini-SAS technology has become a more cost-effective solution, we provide2Gb/s HDD SFF-8643 backplane to support both latest SAS and SATA hard drives, and also provide regular ATX power supply to ensure the server applications. |
| Model Number | KI-N212RM-HD |
| Dimension (W*H*D) | 19" x 3.5" x 21.5"/ 482 x 89 x 545 (mm) |
| Motherboard Size | 9.6" x 9.6"(micro ATX,Mini ITX) |
| Drive Bays | 12 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible) |

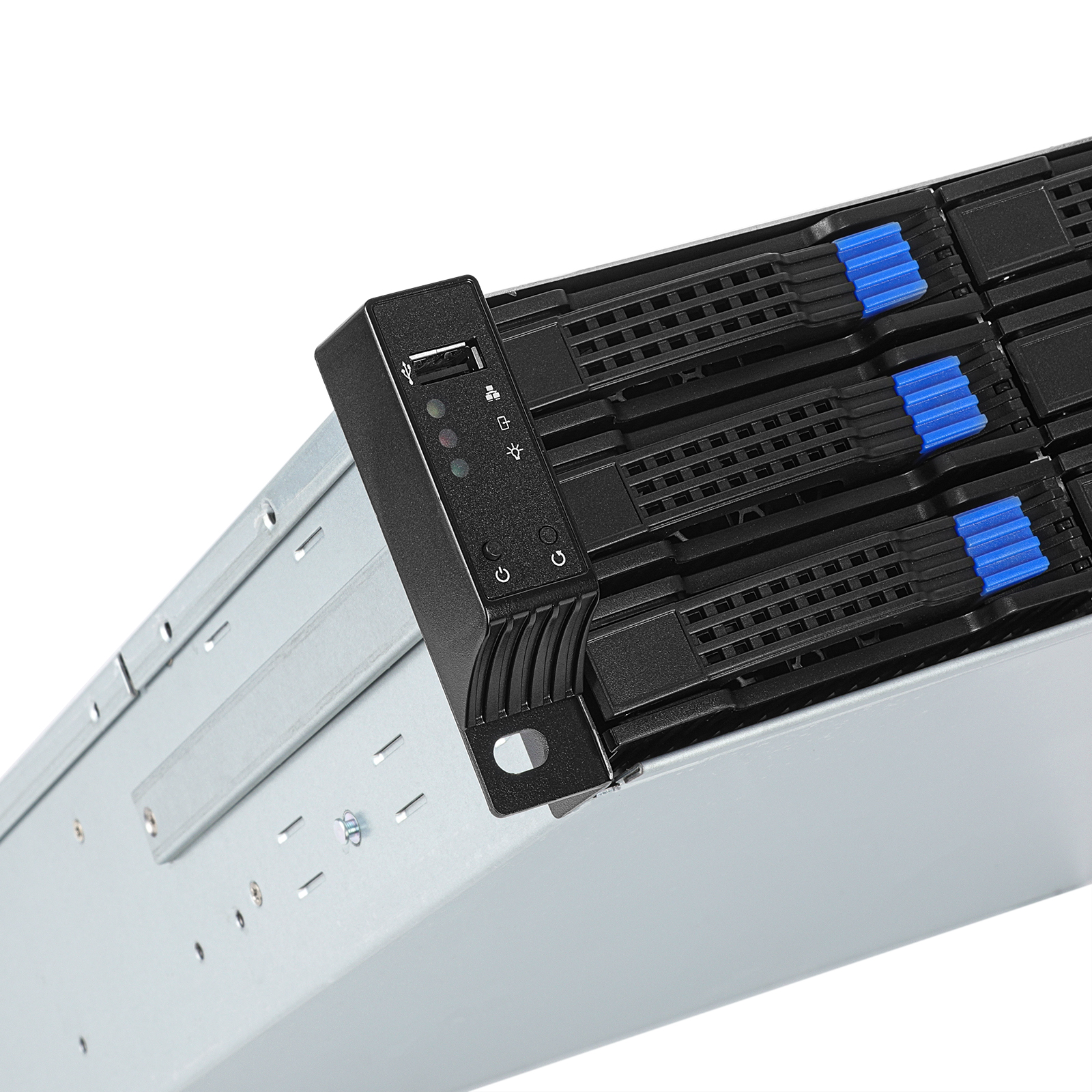

| Indicators | LEDs for Power & HDD |
| Switches | 1 x Power +1 x Reset |
| PSU Type | Regular ATX PS2 PSU |
| Expansion Slots | 5 x low profile |
| Material of Front Bezel | Heavy-duty & Rugged SGCC steel 1.2mm |
| Material of Handle | Aluminum |
| Material Construction | Heavy-duty & Rugged SGCC steel 1.2mm |
| Sliding rail | 20" ball bearing sliding rail (option) |

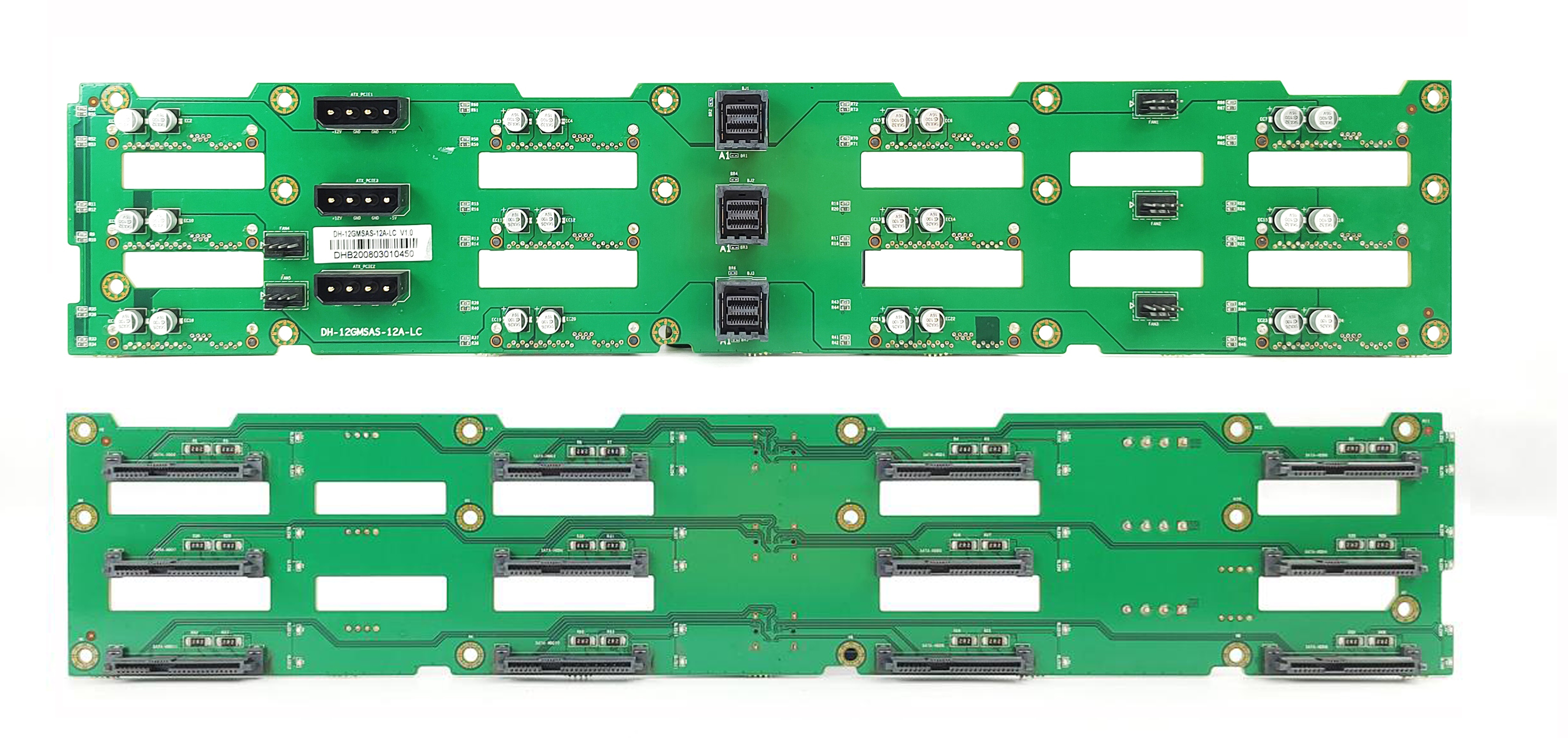

| Backplane | 12Gb/s HDD SFF-8643 |
| Front Connector | 1 x USB2.0 |

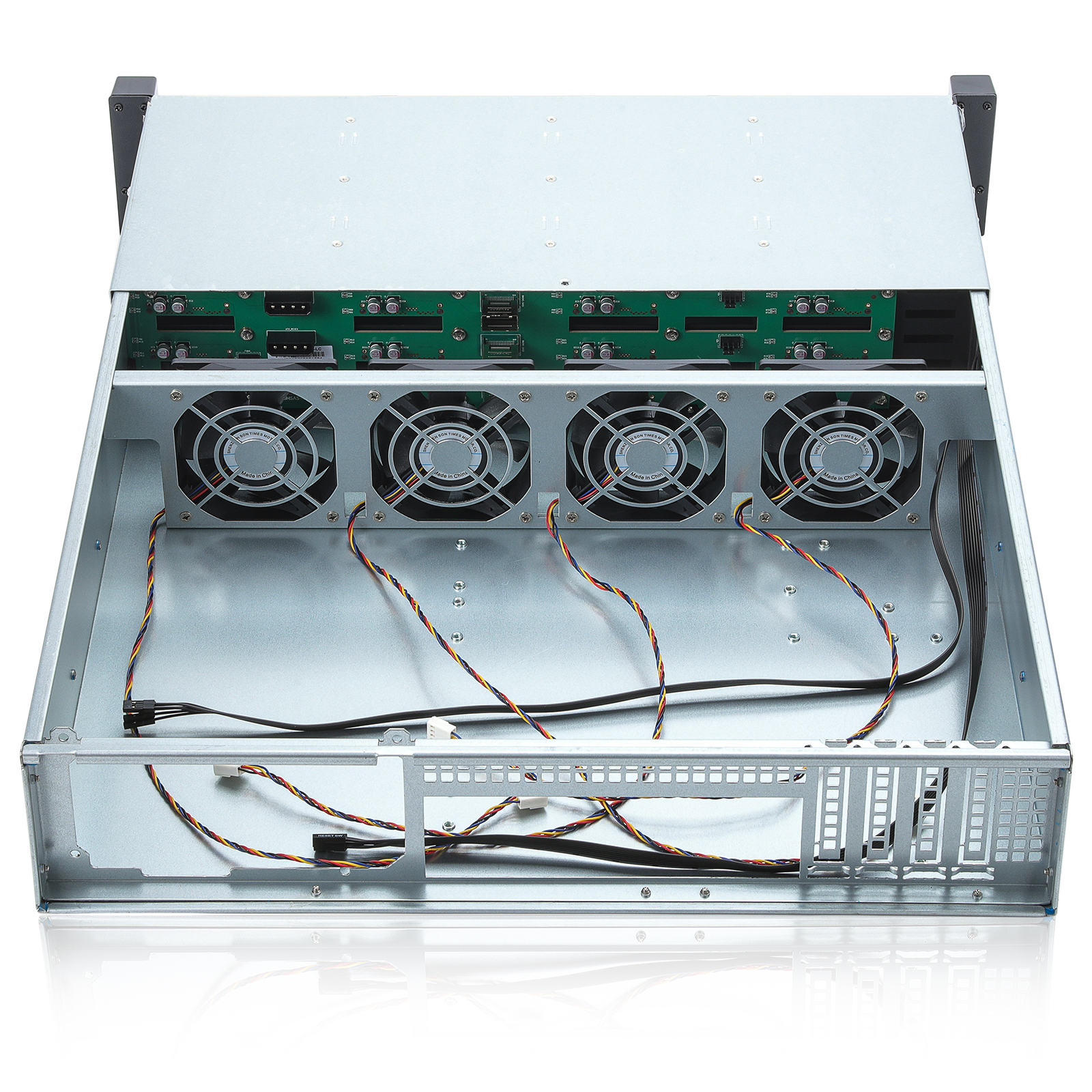

| Fan: | 4 x 8cm fan |
| Packing size CBF / CBM | 2.7 / 0.076 |
| Packing N.W / G.W | 7KGS / 8.5KGS |
| Notes | Reverse 8643 Mini-SAS cable to 4 sata cables are optional (3pcs) not include with chassis |
-
