Rackmount chassis Server case 19 inch ATX microATX 3U i/o front N303

Drives1 * 5.25 +3 * 3.5 or 3*2.5 (int.)

Motherboard Size12 * 9.6 (ATX, microATX, mini-ITX)

Dimension 19.00 * 5.25 * 11.8 inches / 482.6 * 133.4 * 303 mm

Inquiry

DESCRIPTION

VIDEO

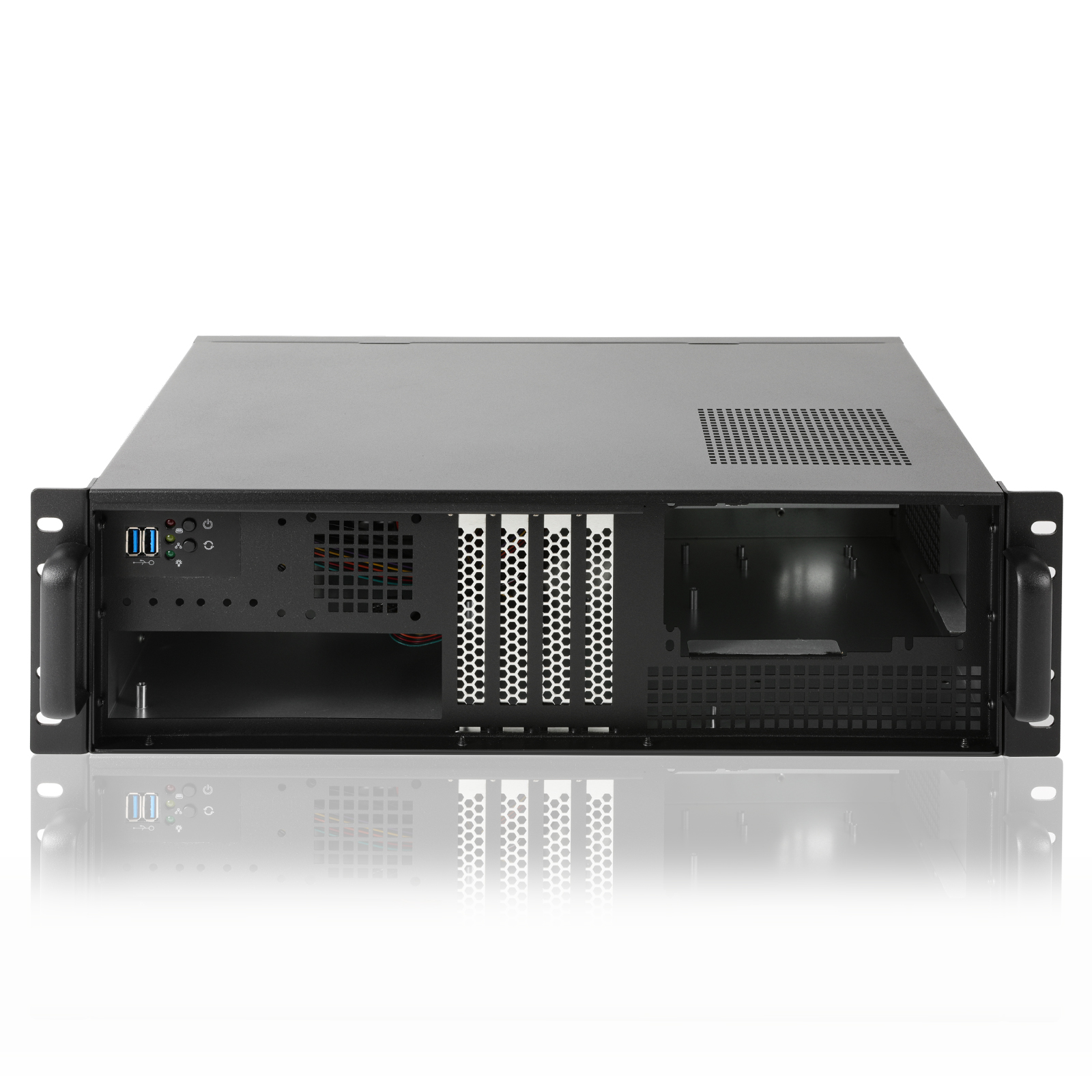

3U ultra Compact Rackmount ATX Chassis support ATX Power Supply

  • Ultra compact size depth=303mm

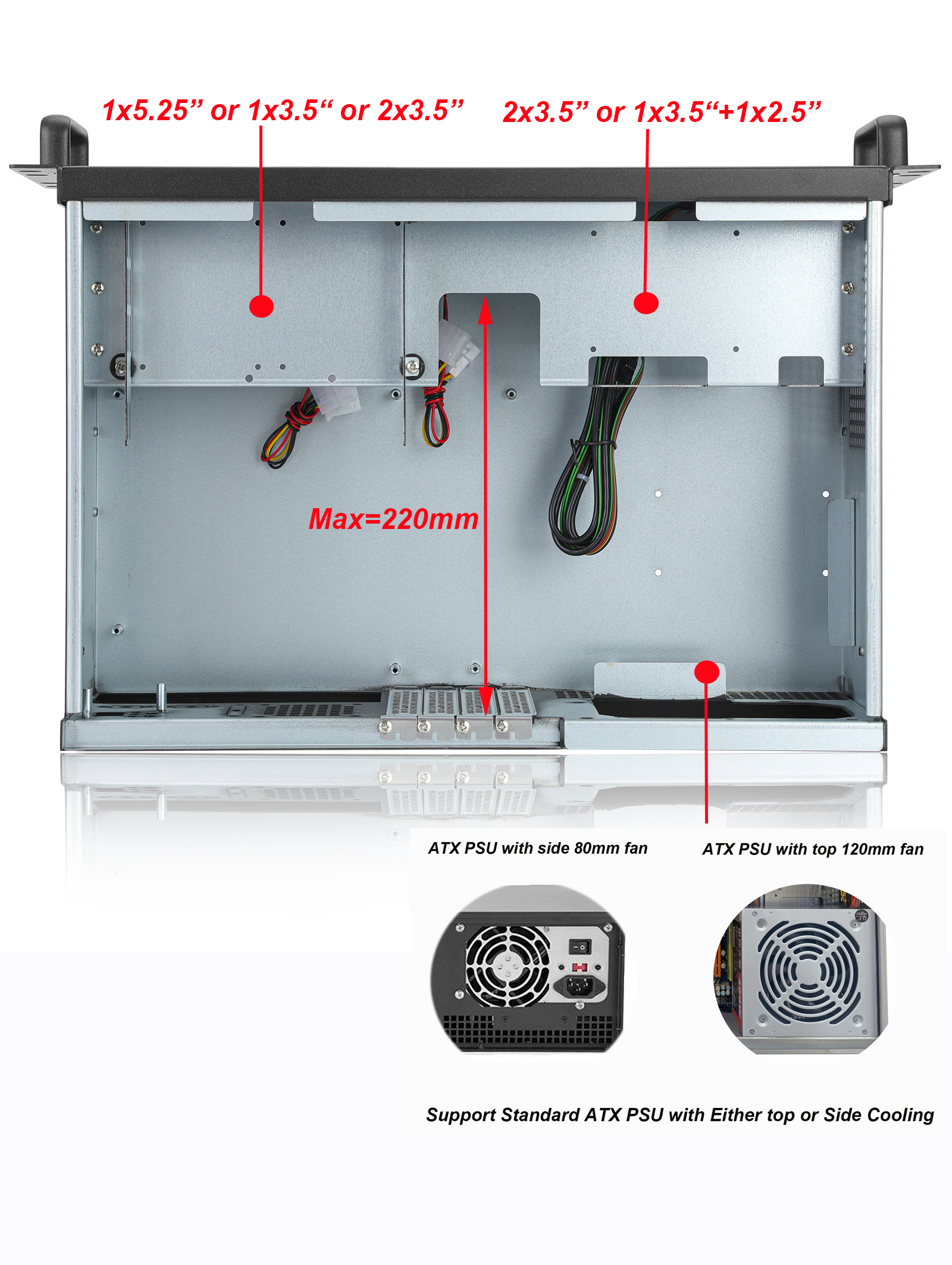

  • 1 x 5.25" + 3 x 3.5" or 2.5" (int.) drive bays
  • 2 x front access USB 2.0 or 3.0 ports
  • I/O front or Standard rackmount, wall-mount compatible
  • Support 4 x full height Add on cards  datasheet&drawing


Introduction

KI-N323 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 11.8" deep and has 7 x 60mm cooling fans air ventilation. In addition, It support standard ATX power supply to meet regular server system applications.


Model Number           KI-N303
Dimension (W*H*D) 19" x 5.25" x 11.8"/ 482 x 133 x 303 (mm)

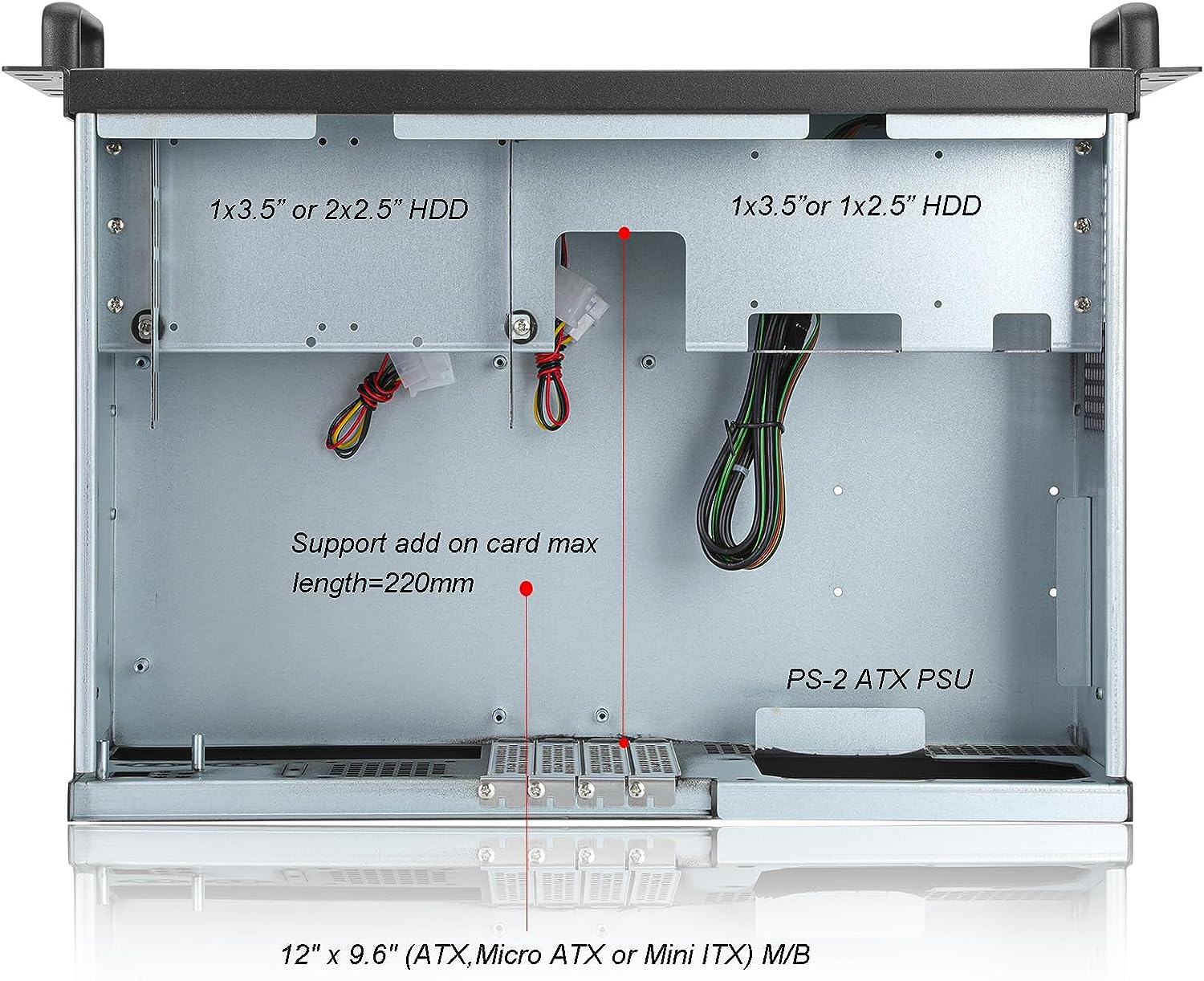

Motherboard Size 12" x 9.6" (ATX,Micro ATX or Mini ITX)
Drive Bays 1 x 5.25" + 3 x 3.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 PS-2 ATX PSU

Expansion Slots 4 (full height) add on cards max L=220mm
Material of Front Bezel  Heavy-duty & Rugged steel 1.2mm
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged steel 1.2mm
Sliding rail18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 2 x 6 cm intake + 5 x 6cm fan (option)
Packing size CBF / CBM 2.2 / 0.06
Packing N.W / G.W  5.2KGS / 6.5KGS
