Rackmount chassis Server case 19 inch microATX 1U i/o front N135

Drives 2 * 3.5 + 2 * 2.5 (int.)

Motherboard Size9.6 * 9.6(microATX, mini-ITX) / (Front or rear I/O install)

Dimension19.00 * 1.75 * 14.17 inches / 482 * 44.5 * 360 (mm)

Inquiry

DESCRIPTION

VIDEO

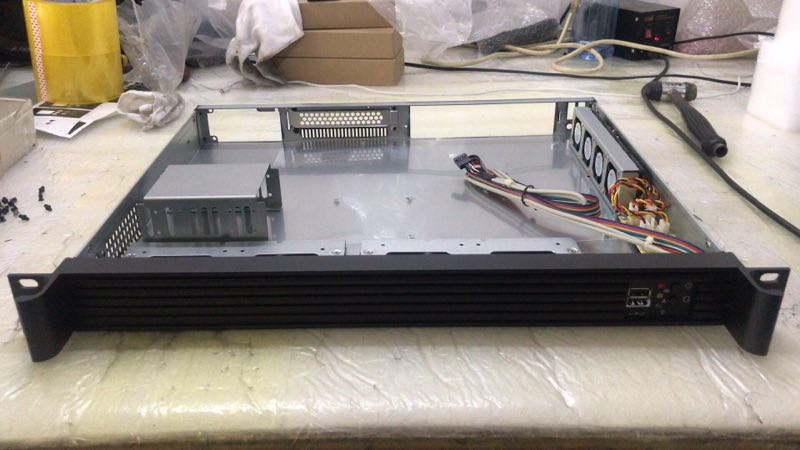

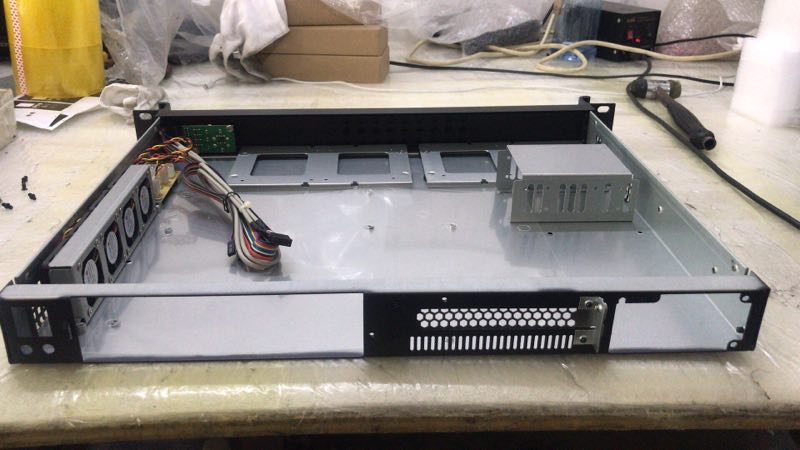

1U Leading Rackmount microATX Chassis support 1U single Power Supply

  • Better cooling with 4 x 40mm fan wall
  • 2 x 3.5 + 2 x 2.5" (int.) drive bays
  • Support Mother board front or rear access
  • Universal I/O plate support standard I/O interfaces can be customized
  • Datasheet&drawing


Introduction

This 1U rackmount chassis support Mother Board front or rear access, with unique thermal cooling solution fan can cool the system down while it runs at optimal level. unique universal aluminum I/O plate enables standard I/O backplane for microATX motherboards. two internal 3.5" or four 2.5" provide the meet regular server system applications


Model Number           KI-N135
Dimension (W*H*D) 19" x 1.75" x 14.17"/ 482 x 44 x 360 (mm)
Motherboard Size 9.6" x 9.6" (Micro ATX or Mini ITX)
Drive Bays 2 x 3.5" + 2 x 2.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 1U Flex PSU

Expansion Slots 1slot full height riser card
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.0mm
Sliding rail 18" 1U ball bearing sliding rail (option)
CPU Cooler  1U CPU Cooler LGA 115x socket (option)
Front Connector 2 x 2.0 USB
Fan: 4 x 4cm fan
Packing size CBF / CBM 1.8 / 0.05
Packing N.W / G.W  4.5KGS / 5.5KGS
