Rackmount chassis Server case 19 inch EATX ATX 3U 16bay hotswap 6Gbs N316RM

Drives16 x 3.5" hot swap SATA/SAS/MiniSas (2.5" compatible)

Motherboard Size12" * 13" ( EATX, ATX M/B)

Dimension 16 x 3.5" hot swap SATA/SAS/MiniSas (2.5" compatible)

Inquiry

DESCRIPTION

VIDEO

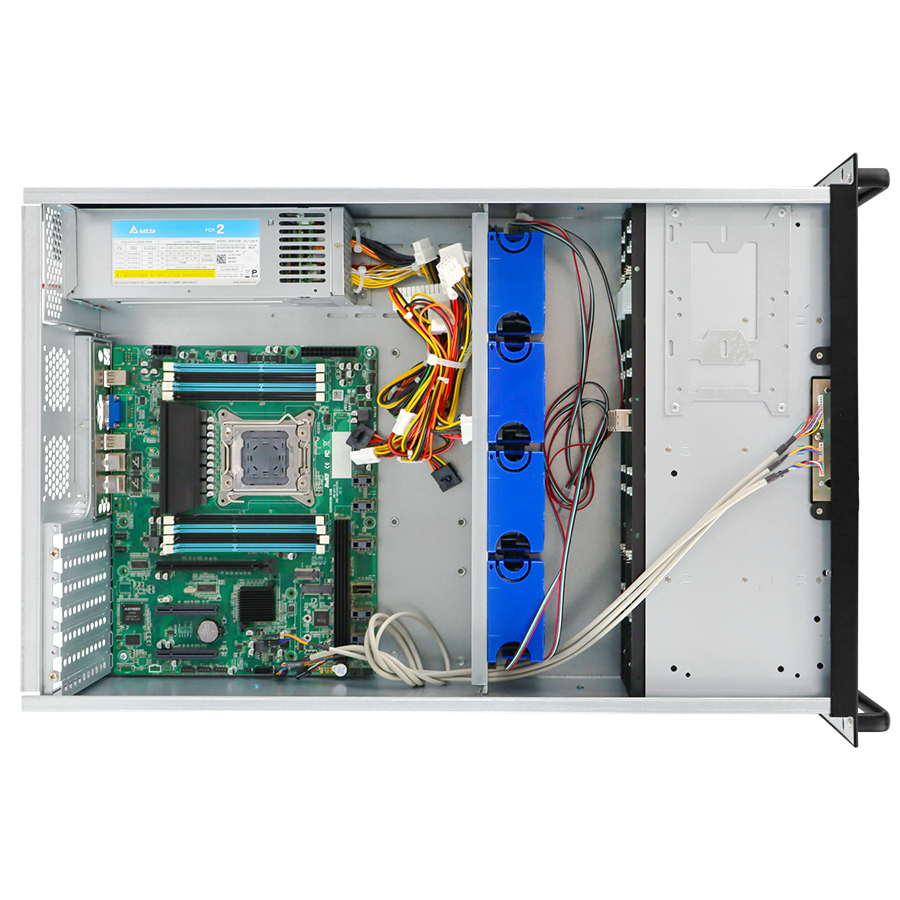

3U high density storage Trayless hotswap rackmount EATX Chassis

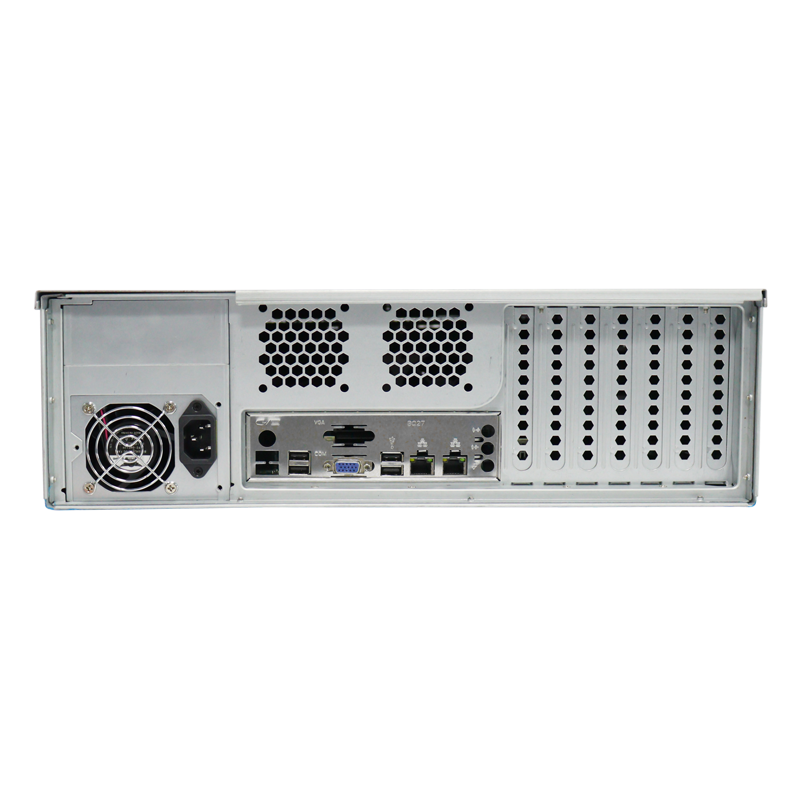

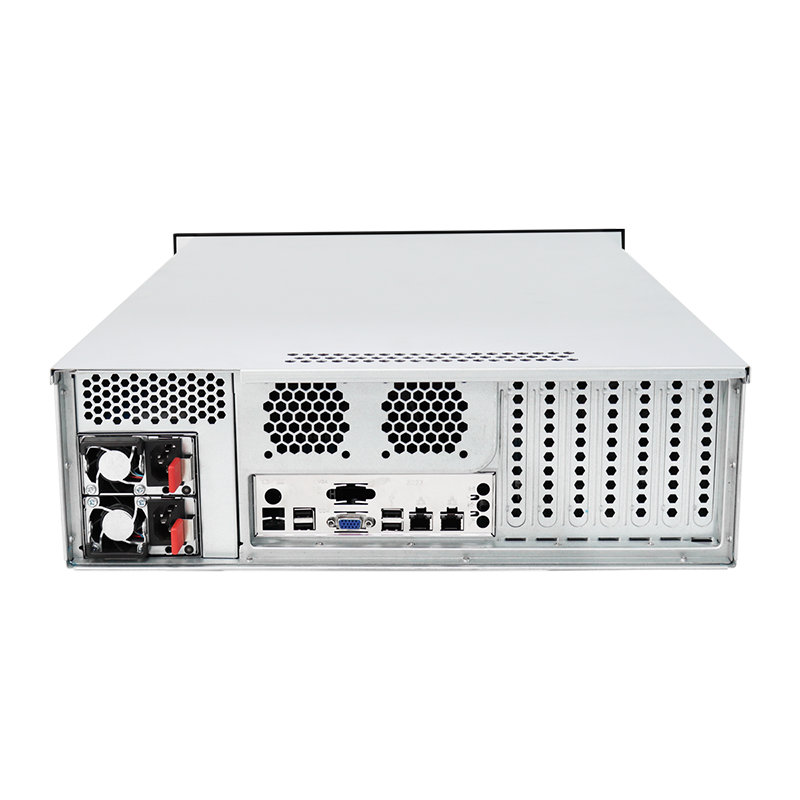

  • 2U single or 2U redundant PSU
  • 16 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible)
  • MiniSAS (SFF-8087) HDD Backplane
  • 4 x 80mm *38mm Hot-Swappable PWM fan



Introduction

KI-N316RM has the stylish appearance, the functionality and flexibility make storage server. As SAS / SATA / Mini-SAS technology has become a more cost effective solution, we provide SATA / SAS /mini SAS backplane to support both latest SAS and SATA hard drives, and also provide 2U single or 2U redundant power supply to ensure the server applications.


Model Number           KI-N316RM
Dimension (W*H*D) 19" x 5.25" x 26.77"/ 482 x 133 x 680 (mm)
Motherboard Size 12" x 13"(EATX,micro ATX,Mini ITX)
Drive Bays 16 * 3.5" hot swap SATA/SAS / Mini SAS (2.5" compatible)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 2U single or 2U redundant PSU

Expansion Slots 7 x full height
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.2mm
Backplane MiniSAS (SFF-8087) HDD Backplane Support 6.0Gb/s SAS/SATA Hard Drives
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm
Sliding rail 26" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 1 x USB2.0
Fan: 4 x 80*38mm Swappable PWM fan + 2 x 6cm (option)
Packing size CBF / CBM 4.5 / 0.13
Packing N.W / G.W 16KGS / 17KGS
NotesOne Minisas to four SATA reverse cable are optional (3pcs), not include with chassis
