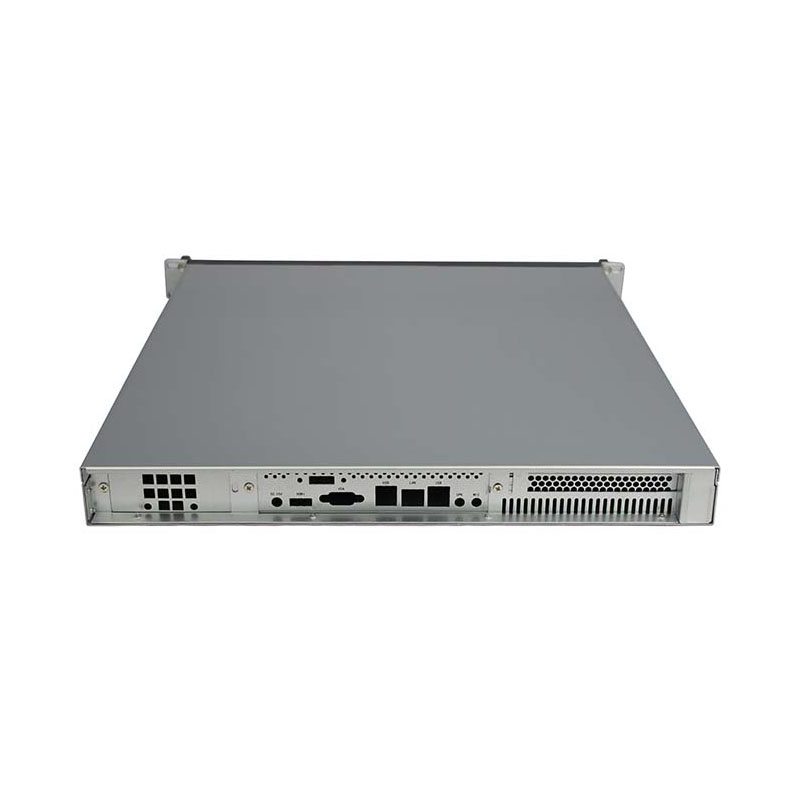

Rackmount chassis Server case 19 inch mini-itx 1U 4bay hotswap 6Gbs N148RM

Drives4 * 3.5" hot swap SATA/SAS + 2 x 2.5"(int.)

Motherboard Size 6.7" * 6.7"(Mini ITX)

Dimension19 * 1.75 * 18.9inches / 482 * 44 * 480 (mm)

Inquiry

DESCRIPTION

VIDEO

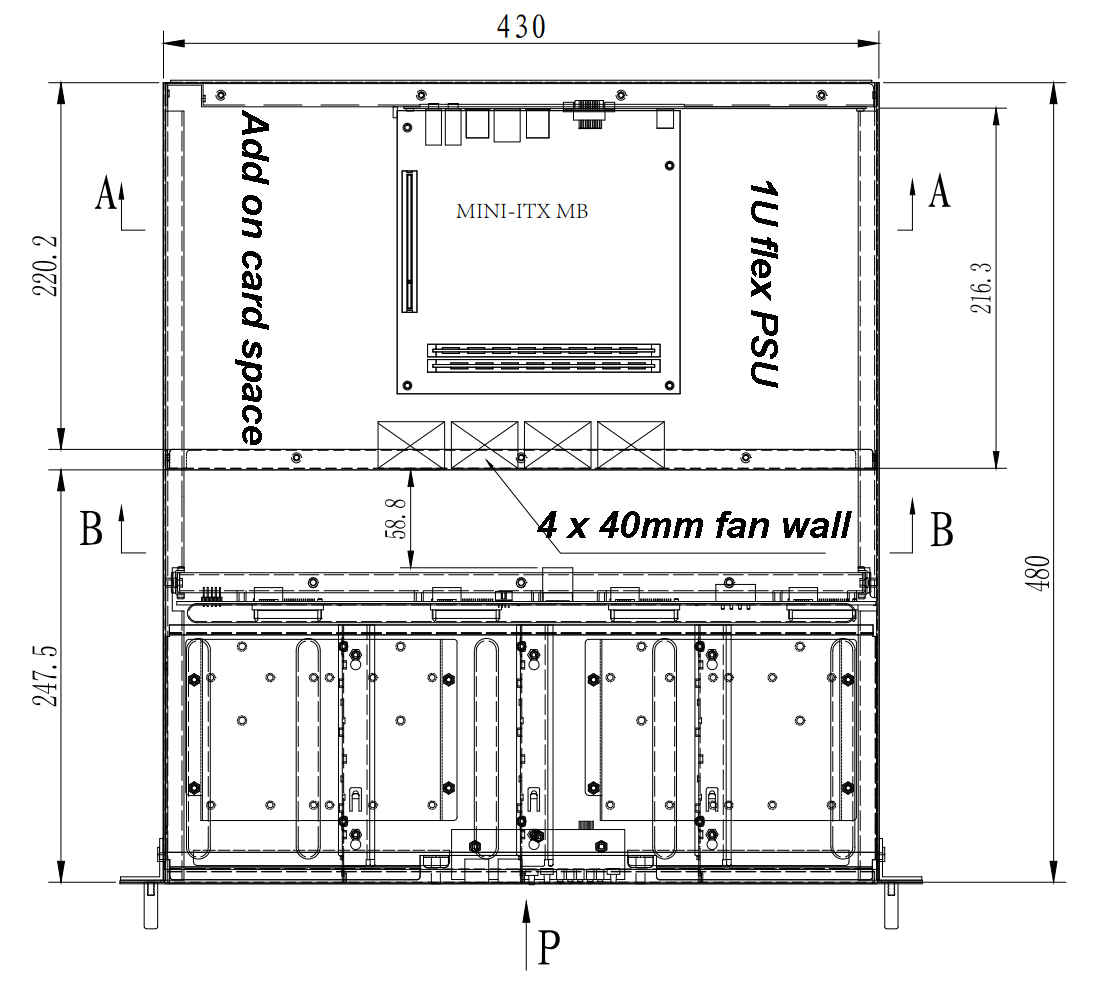

1U 3.5" 4-bay Trayless hotswap storage server rackmount mini-itx Chassis

  • 1U 4-bay compact form factor for branch offices and small businesses
  • Ideal for: K-12, and businesses with large file storage requirements

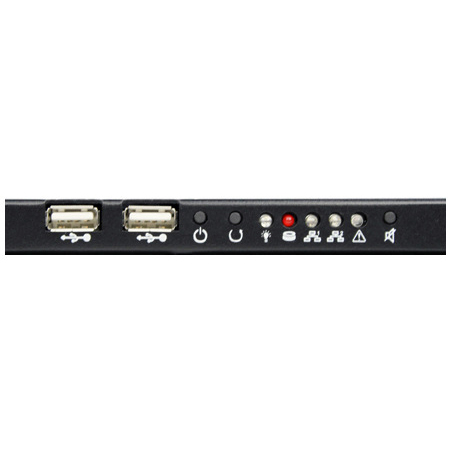

  • 2 x front access USB 2.0
  • 4 x 4CM fan wall


Introduction

KI-N148RM has the stylish appearance, the functionality and flexibility make storage server. As SAS / SATA / Mini-SAS technology has become a more cost effective solution, we provide SATA / SAS /mini SAS backplane to support both latest SAS and SATA hard drives.


Model Number           KI-N148RM
Dimension (W*H*D) 19" x 1.75" x 18.9"/ 482 x 44 x 480 (mm)
Motherboard Size 6.7" x 6.7"(Mini ITX)
Drive Bays 4 * 3.5" hot swap SATA/SAS + 2 x 2.5"(int.)
Indicators LEDs for Power & HDD & Lan
Switches 1 x Power +1 x Reset
PSU Type

 1U FLEX PSU

Expansion Slots 1 x PCI for riser card
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.2mm
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm

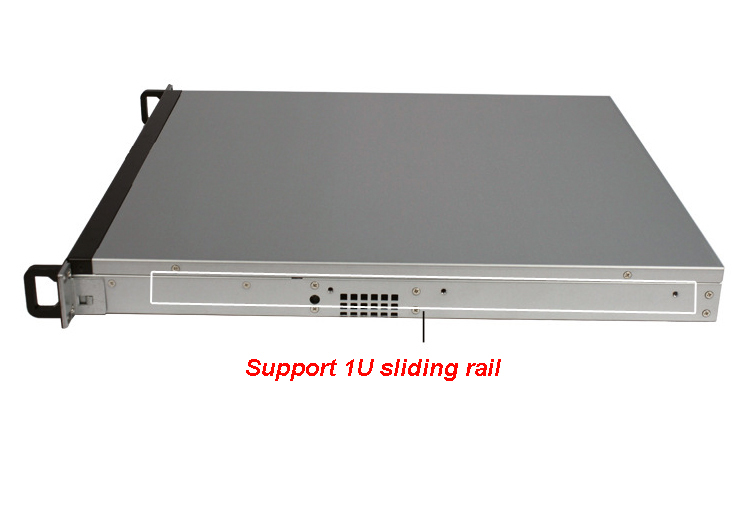

Sliding rail 18 or 26" 1U ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x USB2.0
Fan: 4 x 8cm fan
Packing size CBF / CBM 2.2 / 0.06
Packing N.W / G.W  7.5KGS / 9.6KGS
