Rackmount chassis Server case 19 inch mini-itx 4U 2 bay hotswap 6Gbs N1528RM

Drives2 * 3.5 hotswap + 2 * 2.5 (Int.)

Motherboard Size6.7 * 6.7 (mini-ITX)

Dimension19.00 * 3.5 * 11 inches / 482 * 68 * 28 (mm)

DESCRIPTION

VIDEO

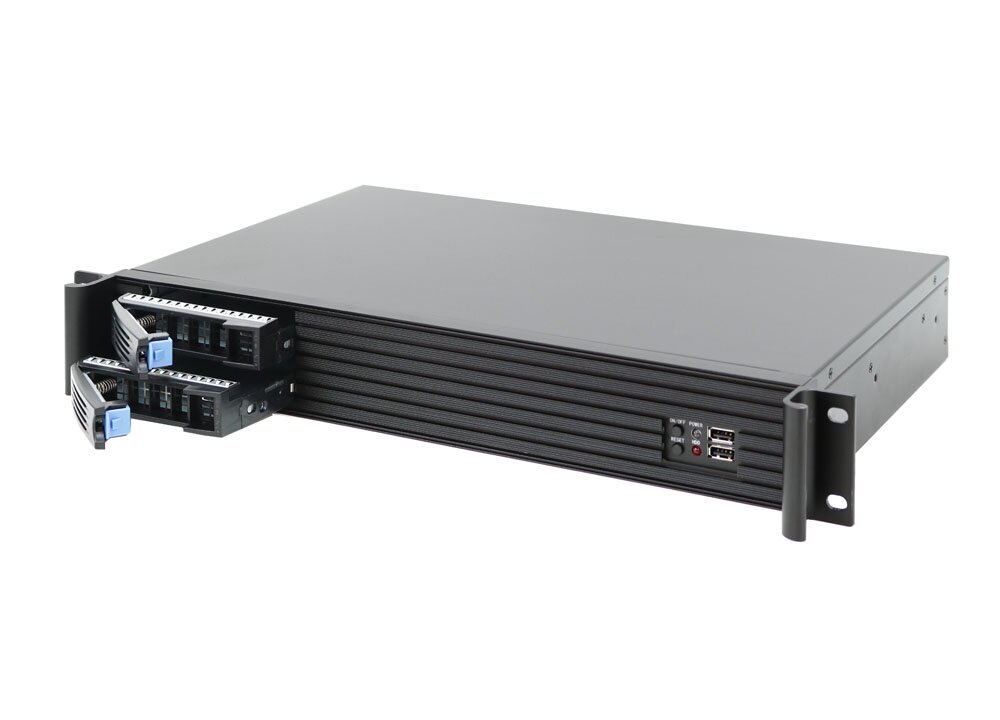

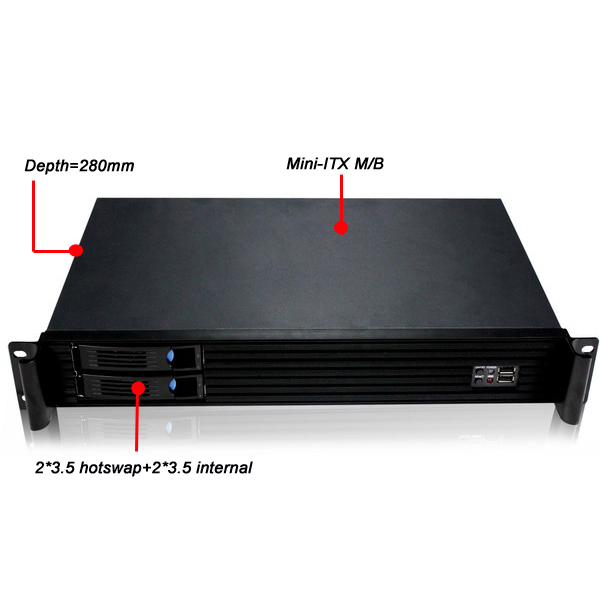

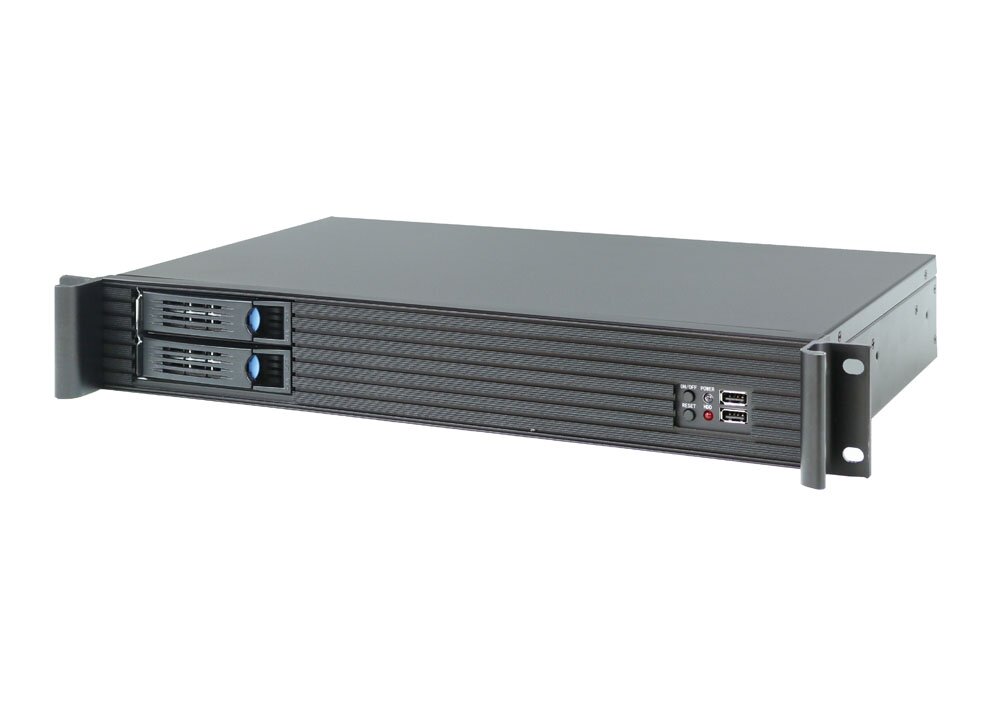

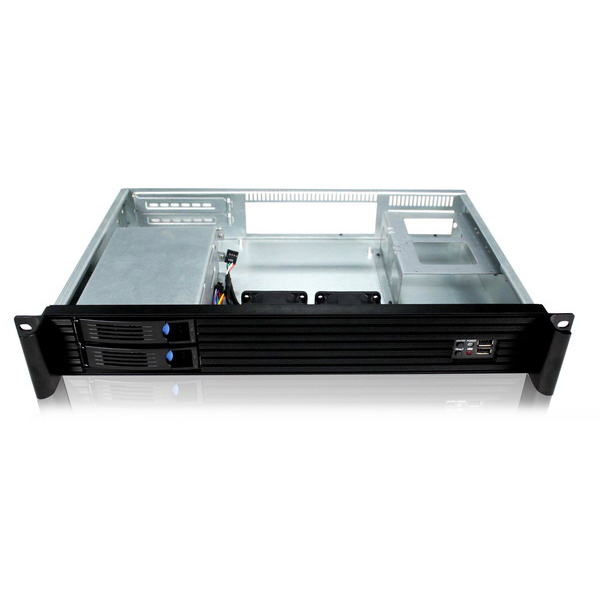

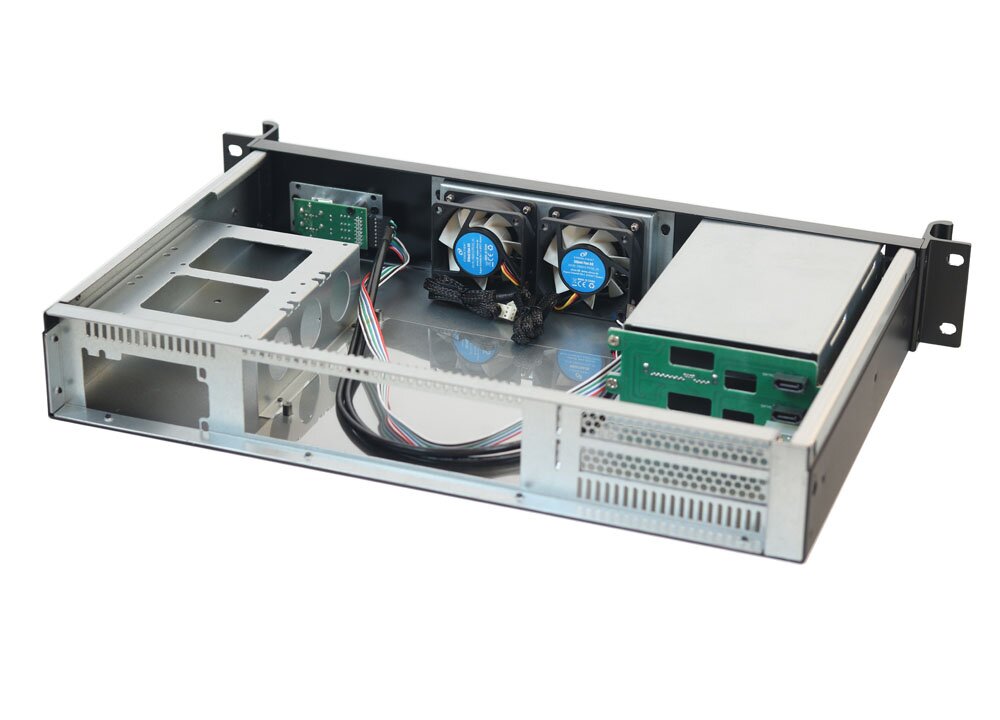

1.5U Leading industrial Trayless hotswap mini-ITX Chassis

  • Better cooling 2 x 60mm intake
  • 2 x 3.5 Hotswap + 2 x 2.5" (int.) drive bays
  • 2 x front access USB 2.0 or 3.0

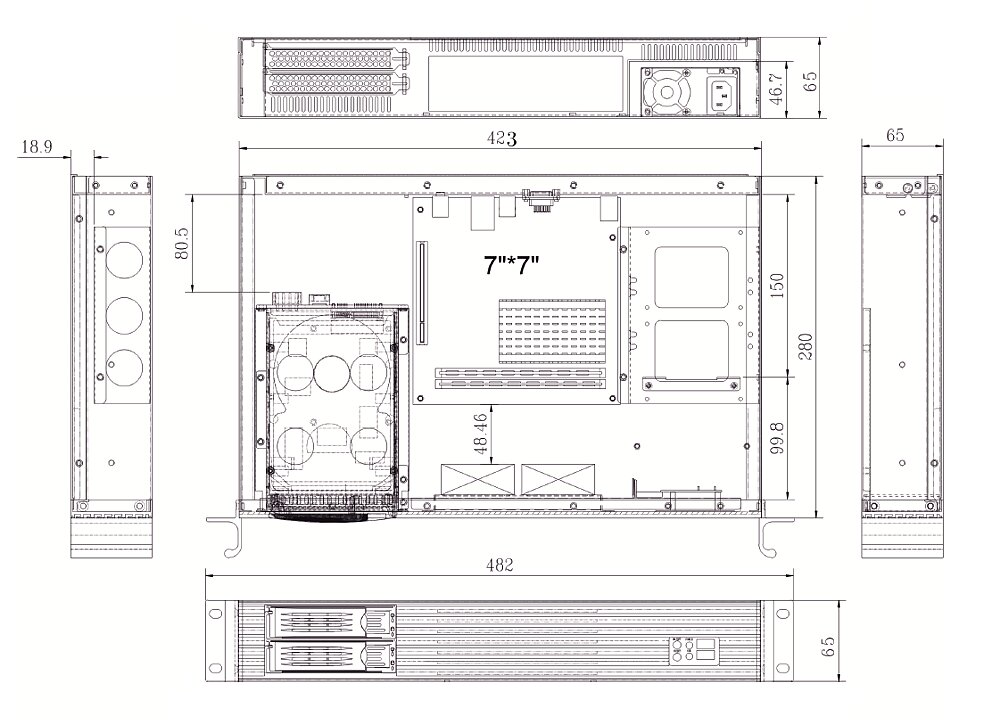

  • 2 x PCI slot for expansion  Datasheet & Drawing


Introduction

This 1.5U rackmount chassis Its unique thermal cooling solution fan can cool the system down while it runs at optimal level. enables standard I/O backplane for mini-itx motherboards, the tray-less two 3.5" and fix 2.5" drive cage maximizes data storage and backup functionality.


Model Number           KI-N1528R
Dimension (W*H*D) 19" x 2.63" x 11"/ 482 x 66.7 x 360 (mm)
Motherboard Size 6.7" x 6.7"(Mini ITX)
Drive Bays 2 x 3.5 Hotswap + 2 x 2.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 1U Flex or 1U PSU

Expansion Slots 2 x PCI slot for riser card
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.0mm
Sliding rail 18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB or 3.0USB
Fan: 2 x 6cm fan
Packing size CBF / CBM 1.8 / 0.05
Packing N.W / G.W  4.5KGS / 5.5KGS
