Rackmount chassis Server case 19 inch ATX microATX 3U N323

Drives2 * 5.25"+1 * 3.5"(ext.)+ 4 * 3.5" (int.)

Motherboard Size12" * 9.6" (ATX,micro Atx,miniITX)

Dimension19.00" * 5.25" * 15.35" / 482 * 133.3 *390 (mm)

Inquiry

DESCRIPTION

VIDEO

3U Compact Rackmount ATX Chassis support ATX Power Supply

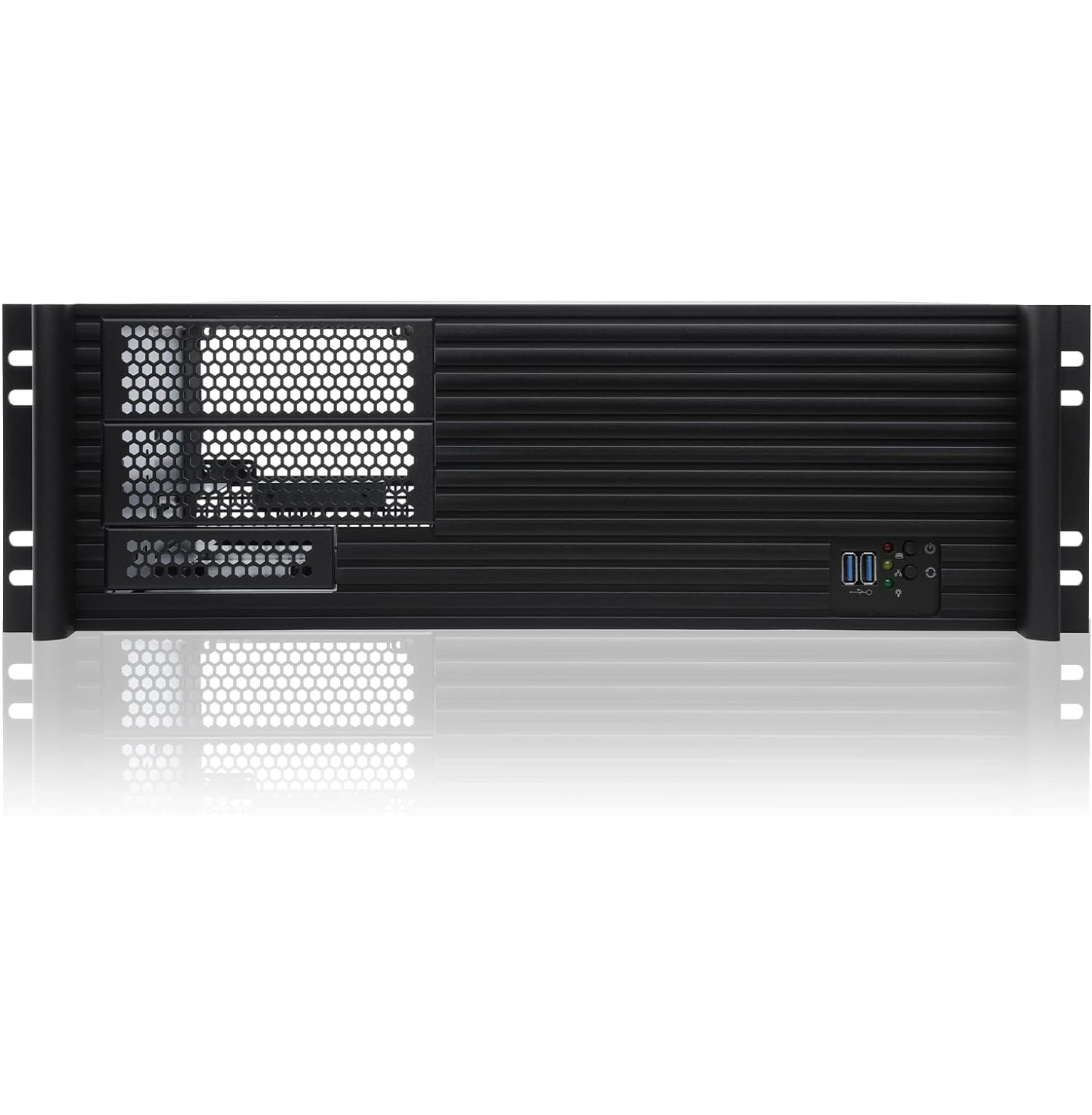

  • Stylish Aluminum front bezel and handles

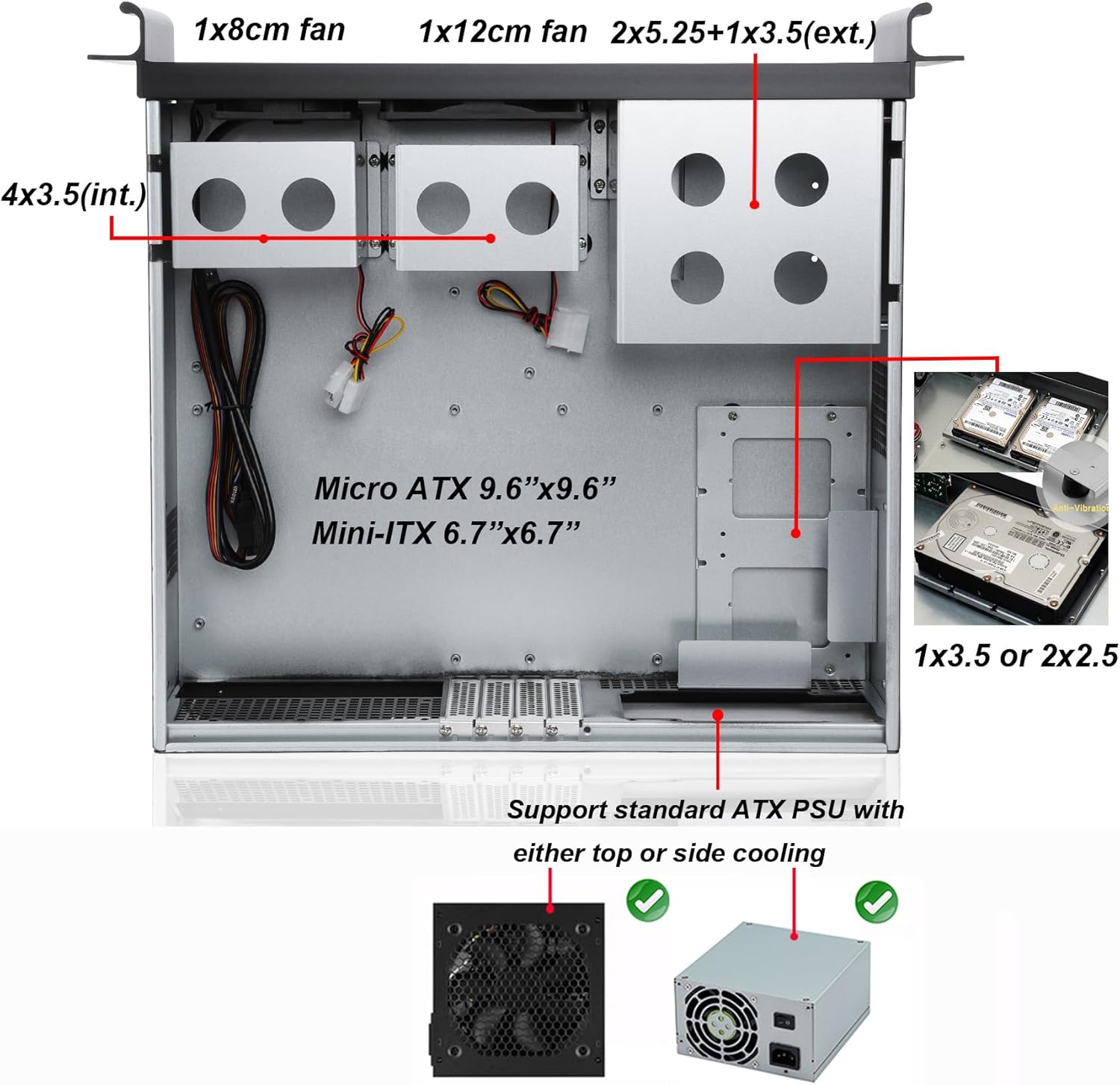

  • 2 x 5.25" + 1 x 3.5" (ext.) + 4 x 3.5" (int.) drive bays
  • 2 x front access USB 2.0 or 3.0 ports

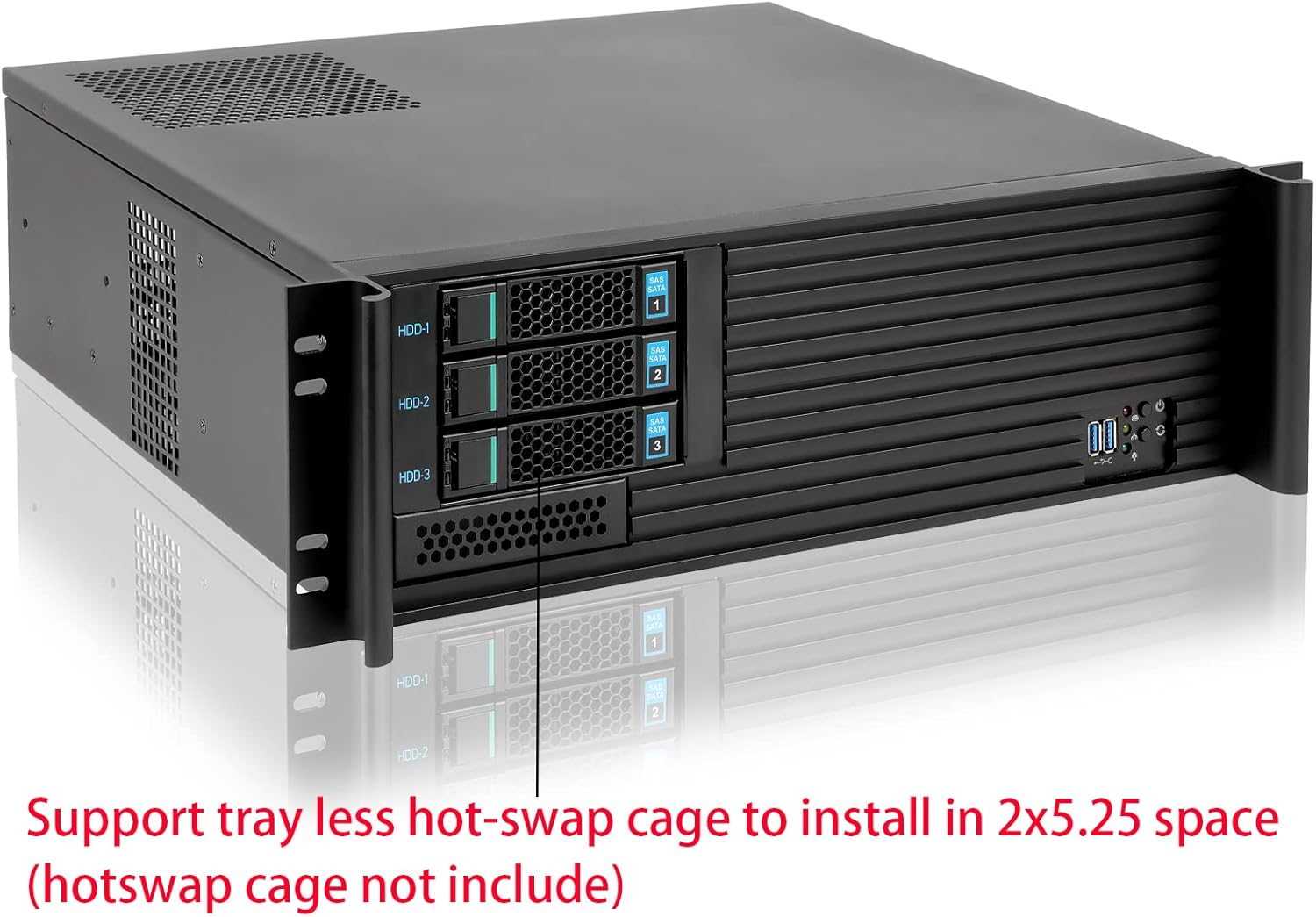

  • Wide range select for hotswap cage
  • Support 4 x full height Add on cards  datasheet&drawing


Introduction

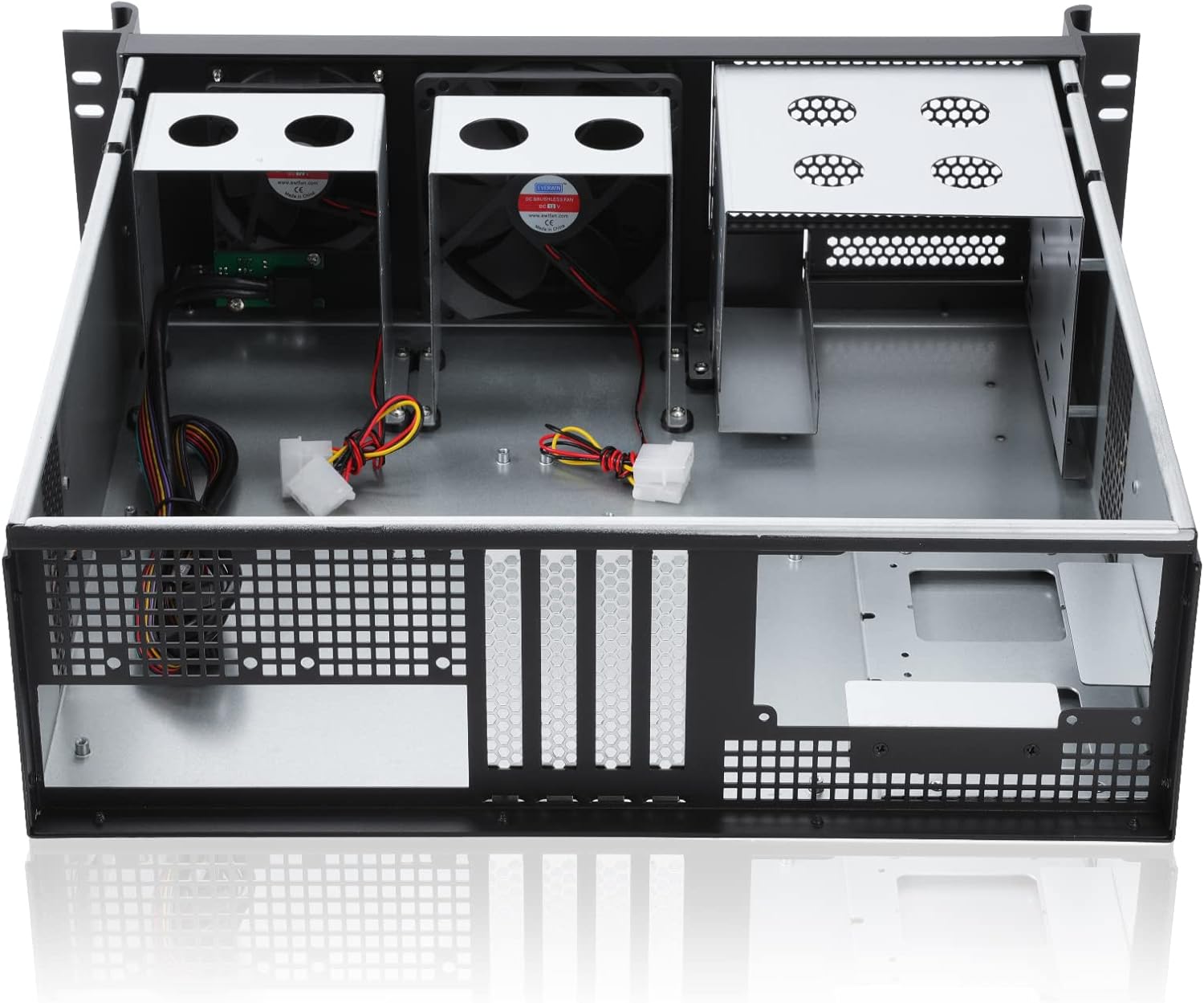

KI-N323 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 15.35" deep and has 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, It support standard ATX power supply to meet regular server system applications.


Model Number           KI-N323

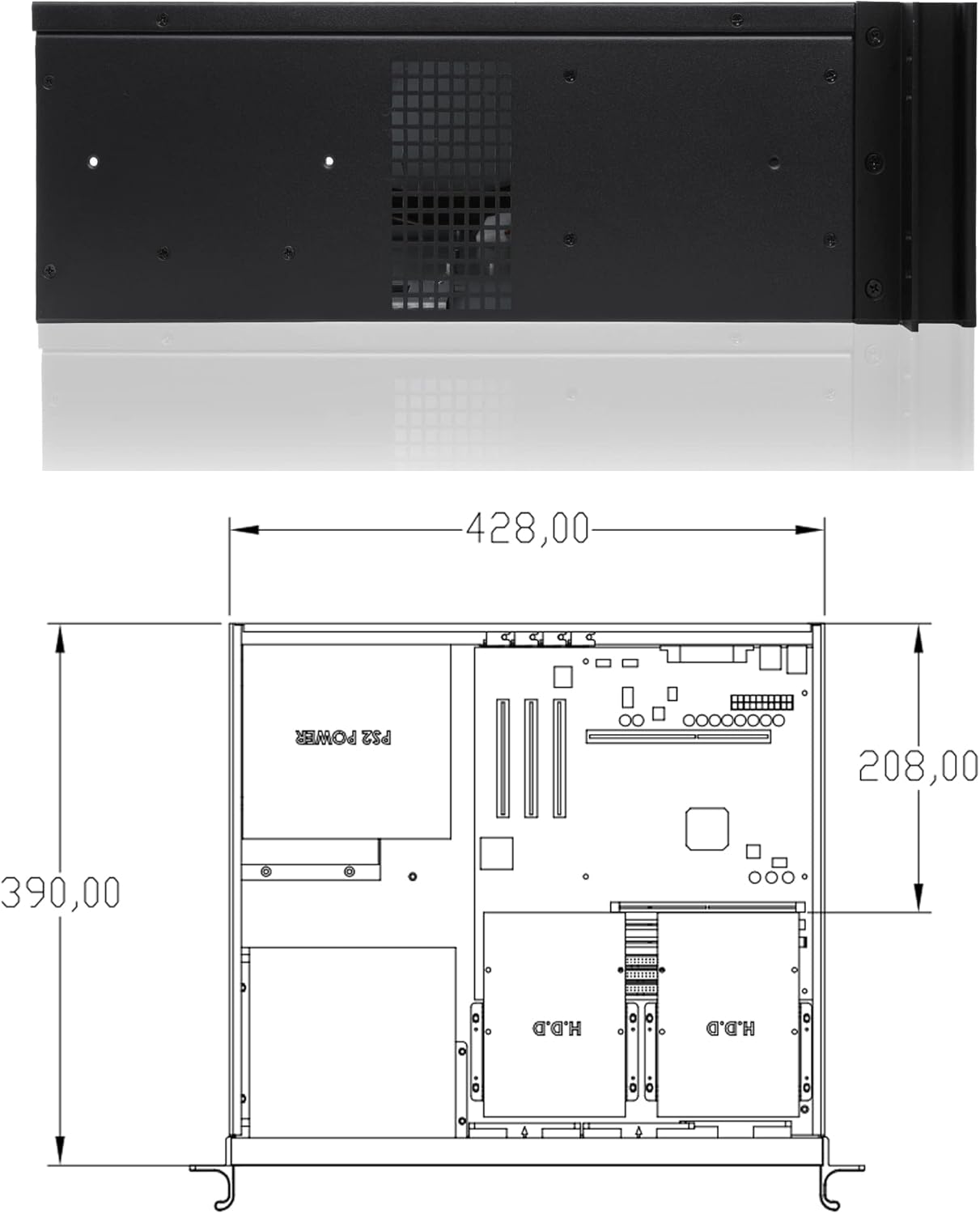

Dimension (W*H*D) 19" x 5.25" x 15.35"/ 482 x 133 x 390 (mm)
Motherboard Size 12" x 9.6" (ATX,Micro ATX or Mini ITX)
Drive Bays 2 x 5.25" + 1 x 3.5"(ext.) + 4 x 3.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 PS-2 ATX PSU

Expansion Slots 4 (full height)
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged steel 1.0mm
Sliding rail18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 1 x 12cm + 1x 8cm intake + 2 x 6cm fan (option)
Packing size CBF / CBM 2.5 / 0.07
Packing N.W / G.W  6.5KGS / 7.5KGS
