Rackmount chassis Server case 19 inch ATX microATX 3U two door N3052
3U Compact two door Rackmount ATX Chassis support ATX Power Supply

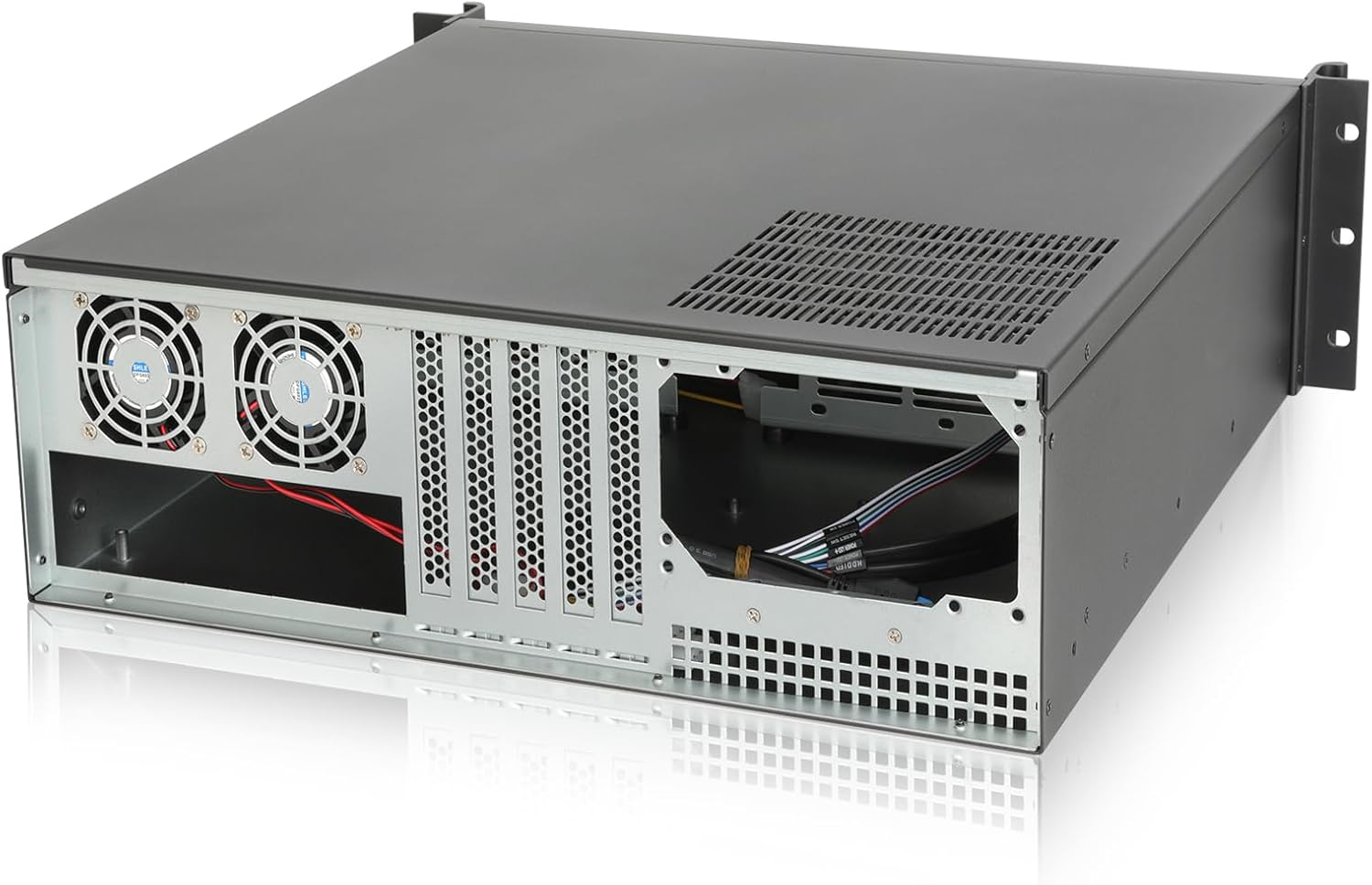

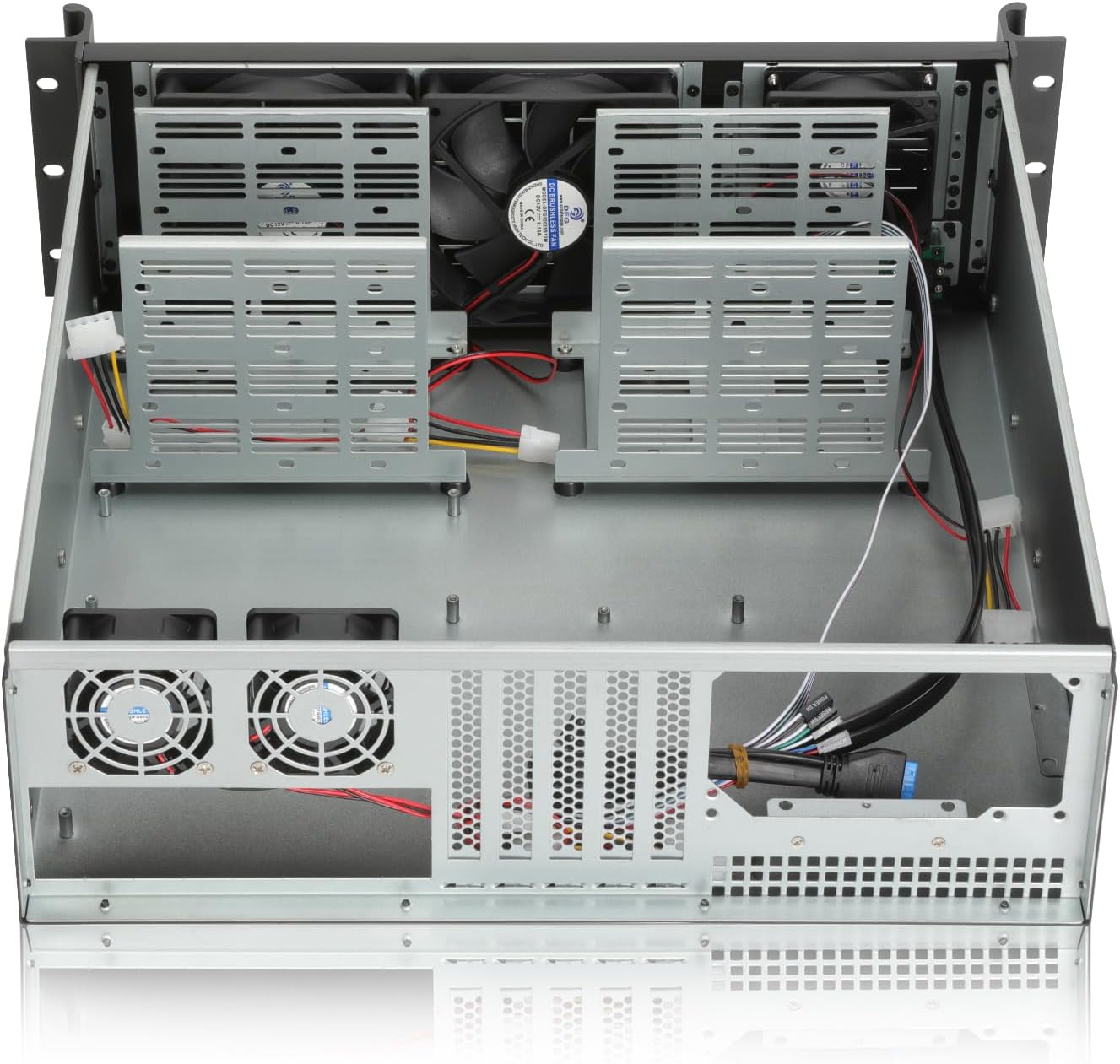

Introduction KI-N3052 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 5 full-height add-on cards. This chassis is only 15.35" deep and has two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, It support standard ATX power supply to meet regular server system applications. |
| Model Number | KI-N323 |
| Dimension (W*H*D) | 19" x 5.25" x 15.35"/ 482 x 133 x 390 (mm) |
| Motherboard Size | 12" x 9.6" (ATX,Micro ATX or Mini ITX) |

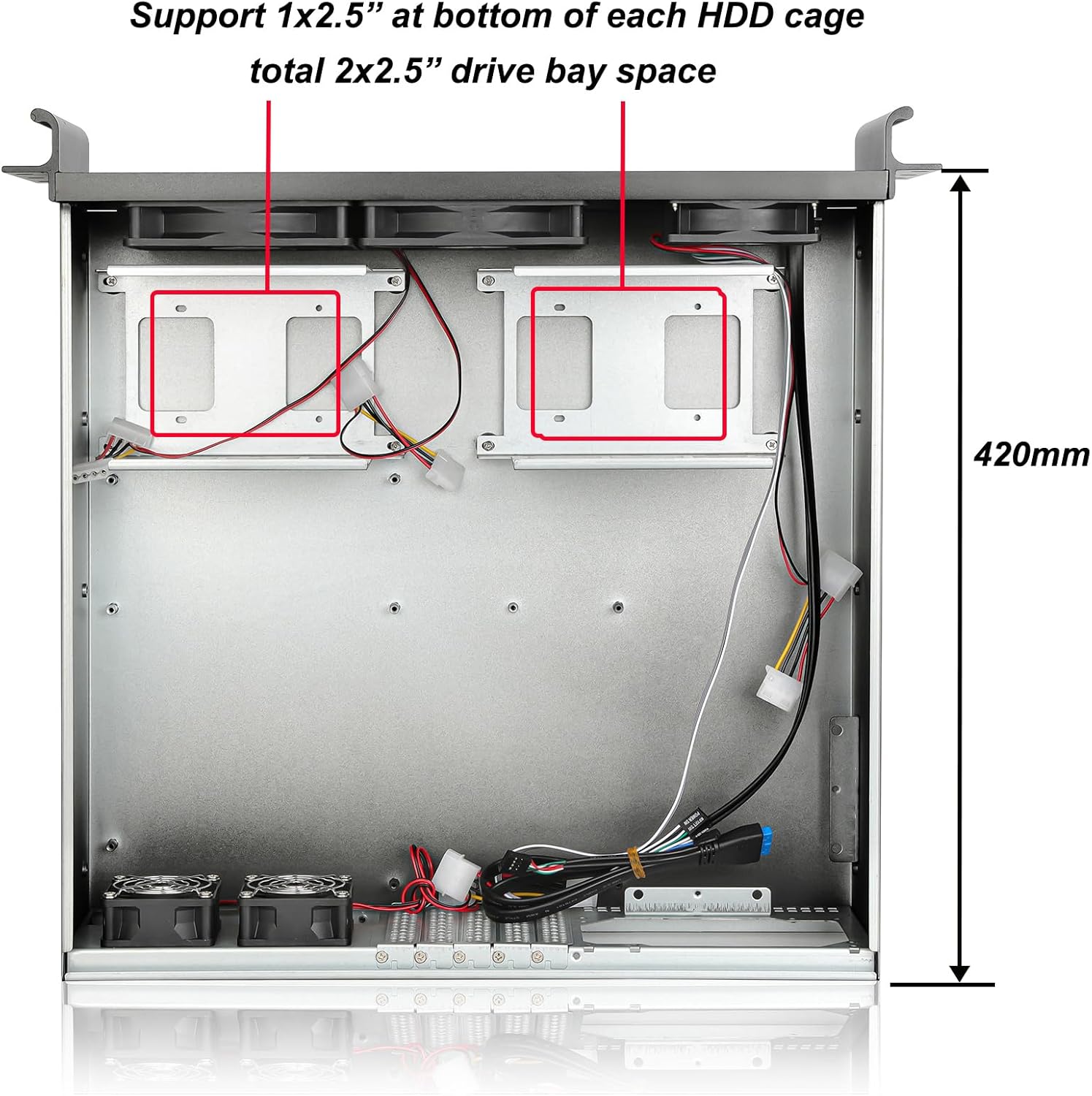

| Drive Bays | 2 x 5.25" + 1 x 3.5"(ext.) + 6 x 3.5" (int.) |
| Indicators | LEDs for Power & HDD |
| Switches | 1 x Power +1 x Reset |

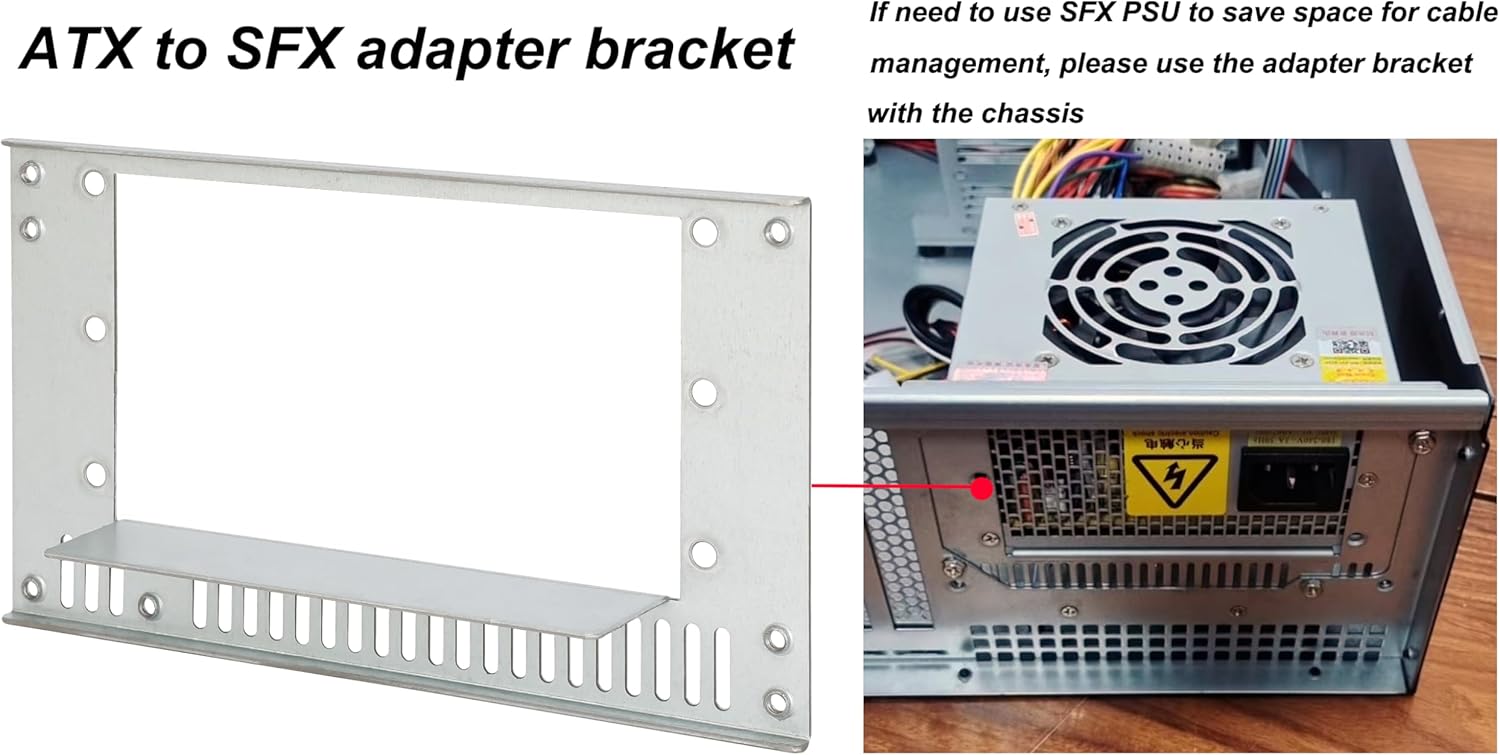

| PSU Type | PS-2 ATX PSU |
| Expansion Slots | 5 (full height) |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material Construction | Heavy-duty & Rugged steel 1.2mm |
| Sliding rail | 18" ball bearing sliding rail (option) |
| Color of Main Chassis | Black |
| Front Connector | 2 x 2.0 USB |
| Fan: | 2x 8cm intake + 2 x 6cm fan (option) |
| Packing size CBF / CBM | 2.8 / 0.08 |
| Packing N.W / G.W | 8.5KGS / 9.5KGS |
| Notes |
