Rackmount chassis Server case 19 inch EATX 3U N355

Drives4 * 5.25 + 6 * 3.5"(int.)

Motherboard Size12 * 13 (EATX, ATX, micro ATX)

Dimension19.00 * 5.25 * 21.65 inches / 482 * 133.3 * 550 (mm)

Inquiry

DESCRIPTION

VIDEO

3U Compact Rackmount EATX Chassis support ATX Power Supply

  • Heavy-duty & Rugged SGCC steel 1.2mm
  • 4  x 5.25" + 6 x 3.5"  (int.) drive bays
  • 2 x front access USB 2.0 or 3.0 ports
  • Wide range select for hotswap cage
  • Support 7 x full height Add on cards  Datasheet&drawing


Introduction

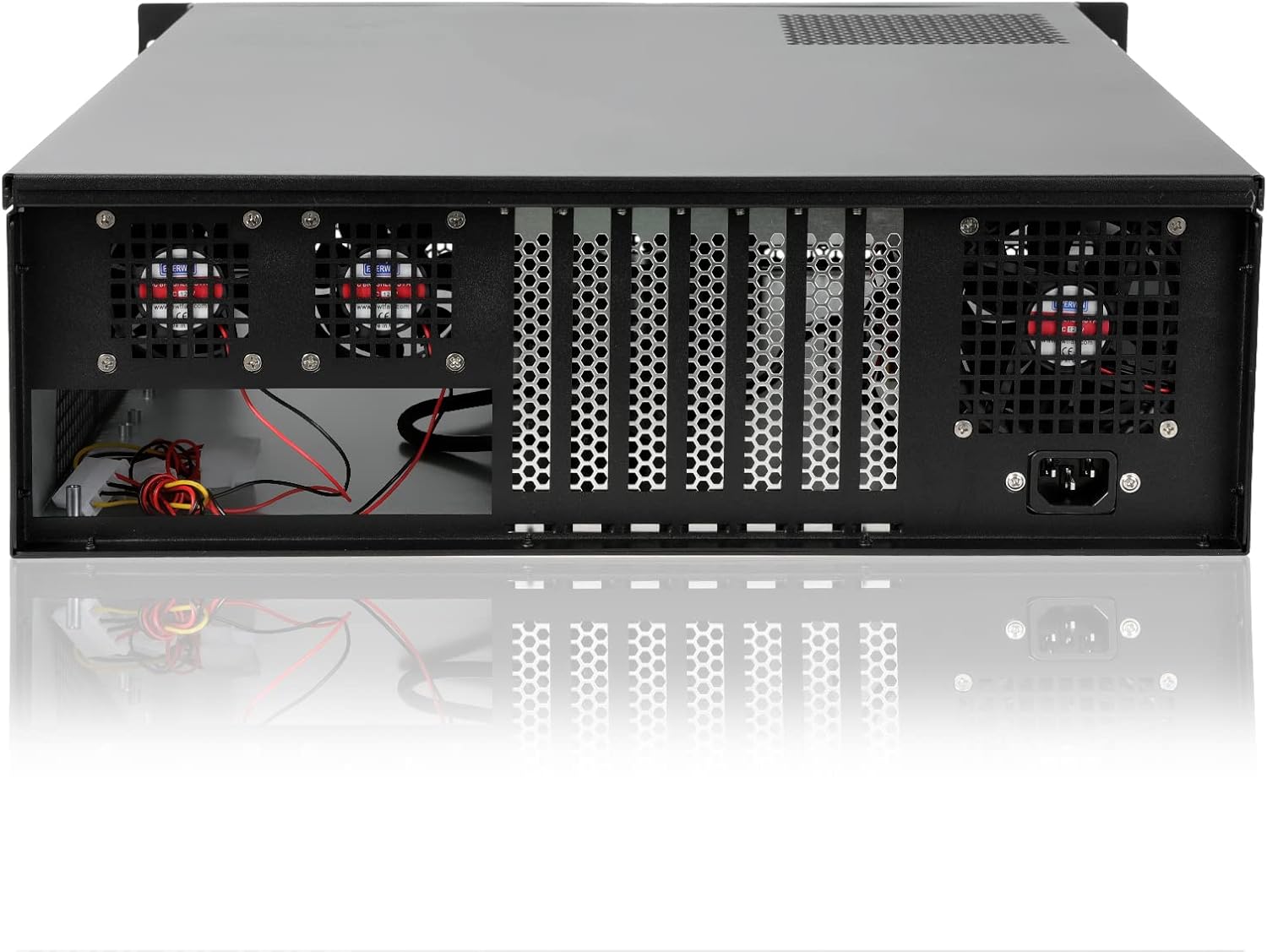

KI-N355 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all EATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis has two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, It support standard ATX power supply to meet regular server system applications.


Model Number           KI-N355

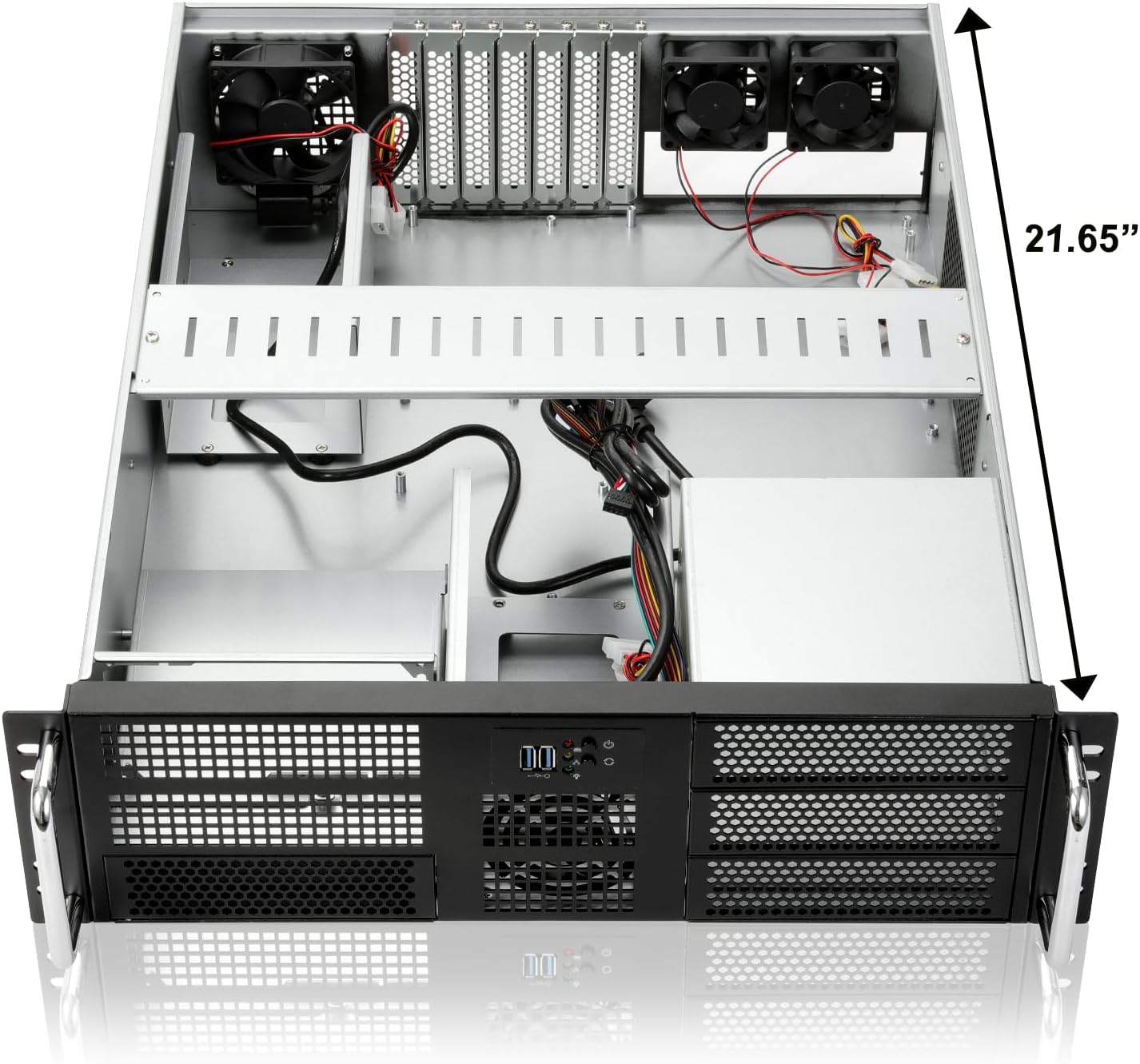

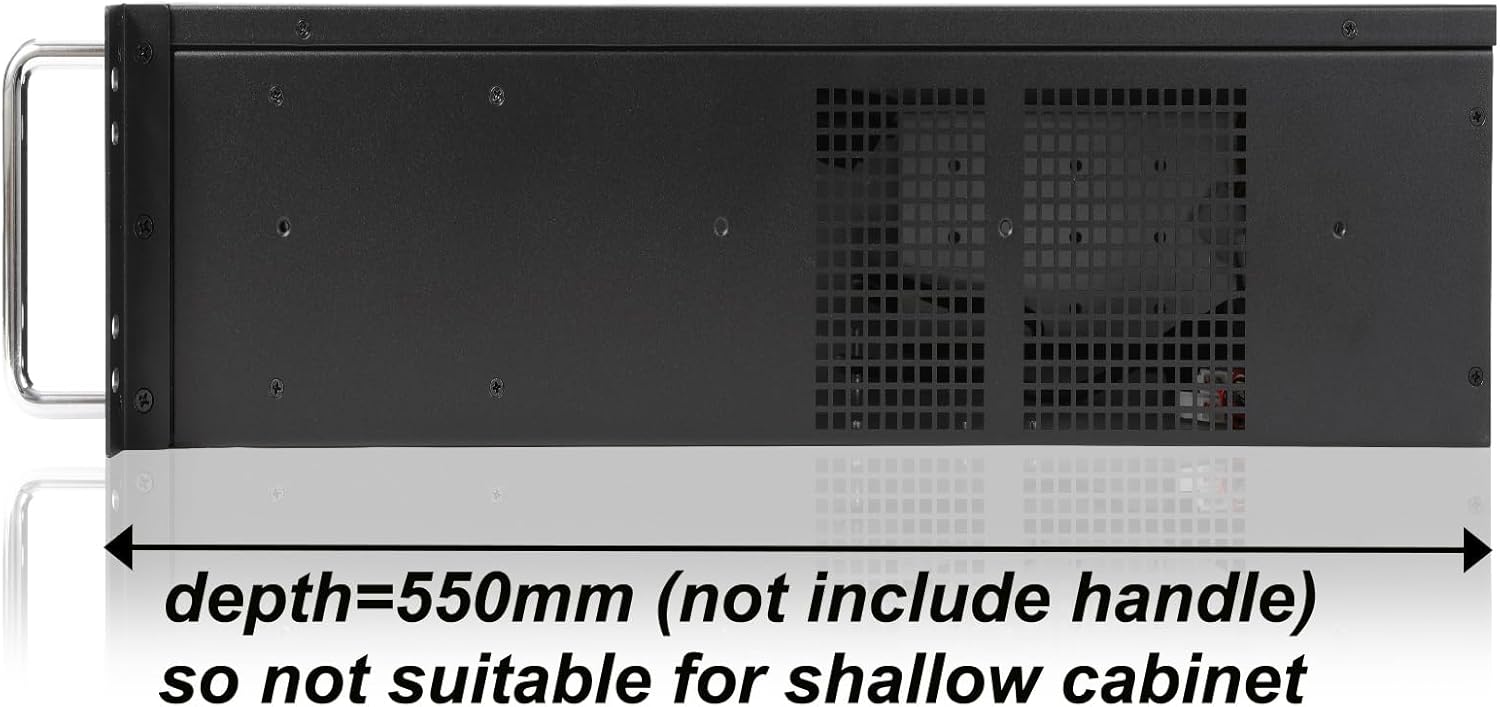

Dimension (W*H*D) 19" x 5.25" x 21.65"/ 482 x 133 x 550 (mm)
Motherboard Size 12" x 13" (EATX, ATX )
Drive Bays 4 x 5.25" + 6 x 3.5"
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 PS-2 ATX PSU

Expansion Slots 7 (full height)
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.2mm
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm
Sliding rail26" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 2 x 8cm intake + 2 x 6cm fan (option)
Packing size CBF / CBM 3.5 / 0.1
Packing N.W / G.W  10KGS / 12KGS
