Rackmount chassis Server case 19 inch EATX ATX 3U N338A

Drives Max to 9 * 3.5(int.)

Motherboard SizeATX (12*9.6) =>9*3.5" (int.) / EATX (12*13) =>3*3.5" (int.)

Dimension19.00 * 5.25 * 15 inches / 482.6 * 133.4 * 380 mm

Inquiry

DESCRIPTION

VIDEO

3U Compact Rackmount EATX Chassis support ATX Power Supply

  • Aluminum front bezel and handles
  • 3 x 3.5" for EATX M/B / 9 x 3.5"  (int.) for ATX M/B /
  • 2 x front access USB 2.0 or 3.0 ports

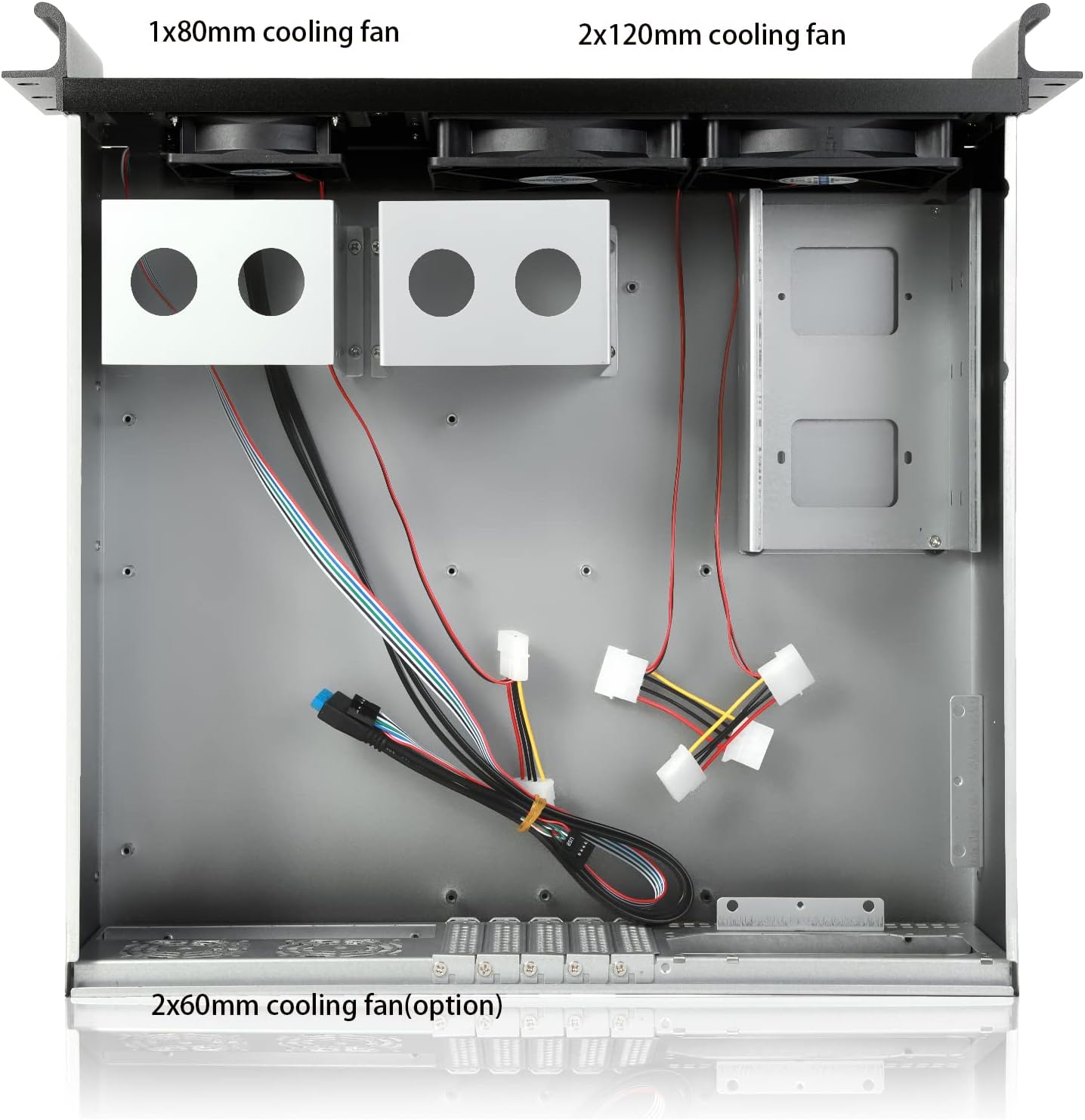

  • 3 x 80mm intake + 2 x 60mm cooling fan at rear
  • Support 4 x full height Add on cards  datasheet&drawing


Introduction

KI-N338A is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all EATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 15.35" deep and has threeo 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, It support standard ATX power supply or mini-redundant PSU to meet regular server system applications.


Model Number           KI-N338A
Dimension (W*H*D) 19" x 5.25" x 15" / 482 x 133 x 380 (mm)
Motherboard Size 12" x 13" (EATX,ATX,micro ATX)
Drive Bays 3 x 3.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type

 PS-2 ATX PSU

Expansion Slots 4 (full height)
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.2mm
Sliding rail18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 3 x 8cm intake + 2 x 6cm fan (option)
Packing size CBF / CBM 2.5 / 0.07
Packing N.W / G.W  6.5KGS / 7.5KGS
NotesUse EATX M/B support 3 x 3.5" / use ATX or Micro ATX M/B  support 9 x 3.5" drive bay
