Rackmount chassis Server case 19 inch dual mini-itx 2U M236

Drives4 * 3.5 (Int.)

Motherboard Size 6.7 * 6.7 (mini-ITX)

Dimension19.00 * 3.5 * 14.17 inches / 482.6 * 88.9 * 360 mm

Inquiry

DESCRIPTION

VIDEO

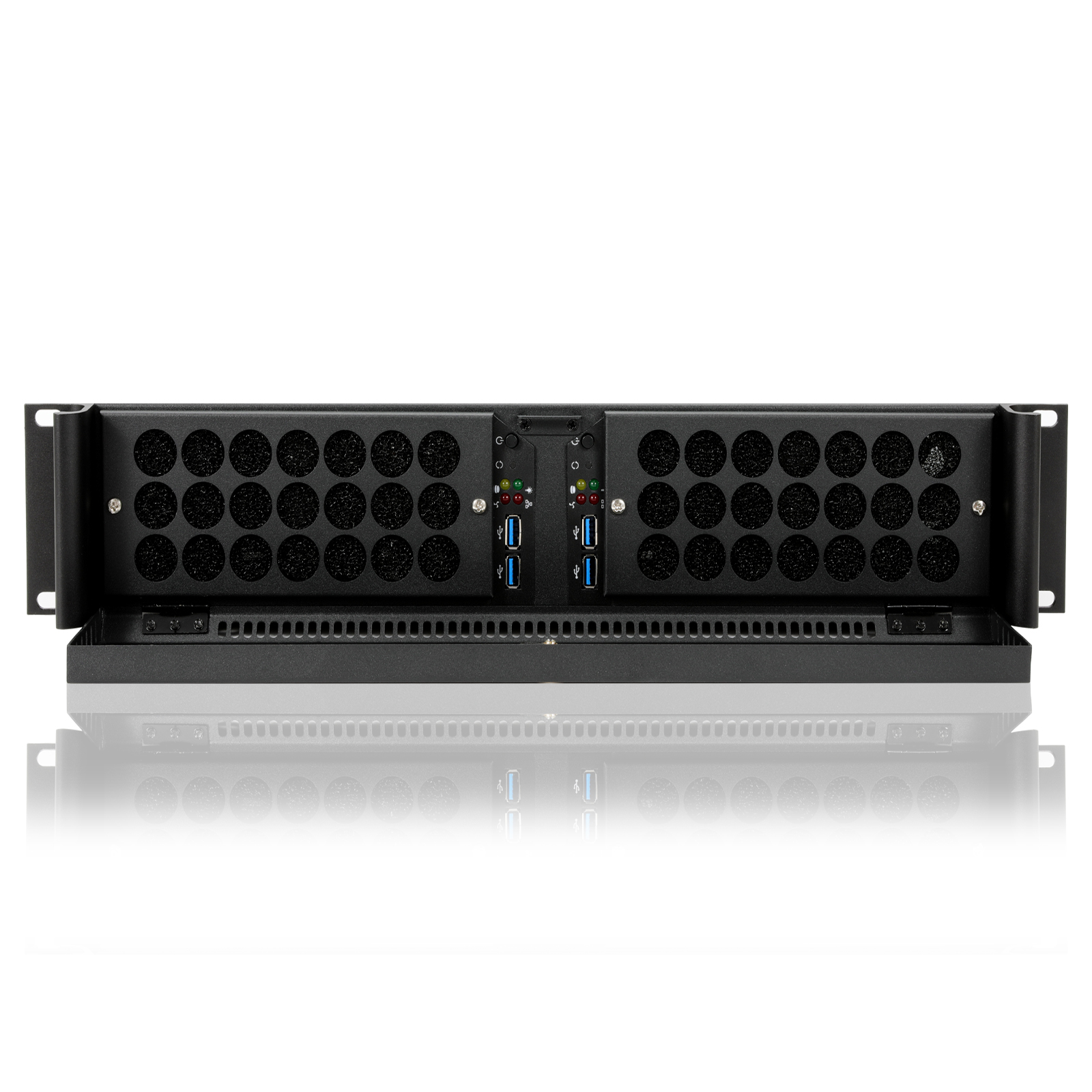

2U Rackmount compact Dual mini-itx Chassis

  • 4 x 3.5" (int.)
  • Support two mini-itx mother board for server or waves lv1
  • 4 x front access USB 2.0
  • 4 x 80mm cooling fan
  • Keylock door for security




Introduction

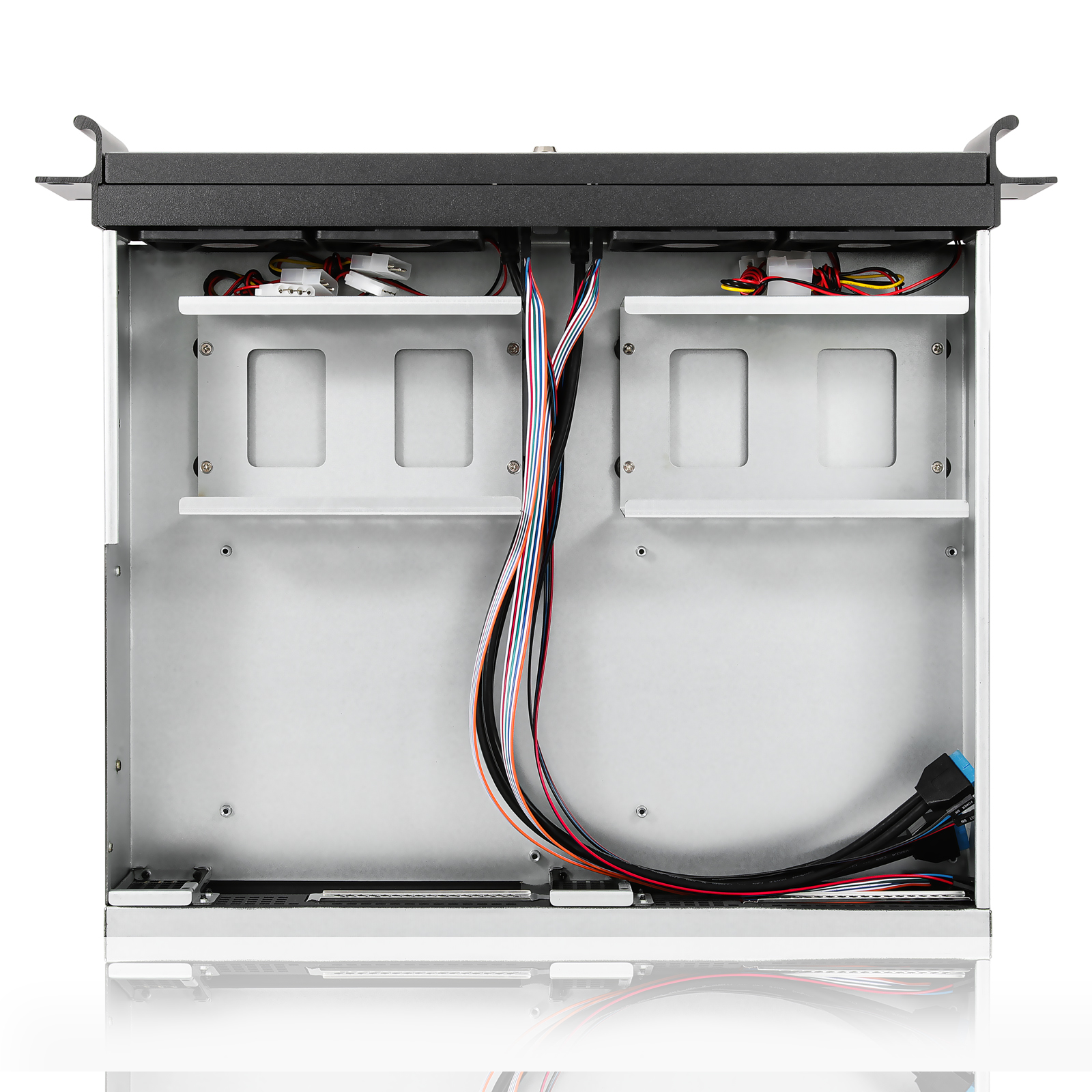

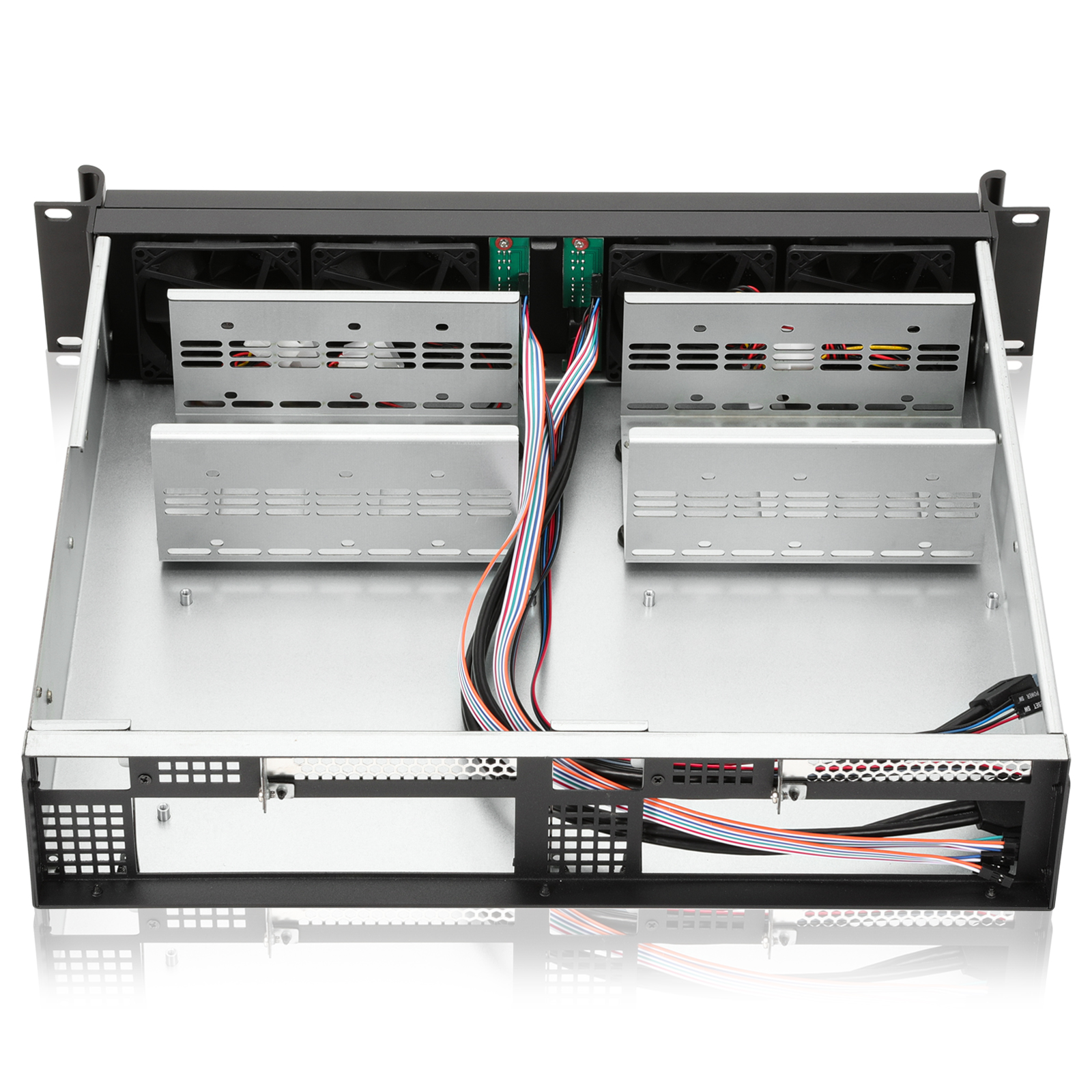

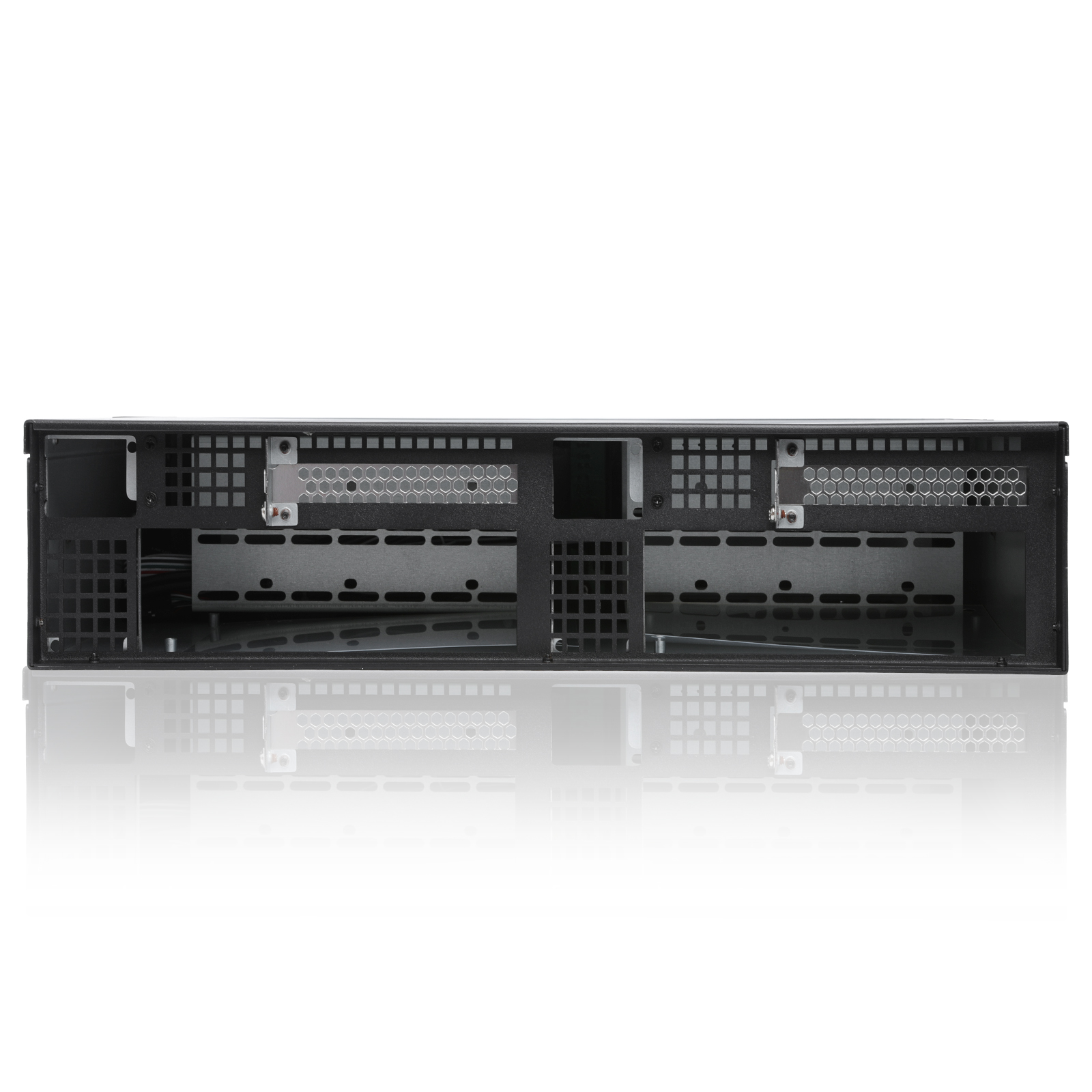

M236 is a reliable and stable 2U-high 15.5" depth industrial computer chassis. The chassis size supports dual mini-ITX motherboard and the backplane supports 2 PCI add-on cards, suit for server or wave lv1 applications, This chassis is equipped with 4 x 80mm cooling fans for front intake air ventilation.


Model Number           KI-M236
Dimension (W*H*D) 19" x 3.5" x 14.17"/ 482 x 89 x 360 (mm)
Motherboard Size Two 6.7" x 6.7" (Mini ITX)
Drive Bays 4 x 3.5"
Indicators LEDs for Power & HDD
Switches 2 x Power +2 x Reset
PSU Type

 2 x 1U Flex PSU

Expansion Slots 2 slot PCI slot (for riser card)
Material of Front Bezel  Heavy-duty & Rugged SGCC steel 1.0mm
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged SGCC steel 1.0mm
Sliding rail 18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 4 x 2.0 USB
Fan: 4 x 8cm fan
Packing size CBF / CBM 2.3 / 0.06
Packing N.W / G.W    5.5KGS / 6.5KGS
Notes Optional riser card
