Rackmount chassis Server case 19 inch mini-itx 1U N125

Drives 1* 3.5 or 2* 2.5 (Int.)

Motherboard Size6.7 * 6.7 (mini-ITX)

Dimension19.00 * 1.75 * 9.84 inches / 482.6 * 44.5 * 250 mm

Inquiry

DESCRIPTION

VIDEO

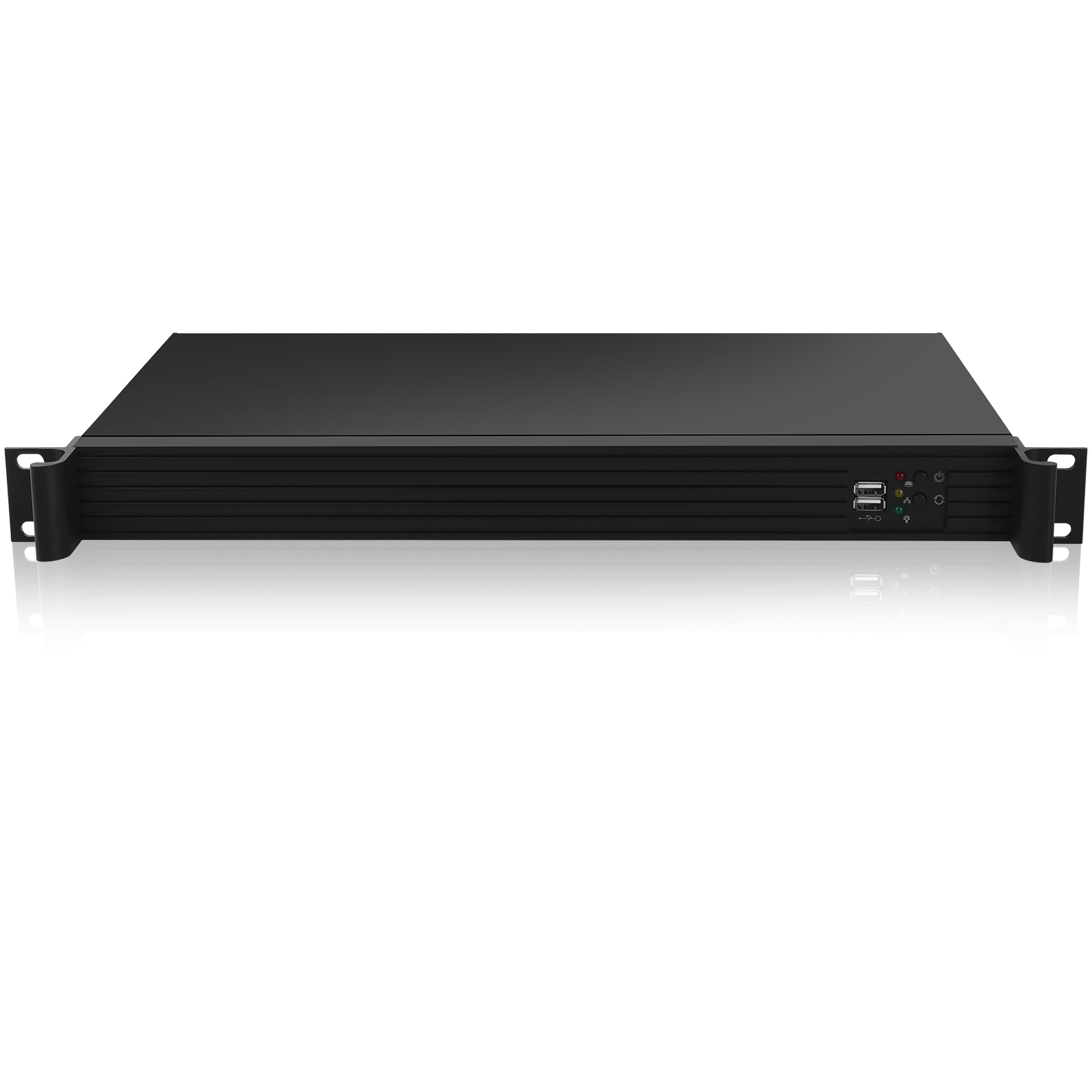

1U Rackmount compact mini-itx Chassis

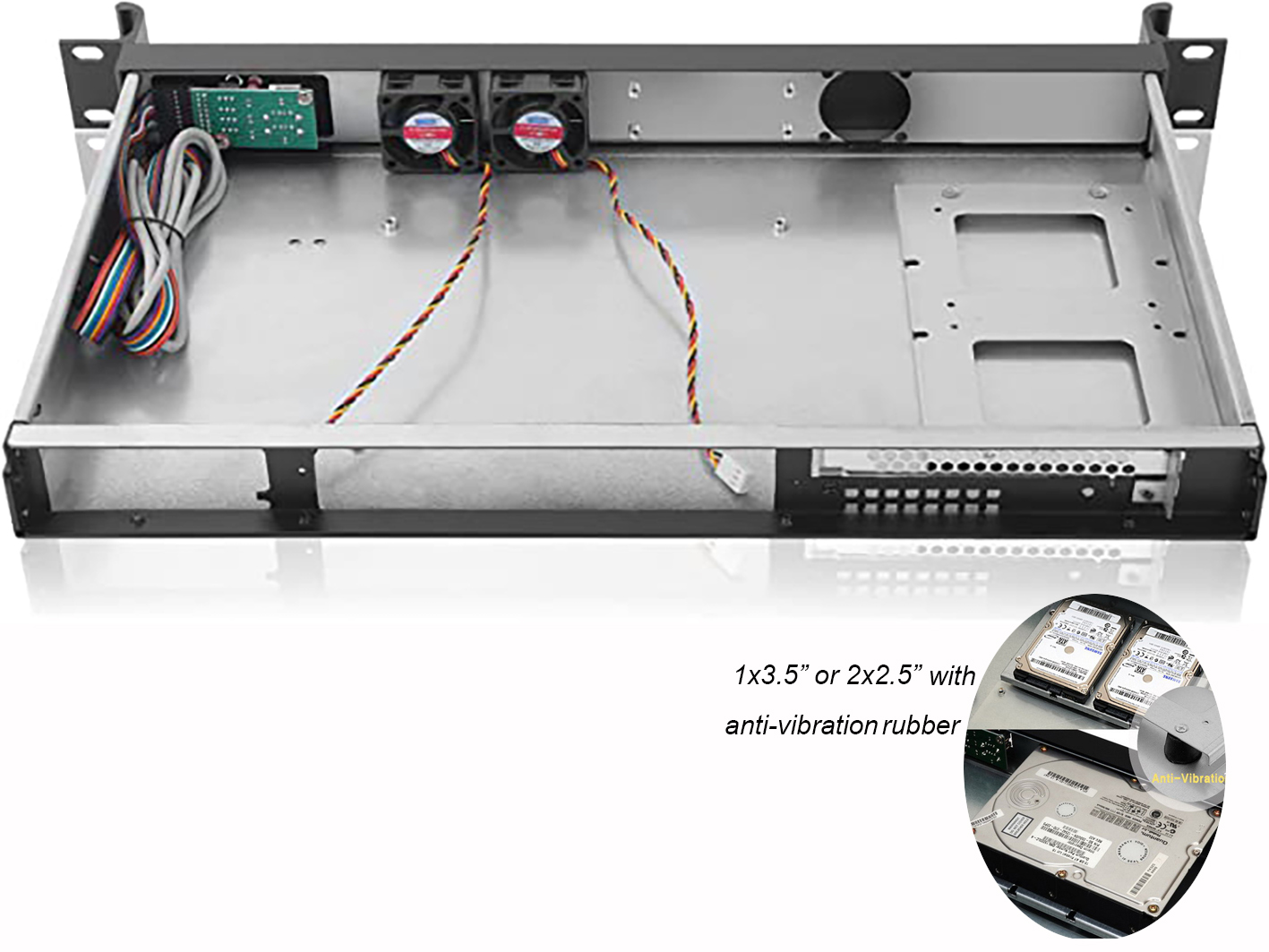

1 x 3.5 or 2 x 2.5（int.)
Universal I/O plate support standard I/O interfaces can be customized
2 x front access USB 2.0 (USB3.0 option)
Easy change to desktop case

Datasheet&drawing

Introduction

KI-N125 is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drive with a mini-ITX motherboard. D-118-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Model Number	KI-N125
Dimension (WHD)	19" x 1.75" x 9.84"/ 482 x 44 x 250 (mm)
Motherboard Size	6.7" x 6.7" (Mini ITX)
Drive Bays	1 x 3.5" or 2 x 2.5" (int.)
Indicators	LEDs for Power & HDD
Switches	1 x Power +1 x Reset
PSU Type	1U Flex PSU
Expansion Slots	1 slot PCI slot (for riser card)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material Construction	Heavy-duty & Rugged SGCC steel 1.0mm
CPU Cooler	1U CPU Cooler LGA 115x socket (option)
Color of Main Chassis	Black
Front Connector	2 x 2.0 USB (Option USB3.0)
Fan:	2 x 4cm fan
Packing size CBF / CBM	1.1 / 0.03
Packing N.W / G.W	3.2KGS / 4.0KGS
Notes	Optional riser card
