Rackmount chassis Server case 19 inch mini-itx 1.5U N1525
1.5U Leading industrial compact Rackmount mini-ITX Chassis

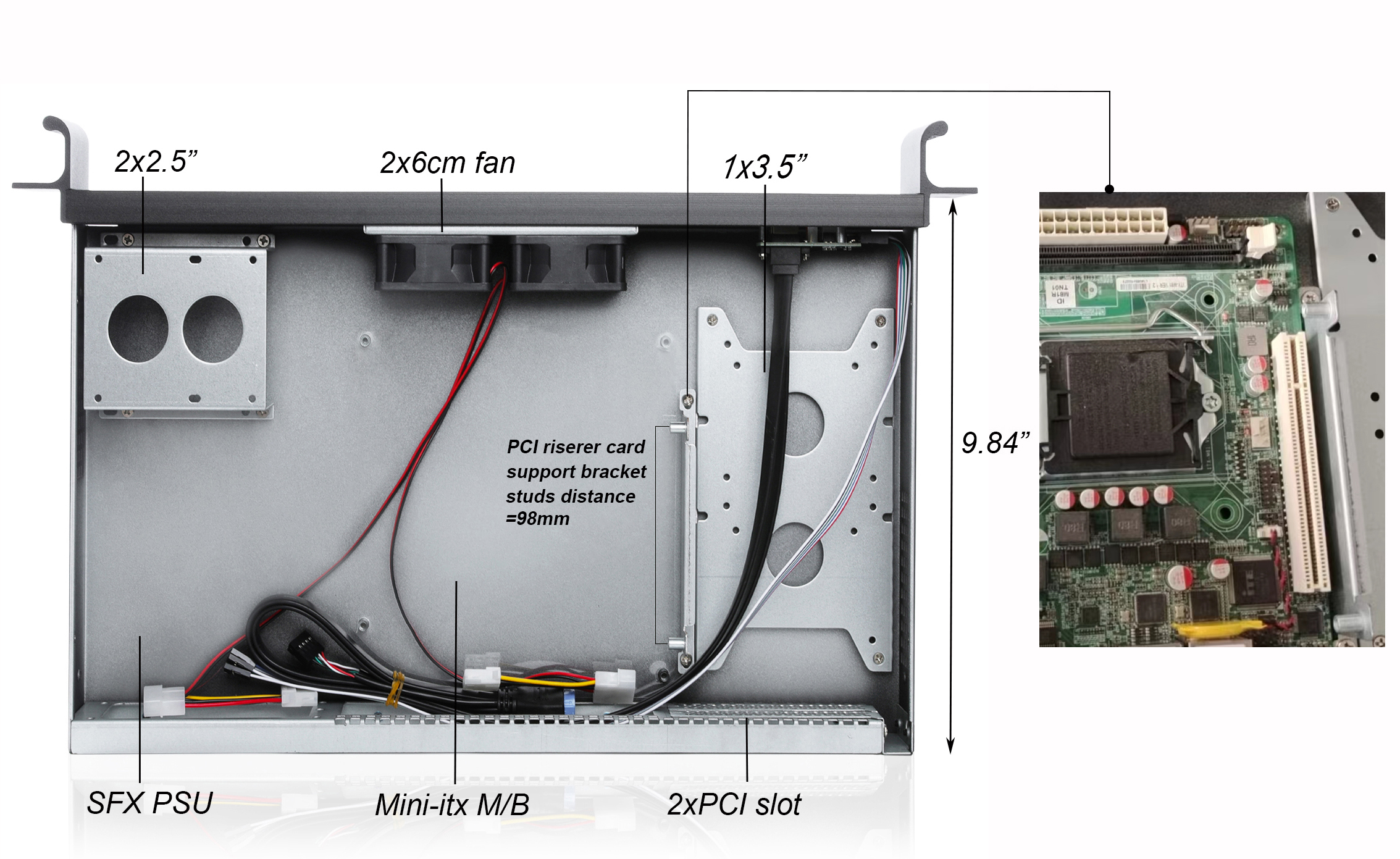

Introduction This 1.5U rackmount chassis only with deepth 9.84",Its unique thermal cooling solution fan can cool the system down while it runs at optimal level. enables standard I/O backplane for mini-itx motherboards, the chassis include 1x 3.5" and fix 2.5" drive cage for regular server system, and support SFX Power Supply |
| Model Number | KI-N1525 |

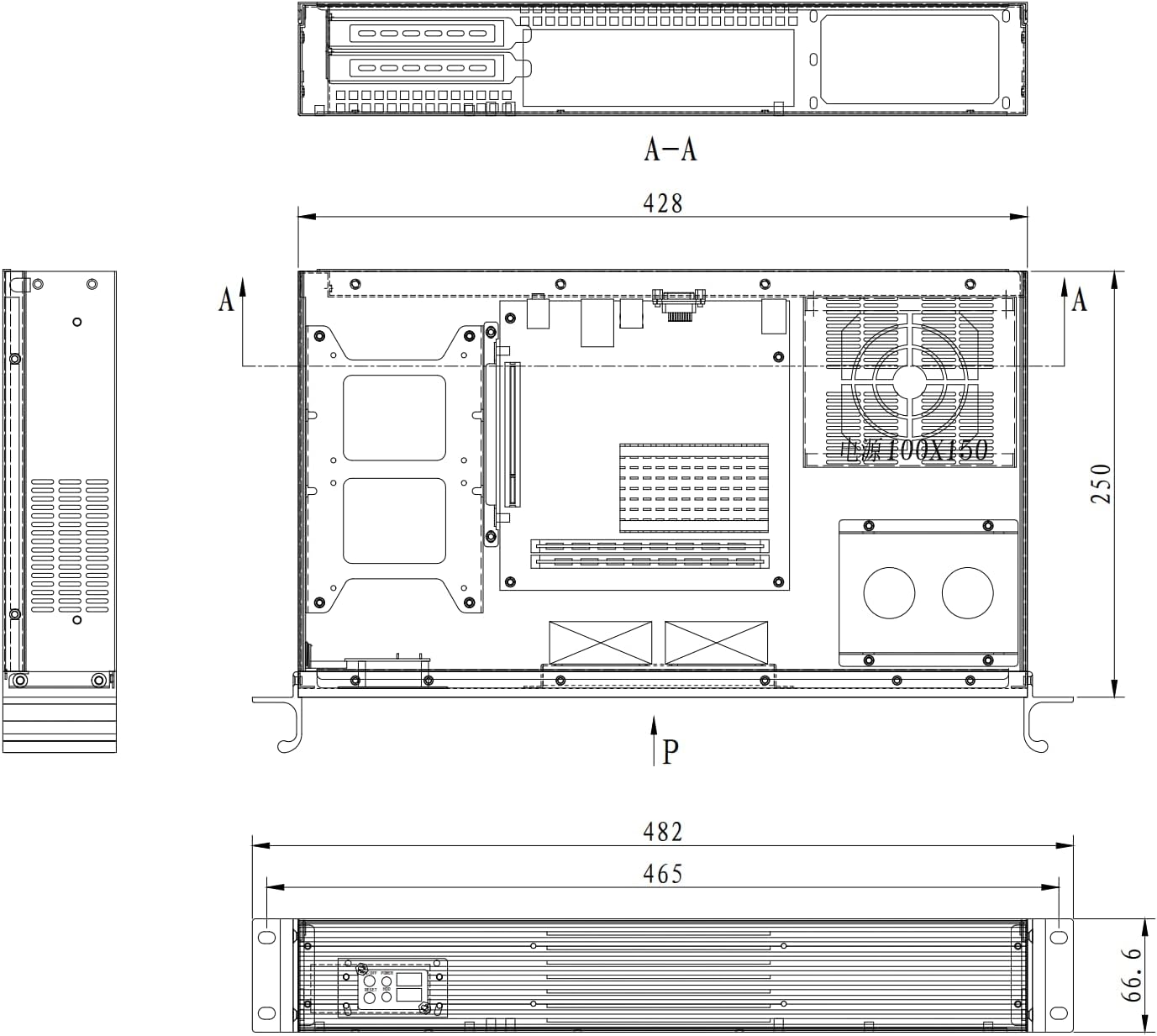

| Dimension (W*H*D) | 19" x 2.63" x 9.84"/ 482 x 66.7 x 250 (mm) |
| Motherboard Size | 6.7" x 6.7" (Mini ITX) |
| Drive Bays | 1 x 3.5 Hotswap + 2 x 2.5" (int.) |
| Indicators | LEDs for Power & HDD |
| Switches | 1 x Power +1 x Reset |
| PSU Type | SFX Power Supply |

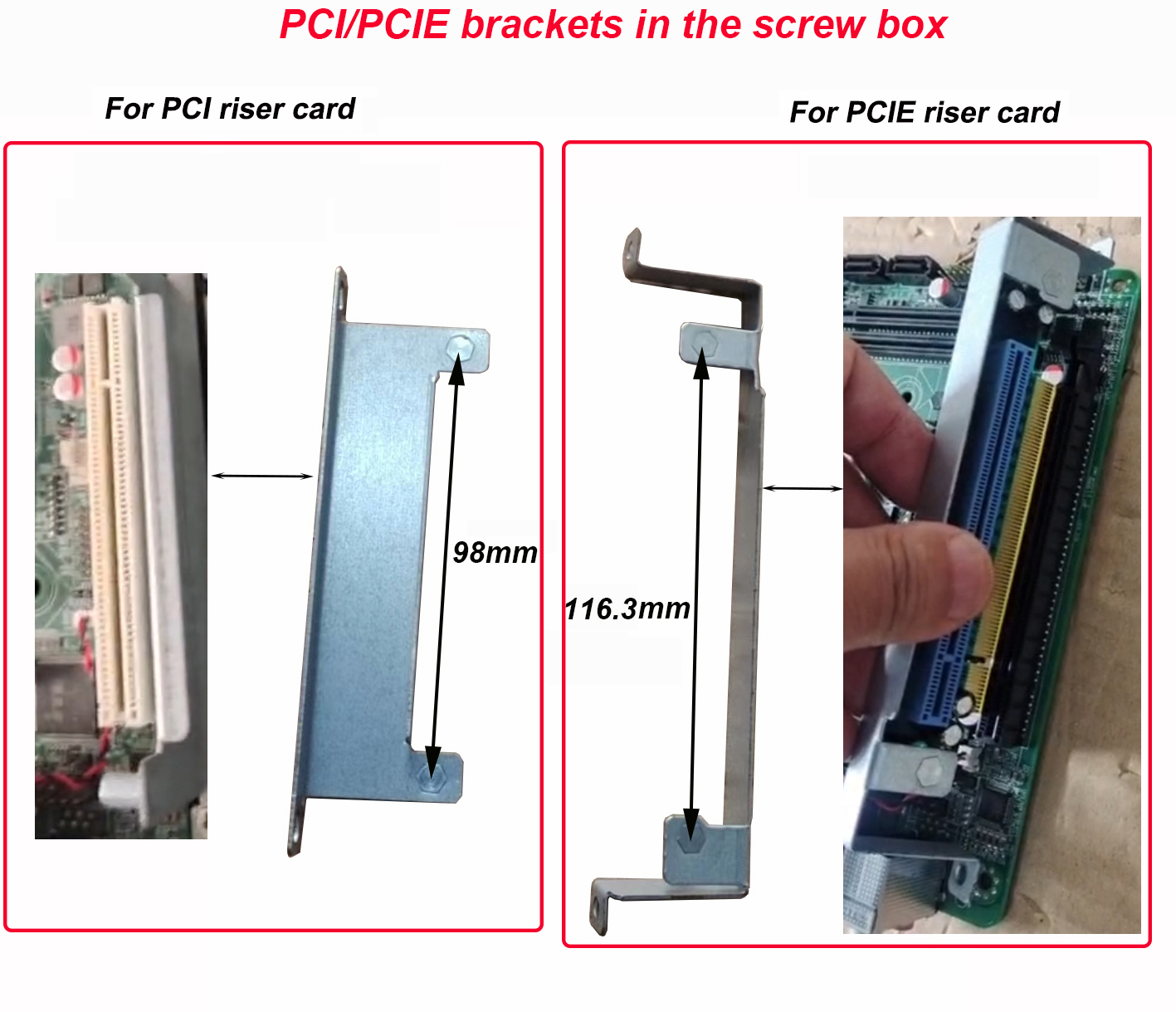

| Expansion Slots | 2 x PCI slot for riser card |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material Construction | Heavy-duty & Rugged SGCC steel 1.0mm |
| Sliding rail | 18" ball bearing sliding rail (option) |
| Color of Main Chassis | Black |
| Front Connector | 2 x 2.0 USB or 3.0USB |
| Fan: | 2 x 6cm fan |
| Packing size CBF / CBM | 1.8 / 0.05 |
| Packing N.W / G.W | 4.5KGS / 5.5KGS |
| Notes |
-
