Rackmount-chassis-Server-case-microATX-2U-N240L-USB3.0
2U Compact Rackmount microATX Chassis ATX Power Supply Compatible

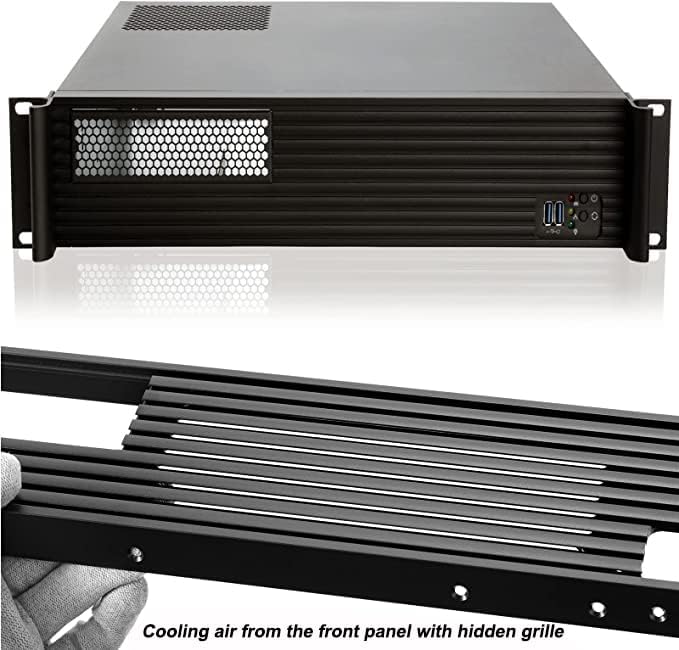

Introduction KI-N240L-USB3.0 is a reliable and stable 2U-high industrial computer chassis. 1x CDROM space for wide range application, like fan control+4x3.5" HDD, The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core CPU and the backplane supports 4 low profile add-on cards. it is only 15.7" deep, has two intake 80mm cooling fans at front for air ventilation. In addition, it supports a standard ATX power supply with any fan type (12cm or 8cm both OK) |
| Model Number | KI-N240L-USB3.0 |

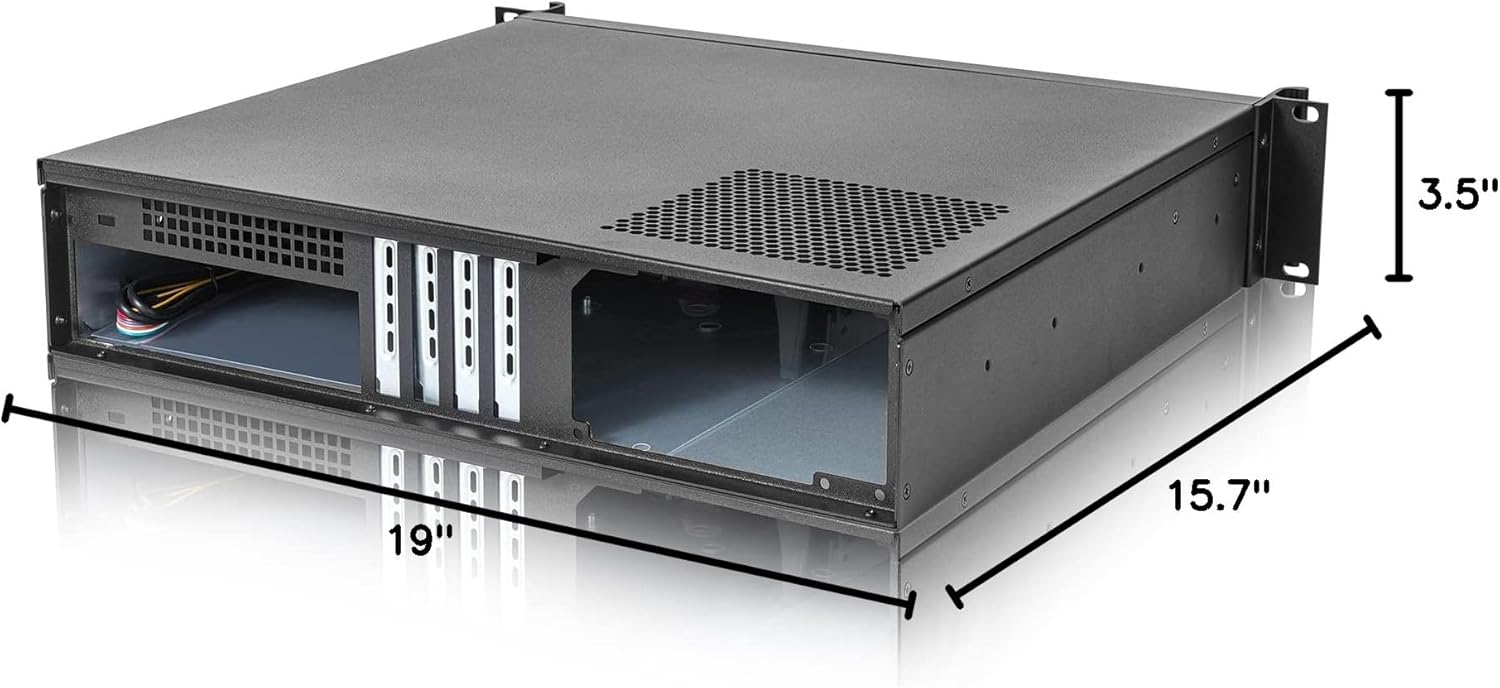

| Dimension (W*H*D) | 19" x 2U x 15.7"/ 482 x 88 x 400 (mm) |
| Motherboard Size | 9.6" x 9.6" (Micro ATX or Mini ITX) |

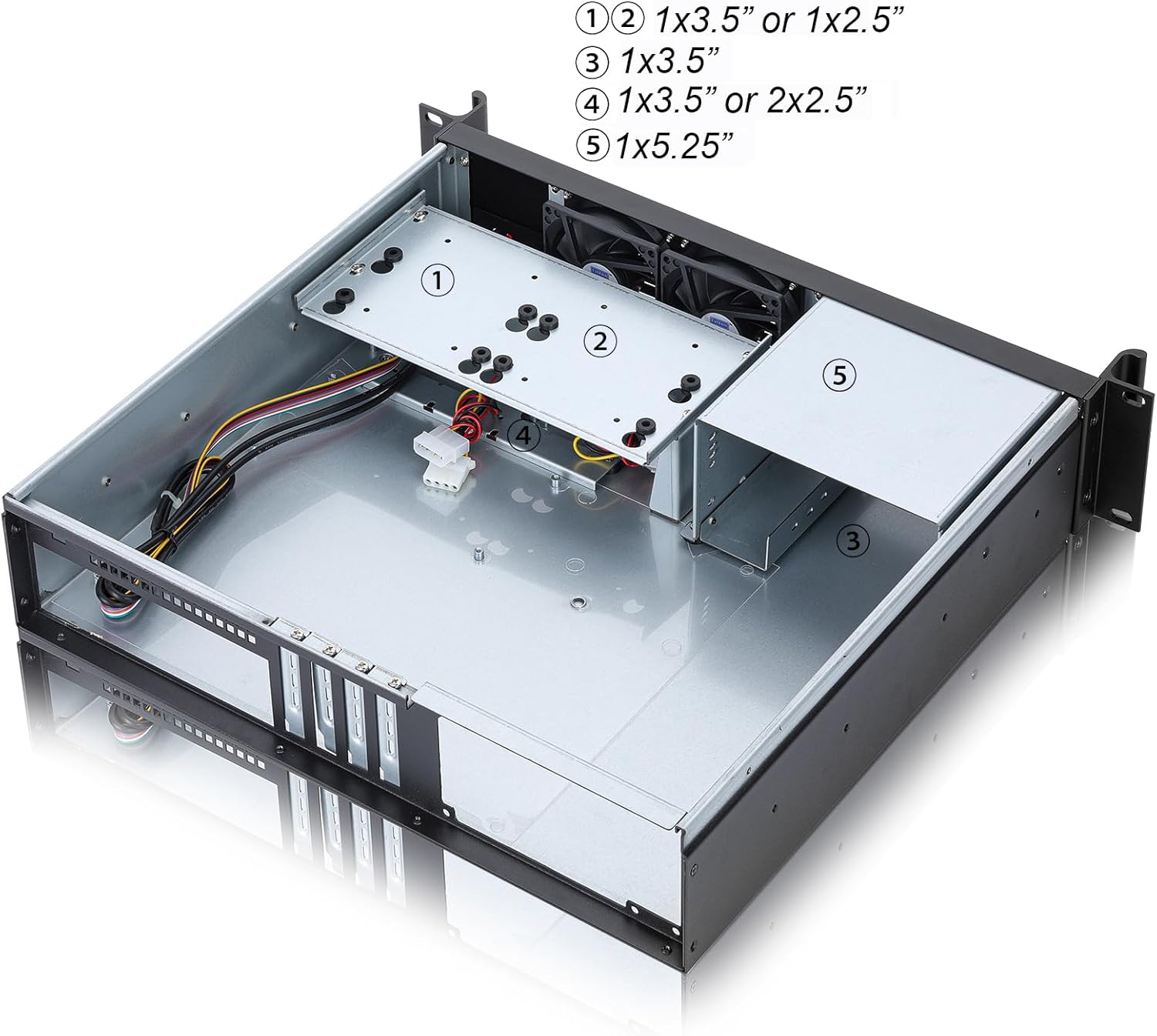

| Drive Bays | 1 x 5.25" + 4 x 3.5" (int.) |
| Indicators | LEDs for Power & HDD |
| Switches | 1 x Power +1 x Reset |
| PSU Type | Wide range PS-2 PSU which with12cm or 8cm fan both OK Support obverse or reverse installation |
| Expansion Slots | 4 (low profile) |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material Construction | Heavy-duty & Rugged steel 1.2mm |
| Sliding rail | 18" ball bearing sliding rail (option) |
| Color of Main Chassis | Black |
| Front Connector | 2 x 3.0 USB (with 2.0 adaptor) |
| Optional Fan: | 2 x 8cm two ball bearing |
| Packing size CBF / CBM | 2.3 / 0.065 |
| Packing N.W / G.W | 5.5KGS / 6.5KGS |
| Notes |
