Rackmount chassis Server case 19 inch EATX 2U universal rear panel N238A

Drives 2 * 3.5" (int.)

Motherboard Size12“ * 13” (EATX, ATX, micro ATX)

Dimension19.00 * 3.5 * 15 inches / 482 * 133.3 * 380 (mm)



2U Compact Rackmount EATX Chassis support 1U single power supply

  • Industrial compact chassis with 15.00" depth
  • Supports standard 1U single PSU
  • 2 x front access USB 2.0 or 3.0 ports

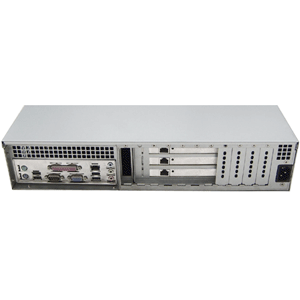

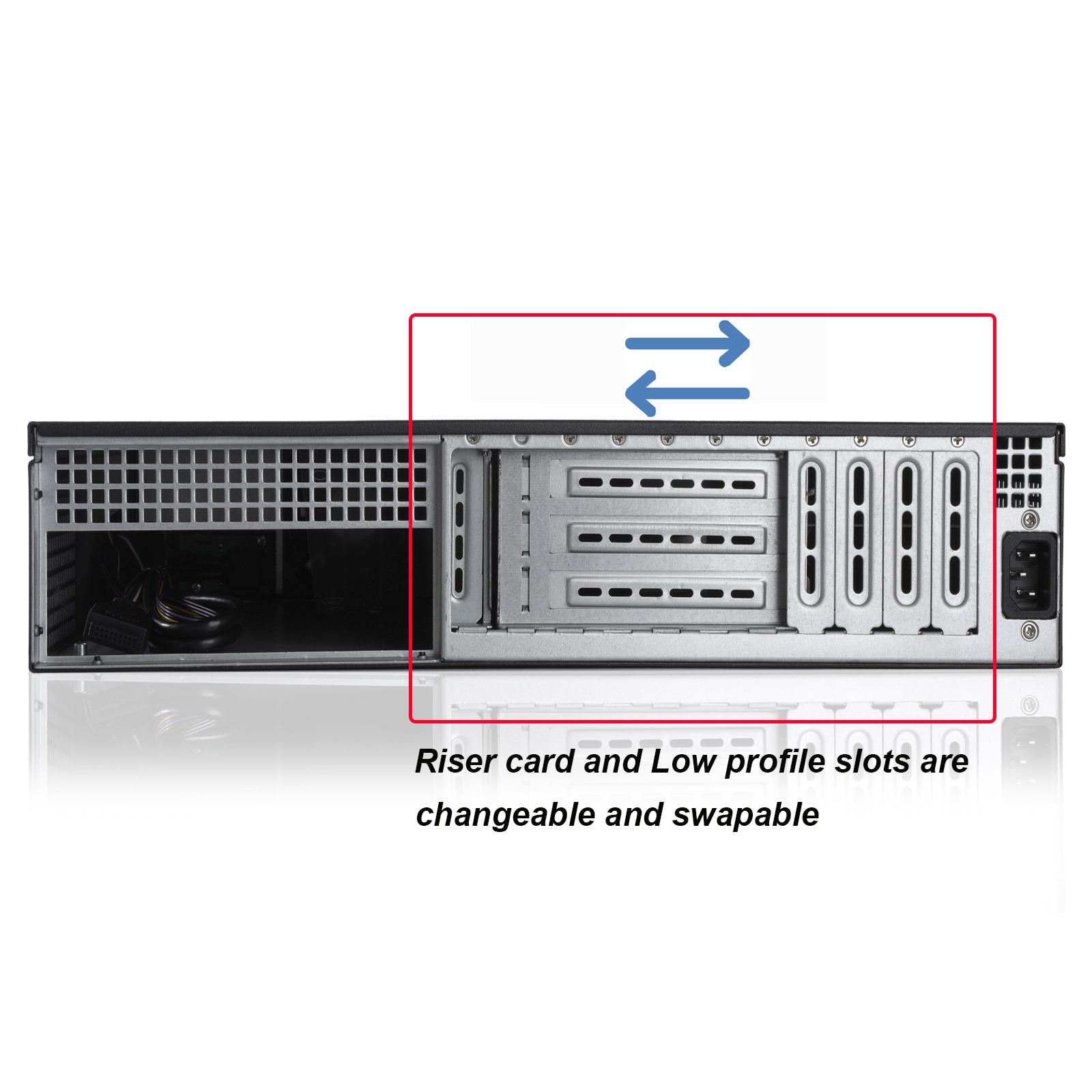

  • Unique design rear window support Riser card & low-profile add on card together

  • The most economic 2U chassis support EATX M/B and two 3.5" bay  Datasheet  Drawing  PSU-bracket

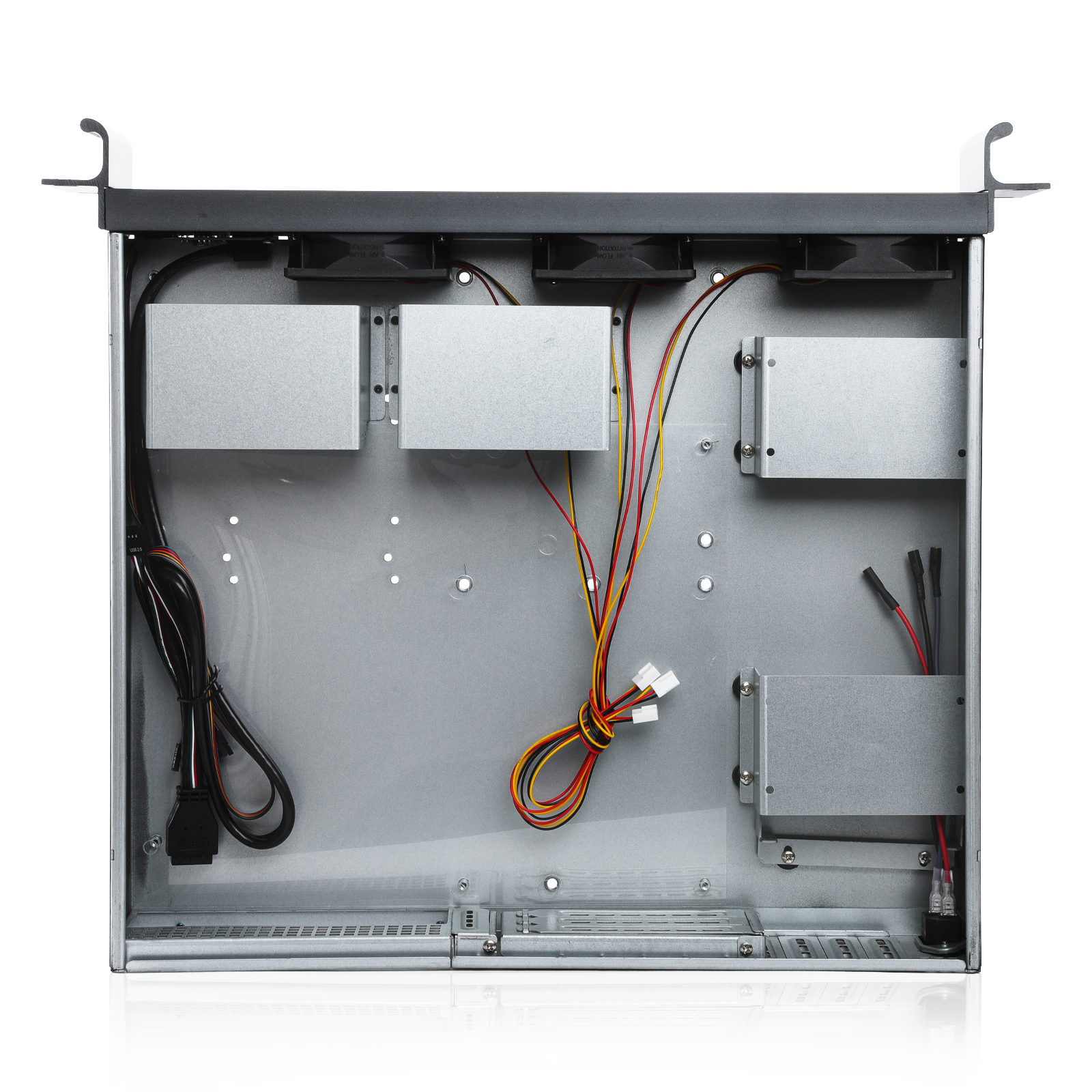

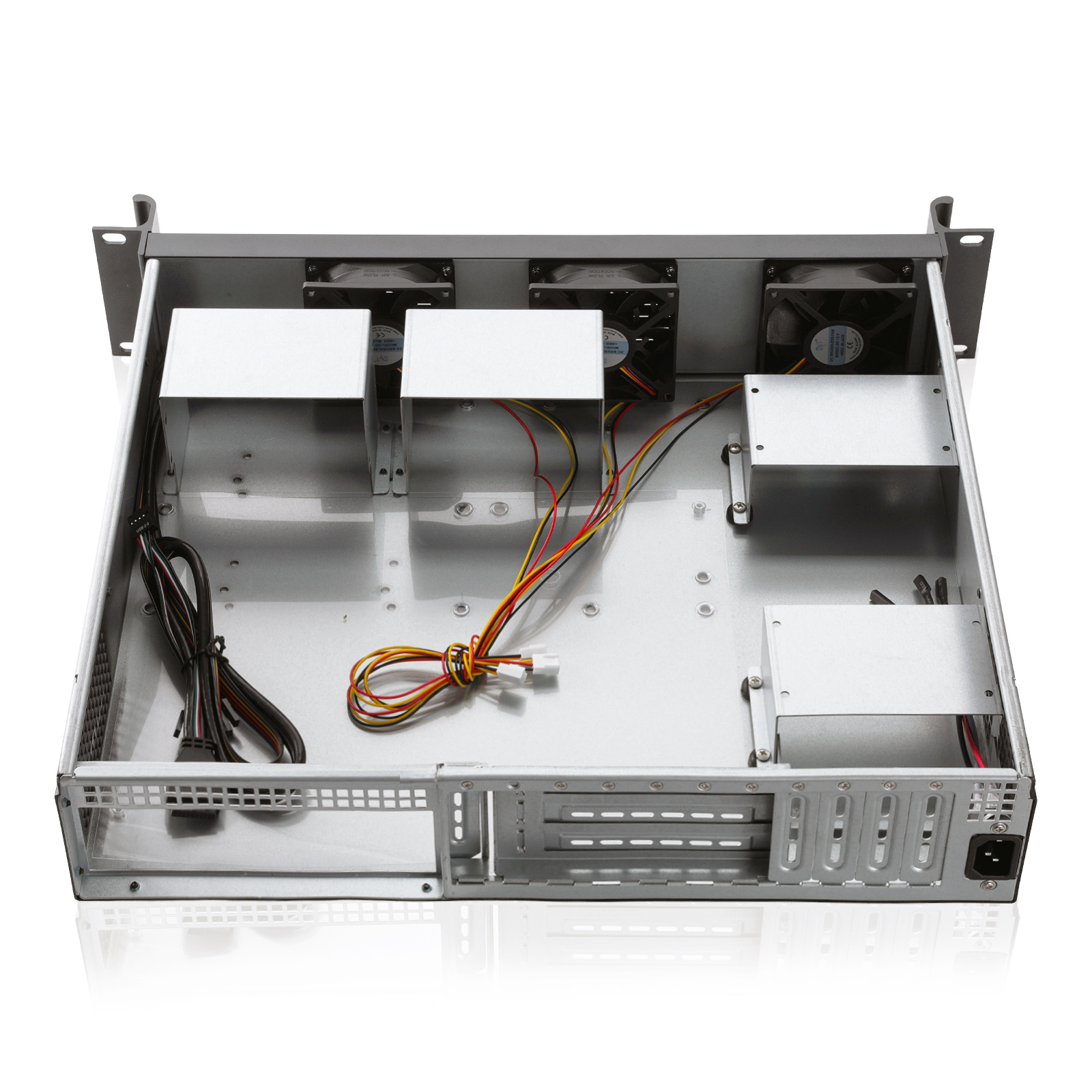

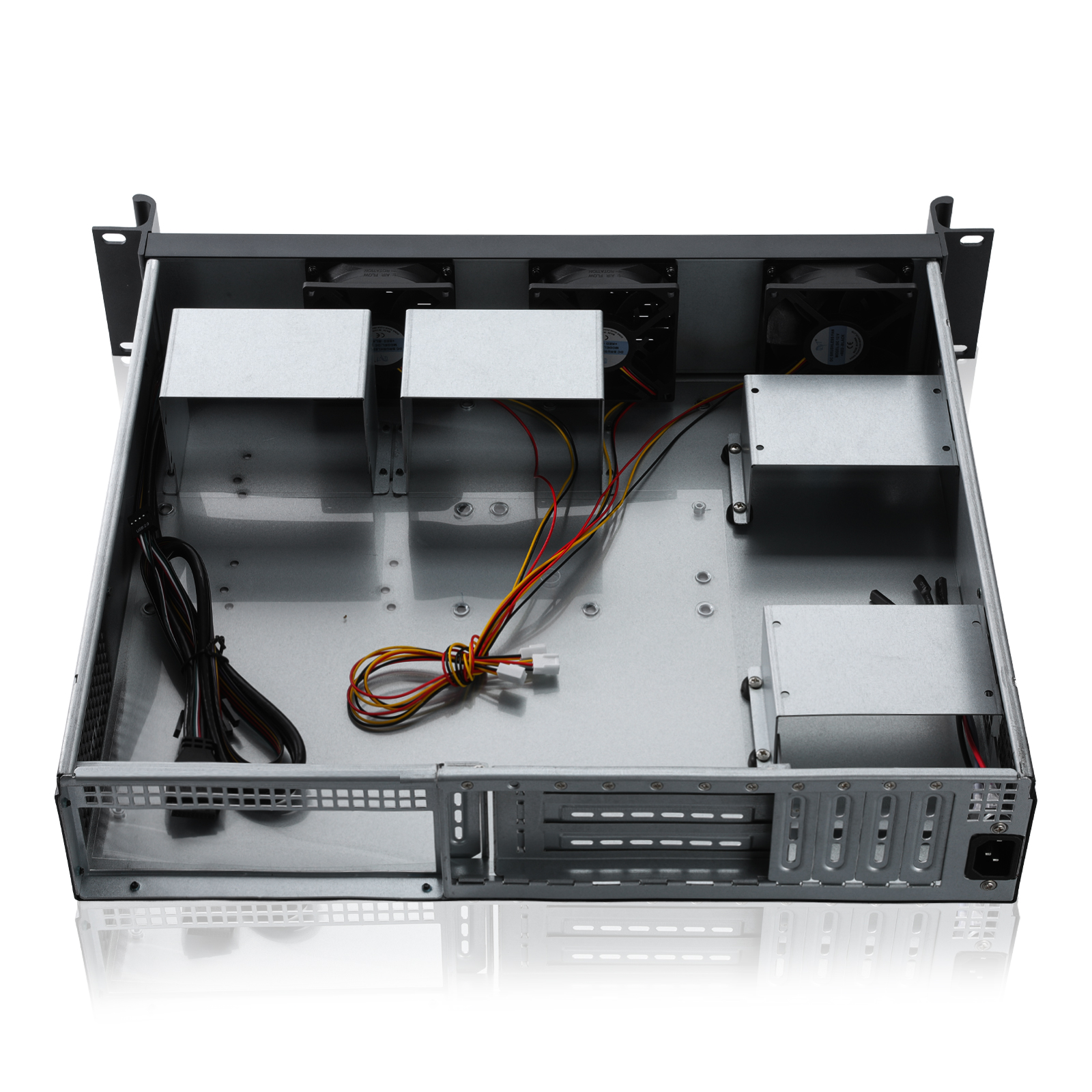

KI-N238A is a reliable and stable 2U-high industrial computer chassis.

The full size I/O supports all EATX motherboard, the KI-N238A support

Both 3 x full height and low profile add-on cards include

PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or

cluster maximum flexibility and performance. it is only 15.00" deep, has  three  intake 80mm cooling fans at front for air ventilation.

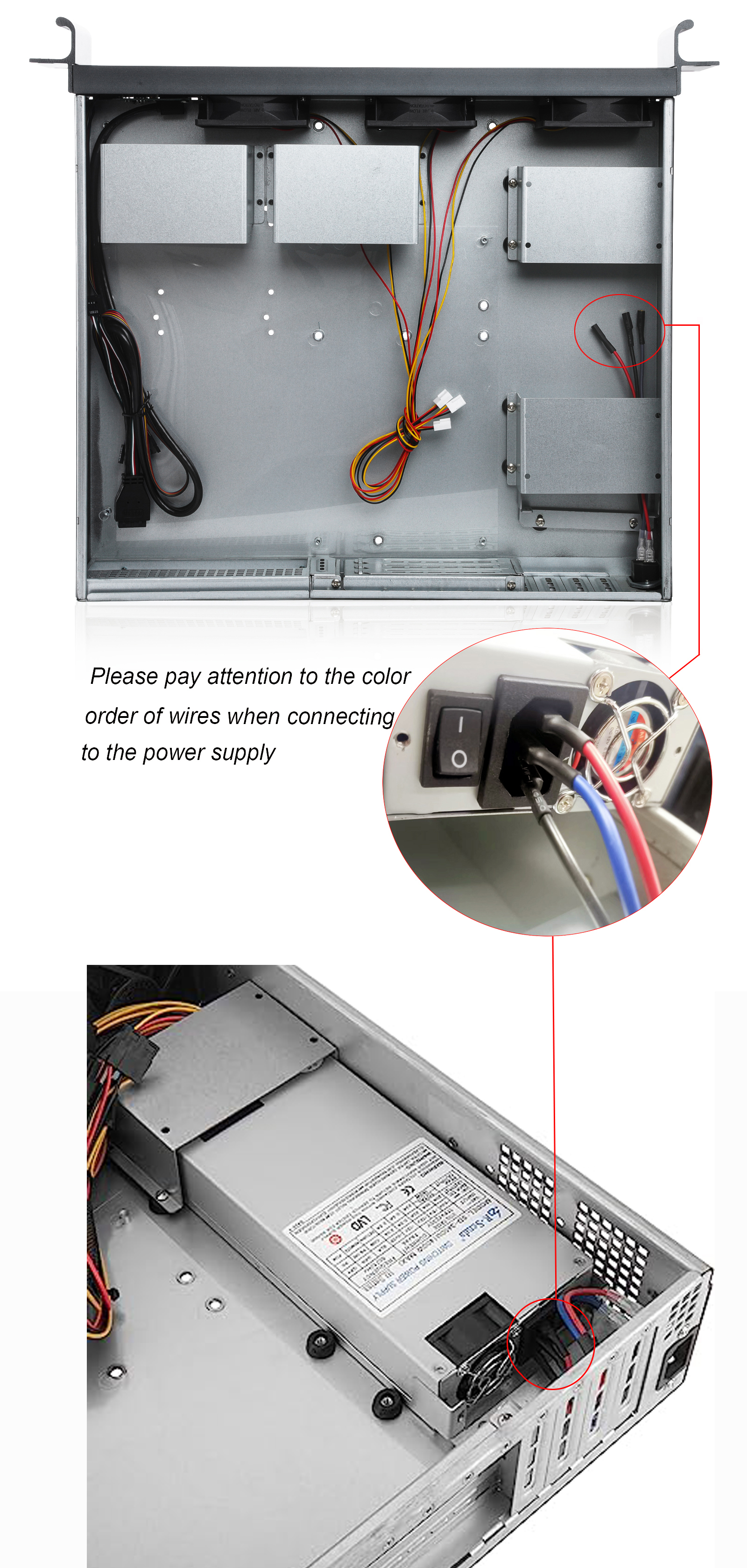

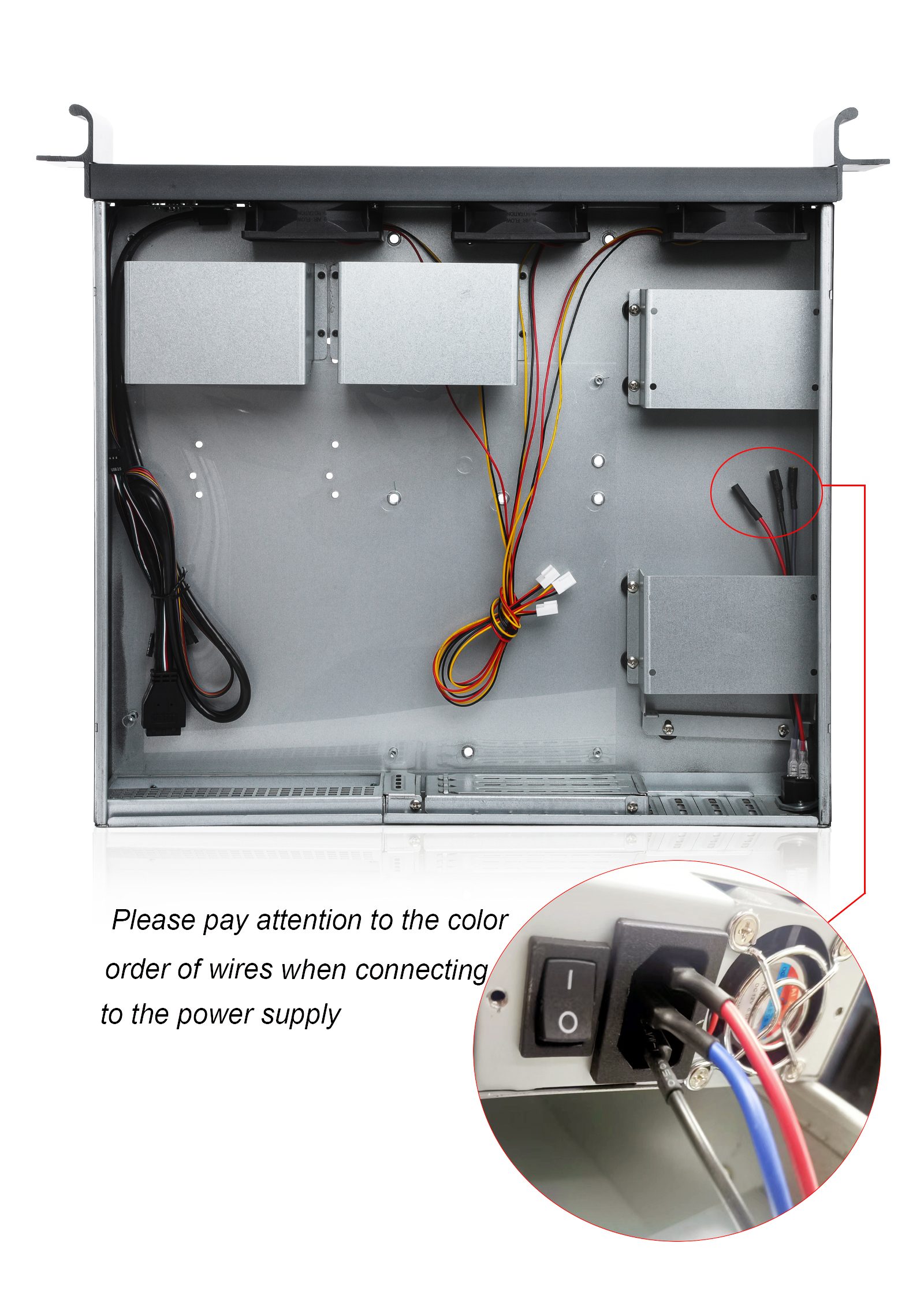

In addition, it supports 1U single power supply

Model Number           KI-N238A
Dimension (W*H*D) 19" x 3.5" x 15"/ 482 x 89 x 380 (mm)
Motherboard Size 12" x 13" (EATX, ATX,Micro ATX )
Drive Bays 2 x 3.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type 1U single power supply (two screw hole wide=90mm)
Expansion Slots  Unique window support Riser card & low-profile add   on card together
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction Heavy-duty & Rugged steel 1.2mm
Sliding rail18" ball bearing sliding rail (option)
Color of Main Chassis Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 3 x 8cm intake
Packing size CBF / CBM 2.0/ 0.056
Packing N.W / G.W 4.5KGS / 5.5KGS
