Rackmount chassis Server case 19 inch microATX 2U N235

Drives2 * 3.5" or Max 5 * SSD (can mix)

Motherboard Size9.6 * 9.6 (microATX, mini-ITX)

Dimension2 * 3.5" or Max 5 * SSD (can mix)



2U ultra Compact Rackmount microATX Chassis support ATX Power Supply

  • Supports standard ATX power supplies
  • 2 x front access USB 2.0 or 3.0 ports
  • Supports 4x low-profile add-on cards
  • The most economic micro ATX 2U chassis with two 3.5" bay

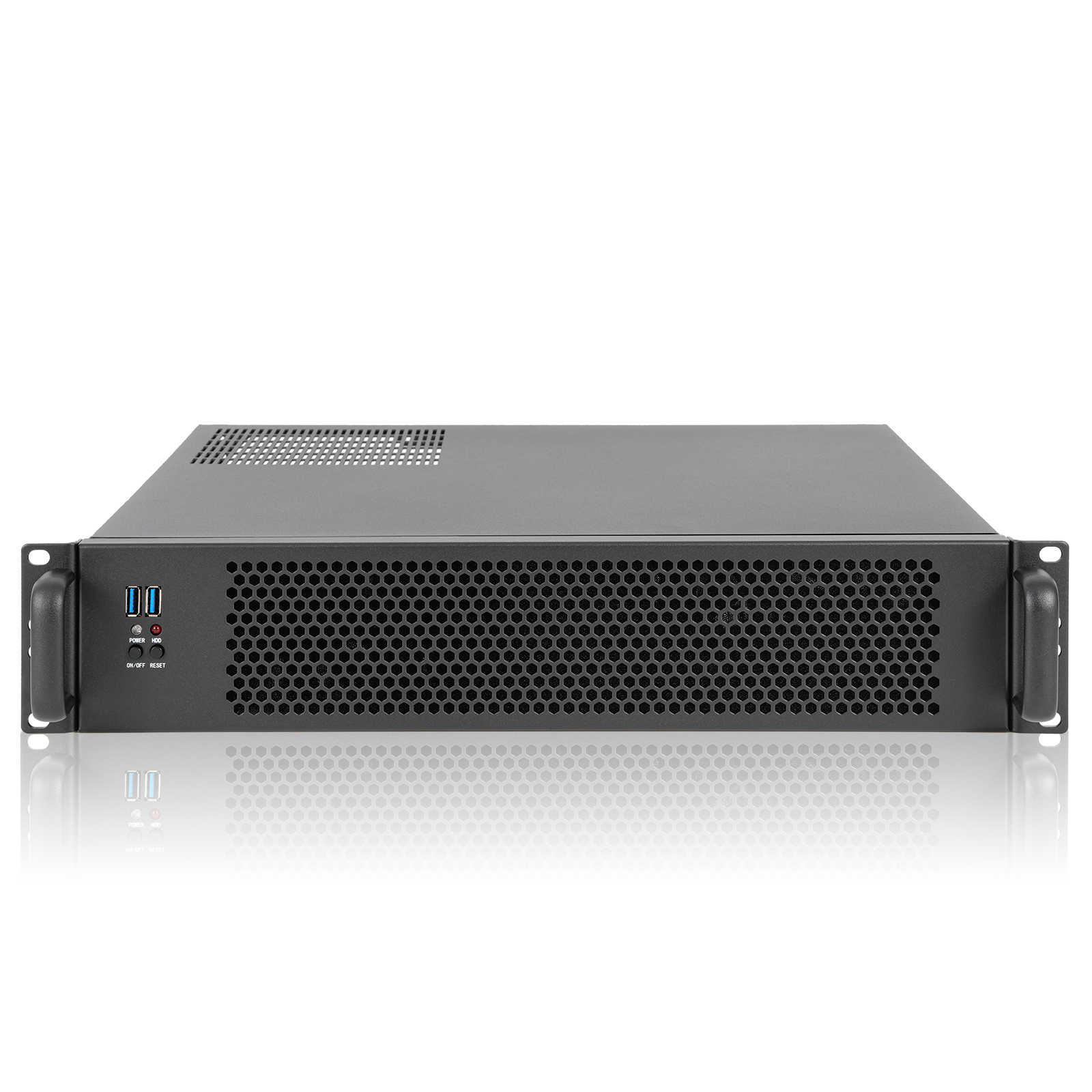

  • Two type stylish aluminum front panel for option.
  •  Datasheet&drawing


KI-N235M is a reliable and stable 2U-high industrial computer chassis.The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core CPU and the backplane supports 4 low profile add-on cards. it is only 13.78" (350mm) deep, has  two intake 80mm cooling fans at front for air ventilation.

In addition, it supports a standard ATX power supply.

Model Number           KI-N235M
Dimension (W*H*D) 19" x 3.5" x 13.78"/ 482 x 88 x 350 (mm)
Motherboard Size 9.6" x 9.6" (Micro ATX or Mini ITX)

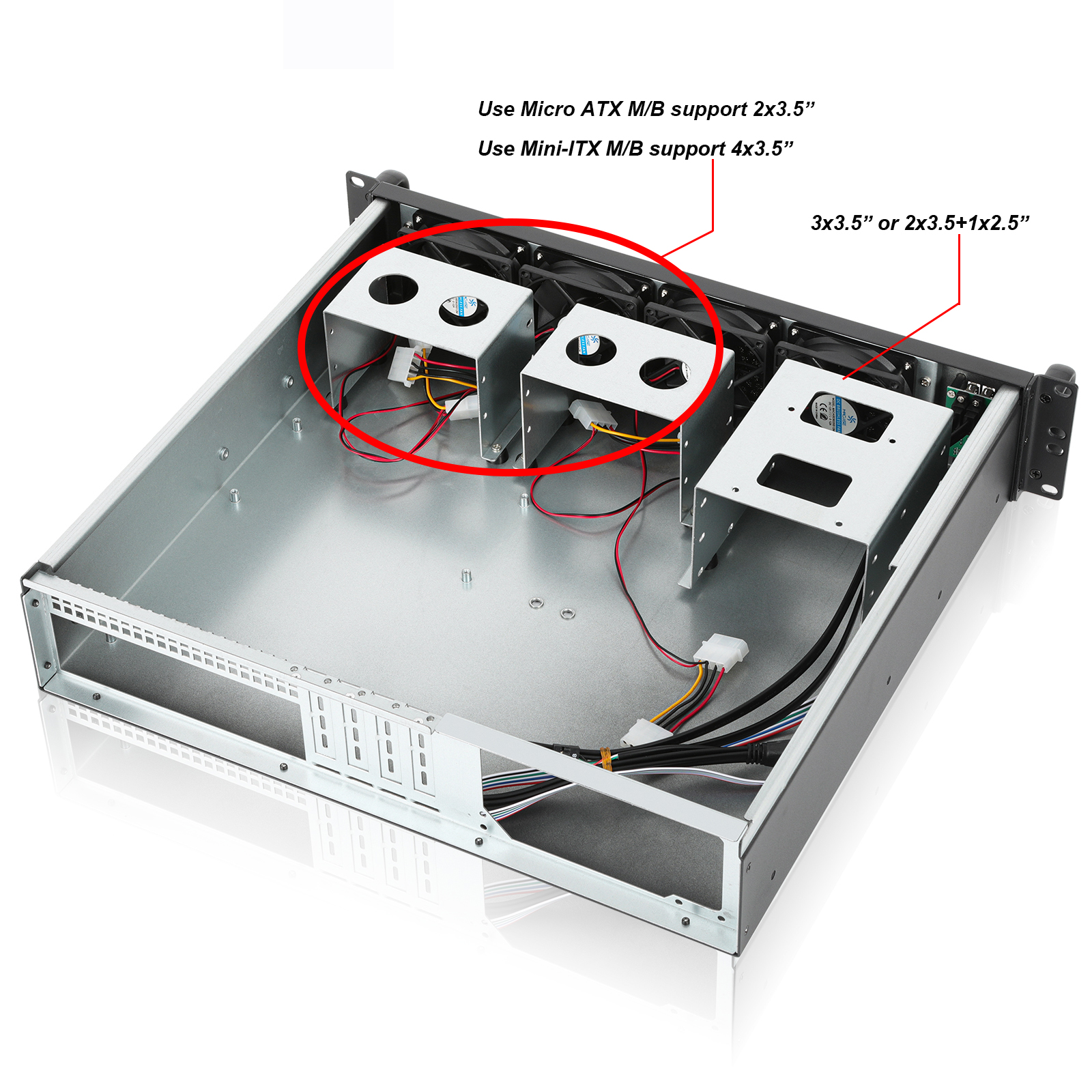

Drive Bays 2 x 3.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type  Regular ATX PS-2 PSU

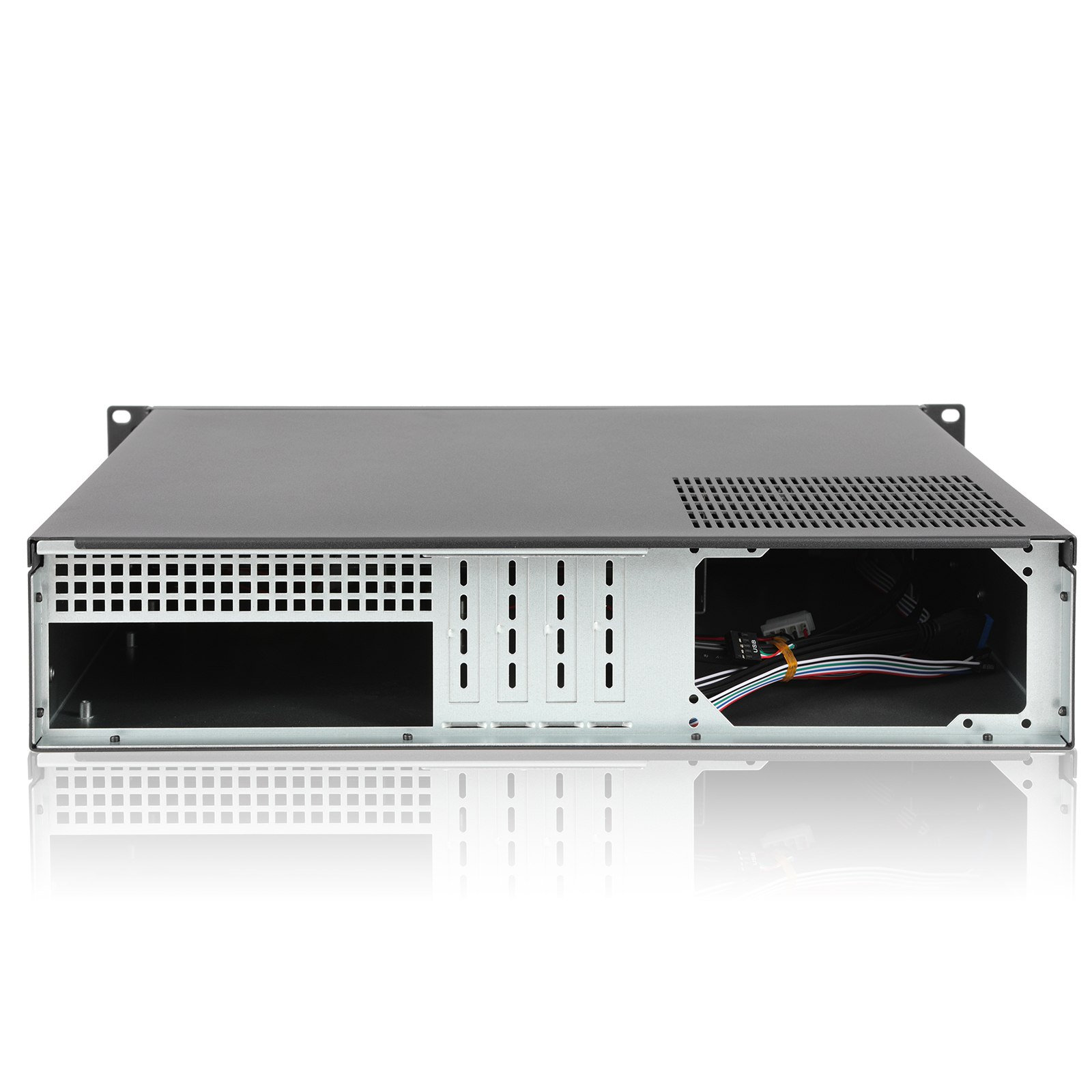

Expansion Slots 4 (low profile)
Material of Front Bezel   Aluminum
Material of Handle Aluminum
Material Construction  Heavy-duty & Rugged steel 1.0mm
Sliding rail 18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Cooling fan : 2 x 8cm
Packing size CBF / CBM 1.8 / 0.05
Packing N.W / G.W 4.5KGS / 5.5KGS
NotesModel KI-N235M or KI-N235M-1 means different aluminum front panel
