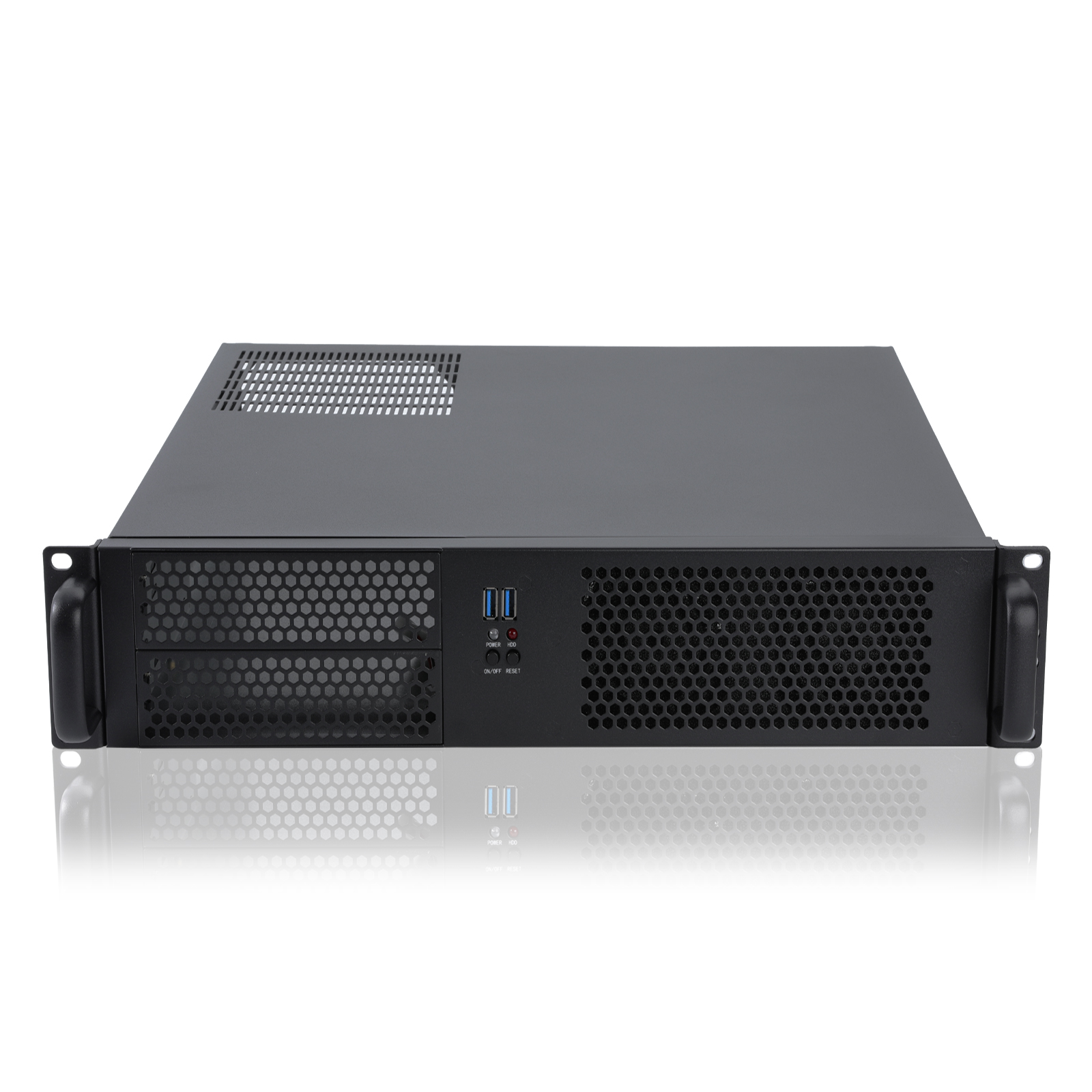

Rackmount chassis Server case 19 inch microATX 2U N245


Motherboard Size




2U Rackmount 9 x 3.5 HDD microATX Chassis support ATX Power Supply

  • Industrial compact chassis with 17.7" depth
  • Supports standard ATX power supplies
  • 2 x front access USB 2.0 or 3.0 ports
  • The most economic 2U microATX chassis with 9 x 3.5" bay
  • Drawing


KI-N245 is a reliable and stable 2U-high industrial computer chassis.

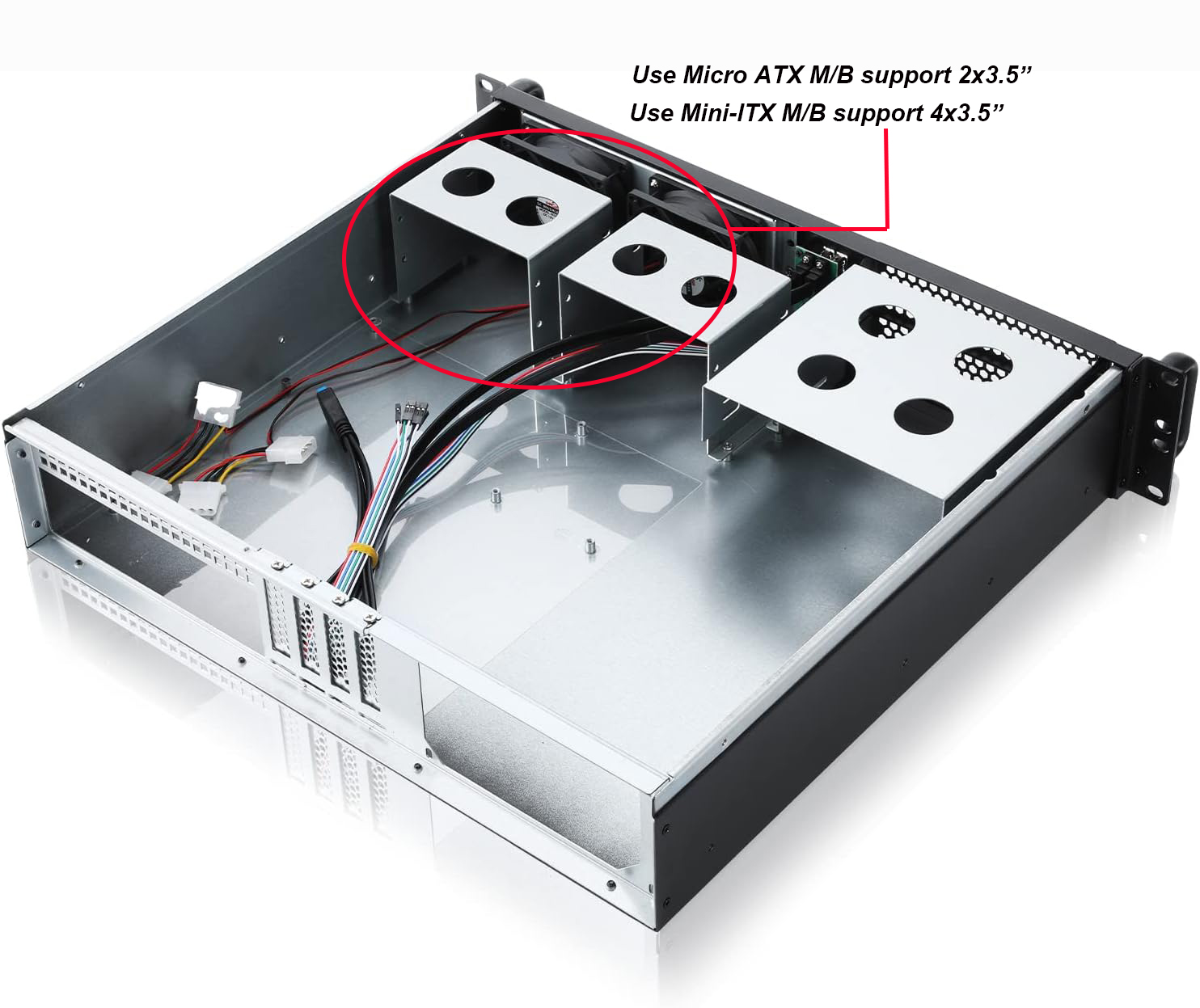

It support 9 x 3.5" HDD for max storage The full size I/O supports

all microATX motherboard with a Dual-core/ Quad-Core CPU and

the backplane supports 4 low profile add-on

cards. it is 17.7" deep, has three intake 80mm cooling fans at front for air ventilation.

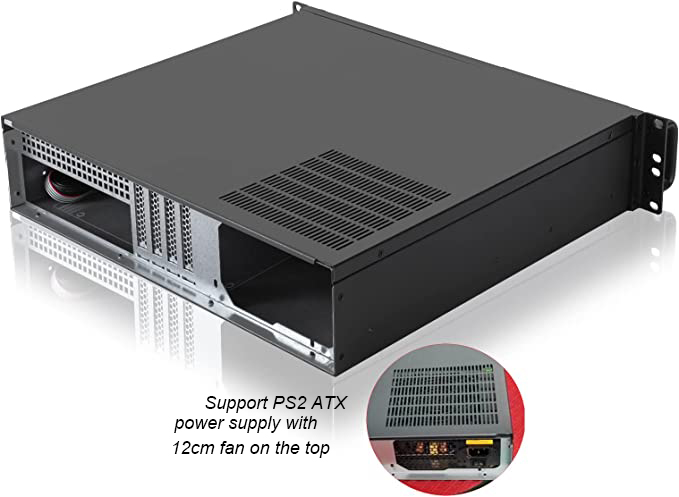

In addition, it supports a standard ATX power supply

Model Number           KI-N245
Dimension (W*H*D) 19" x 3.5" x 17.7"/ 482 x 89 x 450 (mm)
Motherboard Size 9.6" x 9.6" (Micro ATX or Mini ITX)
Drive Bays 9 x 3.5" (int.) or 6 x 3.5"+3 x 2.5" (int.)
Indicators LEDs for Power & HDD
Switches 1 x Power +1 x Reset
PSU Type Regular PS2 ATX PSU
Expansion Slots  4 (low profile)
Material of Front Bezel  Aluminum
Material of Handle Aluminum
Material Construction  Heavy-duty & Rugged steel 1.0mm
Sliding rail 18" ball bearing sliding rail (option)
Color of Main Chassis  Black
Front Connector 2 x 2.0 USB (option USB3.0)
Fan: 3 x 8cm intake
Packing size CBF / CBM 2.5 / 0.07
Packing N.W / G.W 6.5KGS / 7.5KGS
