Rackmount chassis Server case 19 inch ATX microATX 2U universal rear panel N2055

Drives 2*5.25+6*3.5"(Int.)

Motherboard Size12 * 9.6 (ATX, microATX )

Dimension 2*5.25+6*3.5"(Int.)

Inquiry

DESCRIPTION

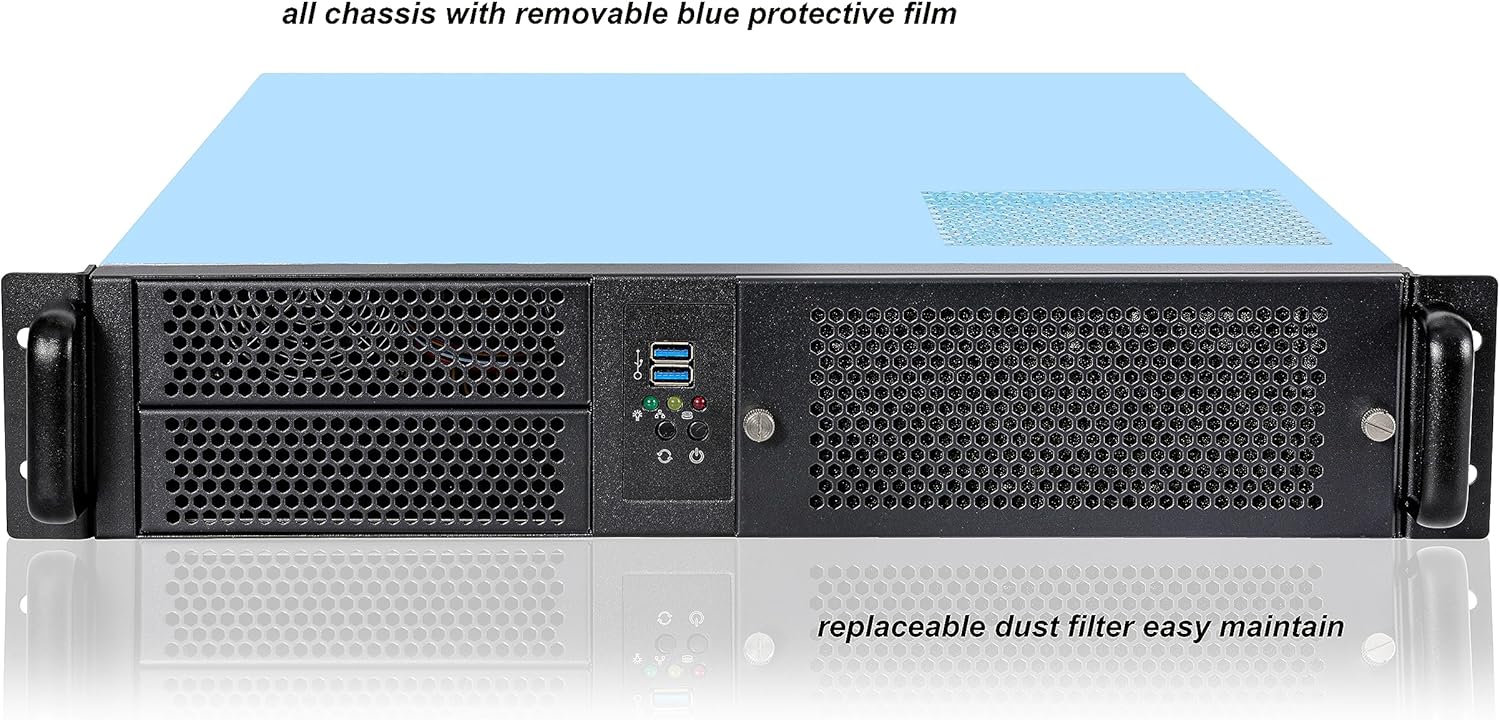

2U Compact Rackmount ATX Chassis ATX Power Supply Compatible

Introduction

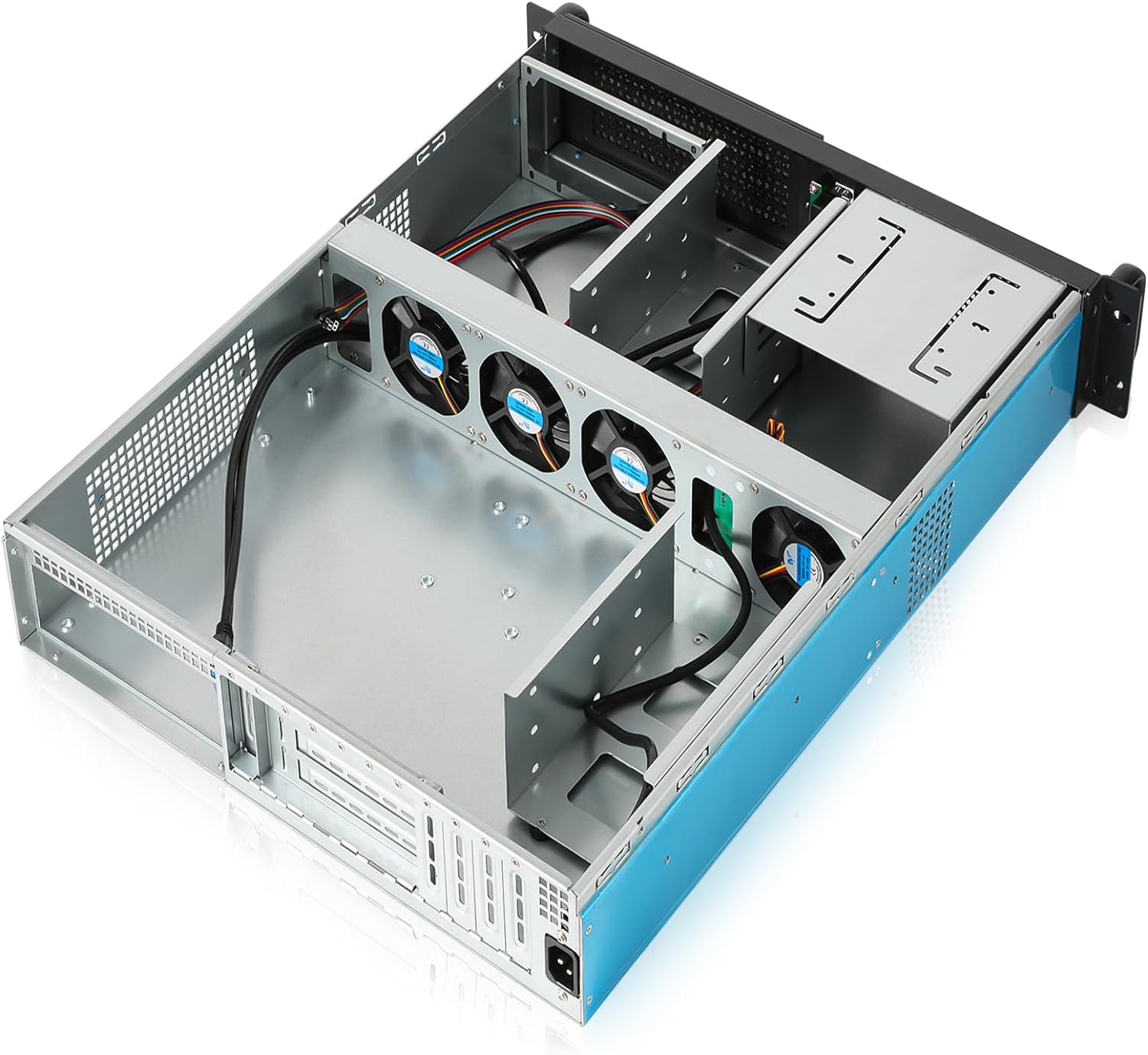

The KI-N2055 is a compact 2U ATX chassis, the KI-N2055 has 4 x 8cm cooling fans

that create positive air pressure within the case.

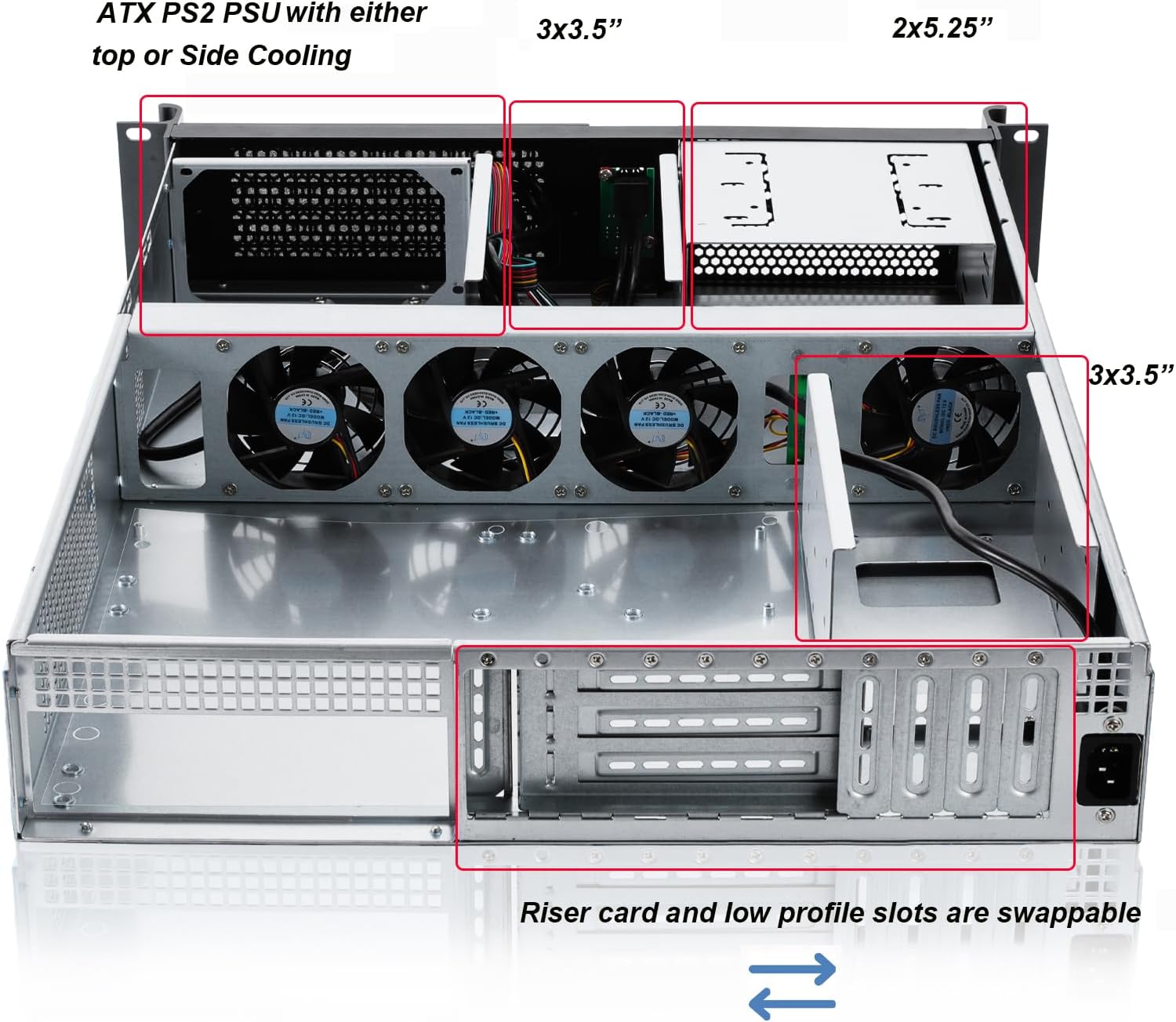

There are 2 x 5.25" exposed and 6 internal 3.5" hard drive bays. The compact size,

and cooling make the it as an excellent choice. The universal rear window could use

Riser card and low-profile add on card together datasheet & drawing

Model Number	KI-N2055

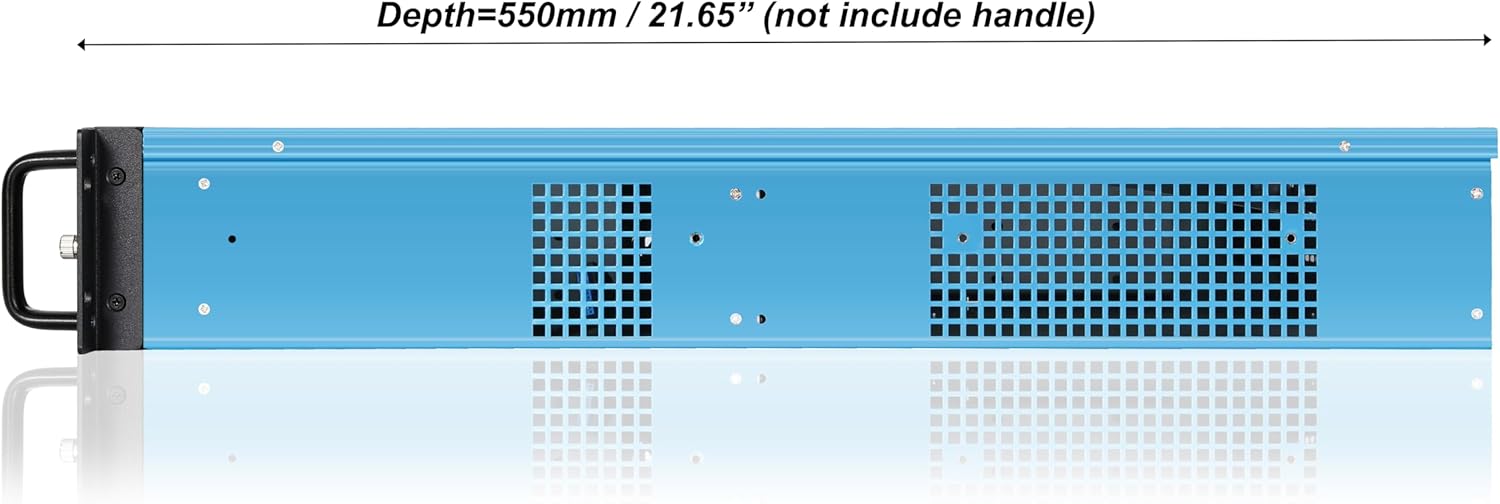

Dimension (WHD)	19" x 2U x 21.65"/ 482 x 89 x 550 (mm)
Motherboard Size	12" x 9.6" (ATX,Micro ATX or Mini ITX)
Drive Bays	2 x 5.25" + 6 x 3.5" (int.)
Indicators	LEDs for Power & HDD
Switches	1 x Power +1 x Reset
PSU Type	PS-2 ATX PSU
Expansion Slots	The universal backplane could use Riser card and low-profile add on card together
Material of Front Bezel	Heavy-duty & Rugged steel SPCC 1.2mm
Material of Handle	Plastic
Material Construction	Heavy-duty & Rugged steel SGCC 1.2mm
Sliding rail	18" or 26 ball bearing sliding rail (option)
Color of Main Chassis	Black
Front Connector	2 x 2.0 USB (option USB3.0)
Cooling Fan:	4 x 8cm fan wall at middle with finger guard
Packing size CBF / CBM	2.6 / 0.073
Packing N.W / G.W	8.0KGS / 9.5KGS
Air filter	Removable and washable
